GX120 K1 KRS6 (GC01) - Honda Engine, Made in Japan (SN: GC01-4300001 - GC01-9099999) CONTROL (4) Parts Diagram

Engine, Made in Japan

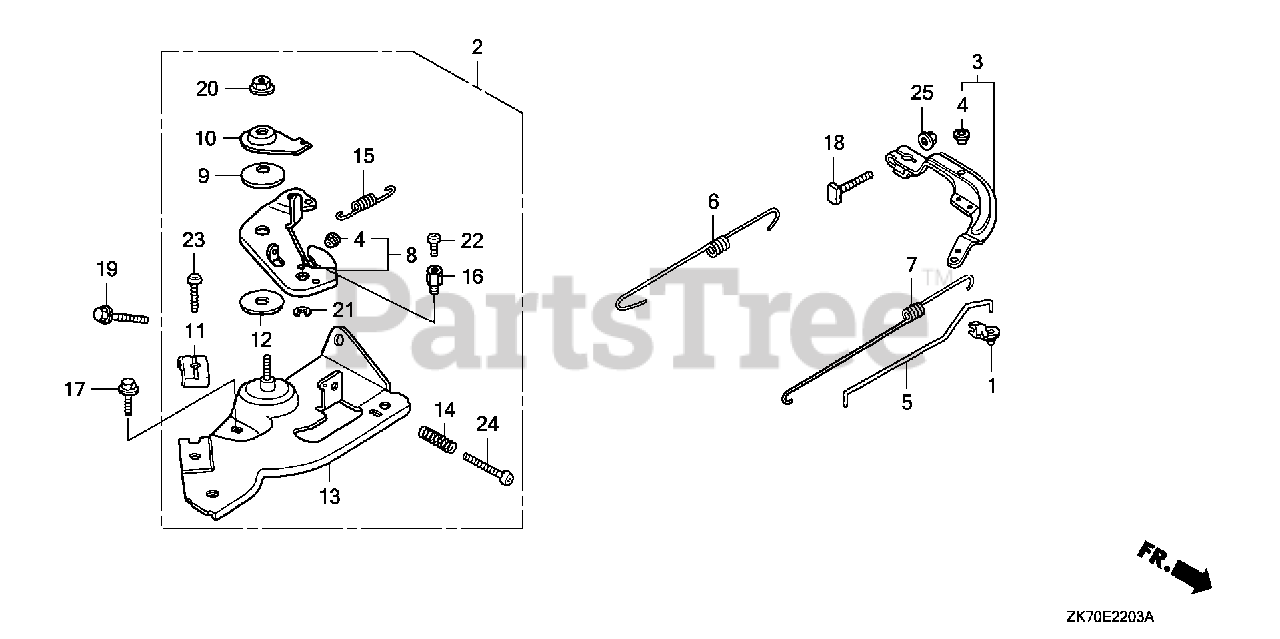

CONTROL (4) Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

$1.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZK7-S50

CONTROL ASSY.

$82.99

$

Usually ships in 3-6 days

0

3

Honda 16550-ZK7-S50

ARM, GOVERNOR

$13.99

$

Usually ships in 3-6 days

0

4

Honda 16552-896-650

COLLAR, LEVER

$2.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZK7-S30

ROD, GOVERNOR

$2.99

$

In Stock, Qty 8

0

6

Honda 16561-ZK7-S50

SPRING, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

7

Honda 16562-ZE0-020

SPRING, THROTTLE RETURN

$4.49

$

In Stock, Qty 20+

0

8

Honda 16570-ZK7-S50

LEVER, CONTROL

$61.99

$

Usually ships in 3-6 days

0

9

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0

10

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

11

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

13

Honda 16580-ZH7-810

BASE, CONTROL

$19.99

$

Usually ships in 3-6 days

0

14

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

15

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

16

Honda 16594-883-010

HOLDER, WIRE

$8.99

$

In Stock, only 3 left!

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

18

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

19

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

20

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

21

Honda 90605-230-000

CIRCLIP (5MM)

$3.99

$

In Stock, only 3 left!

0

22

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 8

0

23

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

24

Honda 93500-05025-0H

SCREW, PAN (5X25)

$0.99

$

In Stock, only 4 left!

0

25

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
