GX120 K1 HX2/A (GC01) - Honda Engine, Made in Japan (SN: GC01-4300001 - GC01-9099999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

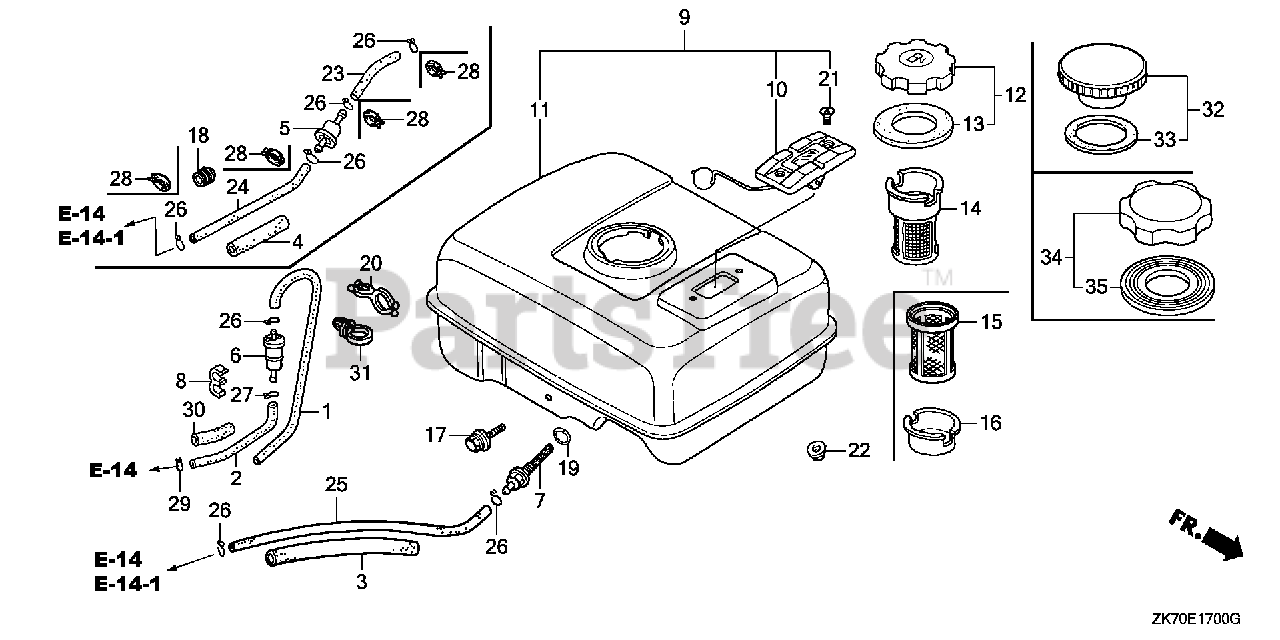

FUEL TANK (1) Parts Diagram

  • Title
3

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 14

0

7

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

11

Honda 17510-ZE0-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$49.99

$

In Stock, only 1 left!

0

11

Honda 17510-ZE0-020ZD

TANK, FUEL *NH1* (BLACK)

$223.99

$

Usually ships in 3-6 days

0

17

Honda 90004-ZH7-003

BOLT, FLANGE (6X29)

$1.49

$

In Stock, Qty 7

0

19

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

19

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, only 4 left!

0

26

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

34

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED) (TOYOSHA)

$

$

Not available

35

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

$3.49

$

Usually ships in 3-6 days

0
