GX120 K1 HT2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

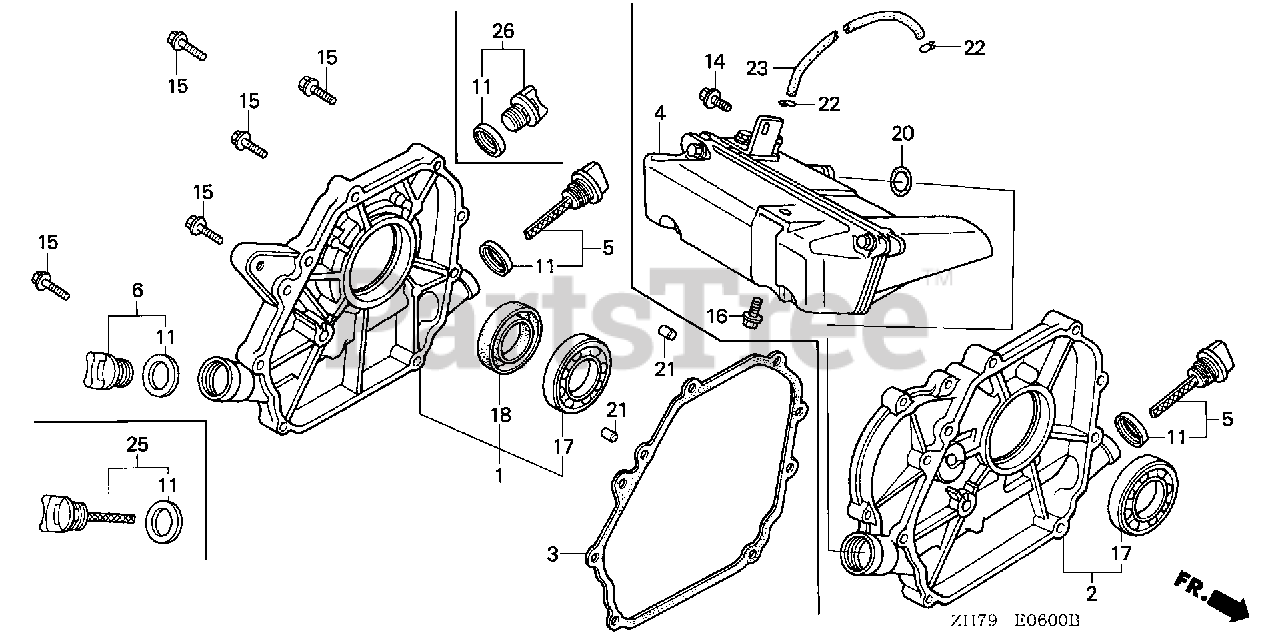

CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-ZE0-633

COVER ASSY., CRANKCASE (W-TYPE)
(Superseded to 11300-ZE0-634)

Note: (Honda Code 5350434).

$107.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZH7-800

GASKET, CASE COVER

Note: (Honda Code 3693488).

$9.99

$

In Stock, Qty 11

0

5

Honda 15600-ZE1-003

CAP ASSY., OIL FILLER
(Superseded to 15600-Z0T-810)

Note: (Honda Code 4500146).

$1.49

$

In Stock, Qty 7

0

6

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4497921).

$6.99

$

In Stock, only 1 left!

0

11

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

15

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

17

Honda 91001-878-003

BEARING, RADIAL BALL (62/22)

Note: (Honda Code 0442061).

$38.99

$

In Stock, only 2 left!

0

18

Honda 91203-ZE0-003

OIL SEAL (22X41X6)
(Superseded to 91203-ZE0-013)

Note: (Honda Code 1431352).

$10.99

$

In Stock, Qty 12

0

21

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0
