GX120 K1 HT2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CAMSHAFT Parts Diagram

Engine, Made in Japan

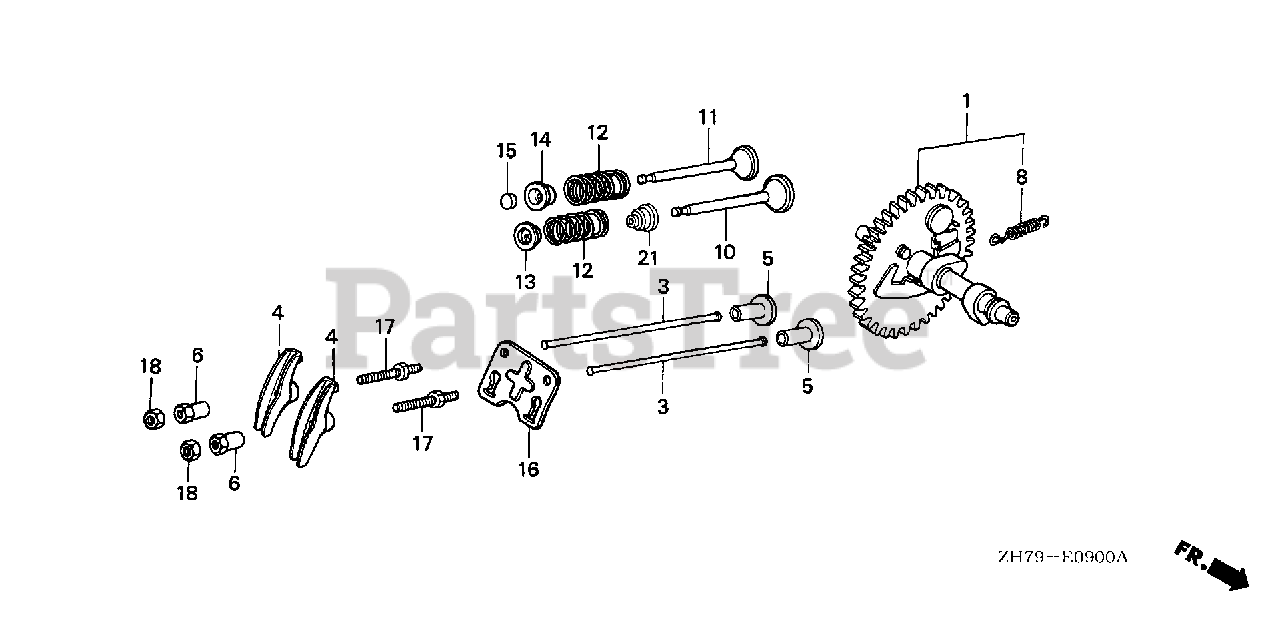

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE0-812

CAMSHAFT ASSY.

Note: (Honda Code 1929595).

$146.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE0-010

ROD, PUSH

Note: (Honda Code 3337854).

$9.49

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER

Note: (Honda Code 1426824).

$8.49

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-010

LIFTER, VALVE

Note: (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

Note: (Honda Code 4300901).

$6.49

$

In Stock, Qty 5

0

8

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

Note: (Honda Code 1426907).

$3.49

$

In Stock, only 1 left!

0

10

Honda 14711-ZF0-010

VALVE, IN.

Note: (Honda Code 6839880).

$22.99

$

Usually ships in 3-6 days

0

11

Honda 14721-ZF0-000

VALVE, EX.

Note: (Honda Code 3694015).

$62.99

$

Usually ships in 3-6 days

0

12

Honda 14751-ZF1-000

SPRING, VALVE

Note: (Honda Code 3683489).

$4.99

$

In Stock, only 2 left!

0

13

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

Note: (Honda Code 1426980).

$1.49

$

In Stock, Qty 14

0

14

Honda 14773-ZE1-000

RETAINER, EX. VALVE SPRING

Note: (Honda Code 1426998).

$10.99

$

In Stock, only 1 left!

0

15

Honda 14781-ZE1-000

ROTATOR, VALVE

Note: (Honda Code 1427004).

$6.49

$

In Stock, Qty 11

0

16

Honda 14791-ZE0-010

PLATE, PUSH ROD GUIDE

Note: (Honda Code 1929769).

$4.49

$

In Stock, only 2 left!

0

17

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: (Honda Code 1756964).

$8.99

$

In Stock, only 2 left!

0

18

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

Note: (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0

21

Honda 12209-ZH8-003

SEAL, VALVE STEM

Note: (Honda Code 6854335).

$9.49

$

In Stock, only 1 left!

0
