GX110 TX (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

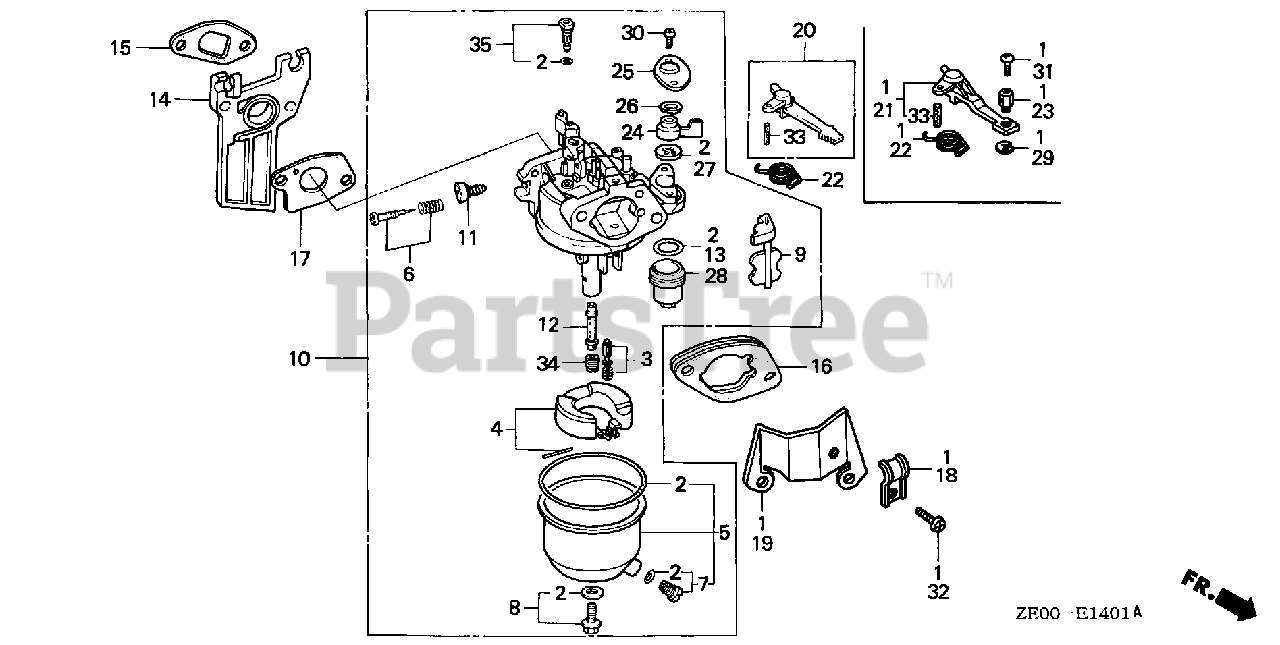

CARBURETOR (2) Parts Diagram

  • Title

2

Honda 16010-ZE0-505

SEE PART DETAILS - PRI; GASKET SET

Note: (Optional). Use up to Engine SN BE01C B.

$23.99

$

In Stock, only 2 left!

0

2

Honda 16010-ZE1-811

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZE1-812)

Note: Use from Engine SN BE01C C to BE01B F.

$20.99

$

In Stock, Qty 8

0

2

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BE01C C to BE01B F.

$20.99

$

In Stock, Qty 8

0

2

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

Note: (Optional). Use from Engine SN BE01B G.

$20.99

$

In Stock, Qty 8

0

3

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

Note: (Optional).

$30.99

$

In Stock, only 1 left!

0

4

Honda 16013-ZE0-005

FLOAT SET

Note: (Optional).

$31.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

Note: Use from Engine SN BE01B F.

$38.99

$

In Stock, only 2 left!

0

5

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

Note: Use from Engine SN BE01C E to BE01C F.

$38.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT

Note: (Optional).

$15.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: Use from Engine SN BE01B F.

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

Note: (Optional).

$13.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZE0-005

CHOKE SET

Note: Use up to Engine SN BE01C A.

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16044-733-005

CHOKE SET (NOT AVAILABLE)

Note: Use from Engine SN BE01B F.

$

$

Not available

9

Honda 16044-733-005

CHOKE SET (NOT AVAILABLE)

Note: Use from Engine SN BE01C B to BE01C F.

$

$

Not available

10

Honda 16100-ZE0-817

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE01B G) (W/STRAINER)

Note: Use from Engine SN 2006311.

$124.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZE0-821

CARBURETOR ASSY. (BE01C A)

Note: (Optional). Use up to Engine SN 1143606.

$

$

Currently unavailable

10

Honda 16100-ZE0-823

CARBURETOR ASSY. (BE01C C)

Note: (Optional). Use from Engine SN 1143607 to 1215360.

$

$

Currently unavailable

10

Honda 16100-ZE0-824

CARBURETOR ASSY. (BE01C D) (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1215361 to 1290556.

$

$

Currently unavailable

10

Honda 16100-ZE0-826

CARBURETOR ASSY. (BE01C F)

Note: (Optional). Use from Engine SN 1290557 to 2006310.

$

$

Currently unavailable

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Optional).

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZE0-005

NOZZLE, MAIN (NOT AVAILABLE)

Note: Use up to Engine SN BE01C C.

$

$

Currently unavailable

12

Honda 16166-ZE0-015

NOZZLE, MAIN

Note: Use from Engine SN BE01B F.

$

$

Not available

12

Honda 16166-ZE0-015

NOZZLE, MAIN

Note: Use from Engine SN BE01C D to BE01C F.

$

$

Not available

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Optional).

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE0-000

INSULATOR, CARBURETOR

$20.99

$

In Stock, only 1 left!

0

15

Honda 16212-ZE0-800

GASKET, INSULATOR

$3.99

$

Usually ships in 3-6 days

0

16

Honda 16220-ZE1-000

SEE PART DETAILS - SUP; SPACER, CARBURETOR
(Superseded to 16220-ZE1-020)

Note: Use up to Engine SN 1549317.

$8.49

$

In Stock, Qty 20+

0

16

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use up to Engine SN 1620646.

$8.49

$

In Stock, Qty 20+

0

16

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use from Engine SN 1620647.

$8.49

$

In Stock, Qty 20+

0

17

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

17

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

20

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Optional).

$11.99

$

In Stock, Qty 8

0

24

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

$14.99

$

Usually ships in 3-6 days

0

25

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

26

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

27

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, PETCOCK
(Superseded to 16957-ZE1-812)

Note: Use from Engine SN BE01B F to BE01B F.

$4.49

$

In Stock, Qty 20+

0

27

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, PETCOCK
(Superseded to 16957-ZE1-812)

Note: Use from Engine SN BE01C C to BE01C F.

$4.49

$

In Stock, Qty 20+

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: Use from Engine SN BE01B F to BE01B F.

$4.49

$

In Stock, Qty 20+

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: Use from Engine SN BE01C C to BE01C F.

$4.49

$

In Stock, Qty 20+

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: (Optional). Use from Engine SN BE01B G.

$4.49

$

In Stock, Qty 20+

0

28

Honda 16967-ZE0-811

CUP, FUEL STRAINER

Note: (Optional).

$23.99

$

In Stock, only 3 left!

0

30

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use from Engine SN BE01B F to BE01B F.

$0.99

$

In Stock, Qty 8

0

30

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use from Engine SN BE01C C to BE01C F.

$0.99

$

In Stock, Qty 8

0

30

Honda 93500-03008-1G

SCREW, PAN (3X8)

Note: (Optional). Use from Engine SN BE01B G.

$

$

Currently unavailable

33

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Optional).

$2.49

$

In Stock, only 4 left!

0

34

Honda 99101-124-0550

JET, MAIN (#55)

Note: (Optional).

$12.99

$

In Stock, only 3 left!

0

34

Honda 99101-124-0580

JET, MAIN (#58)

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

34

Honda 99101-124-0600

JET, MAIN (#60)

Note: Use from Engine SN BE01B F.

$12.99

$

In Stock, Qty 5

0

34

Honda 99101-124-0600

JET, MAIN (#60)

Note: Use from Engine SN BE01C D to BE01C F.

$12.99

$

In Stock, Qty 5

0

34

Honda 99101-124-0620

JET, MAIN (#62)

Note: Use from Engine SN BE01C A to BE01C C.

$11.99

$

In Stock, only 2 left!

0

35

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Optional).

$23.99

$

In Stock, only 2 left!
