GX110 QXC (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) MUFFLER (SILENT) Parts Diagram

Engine, Made in Japan

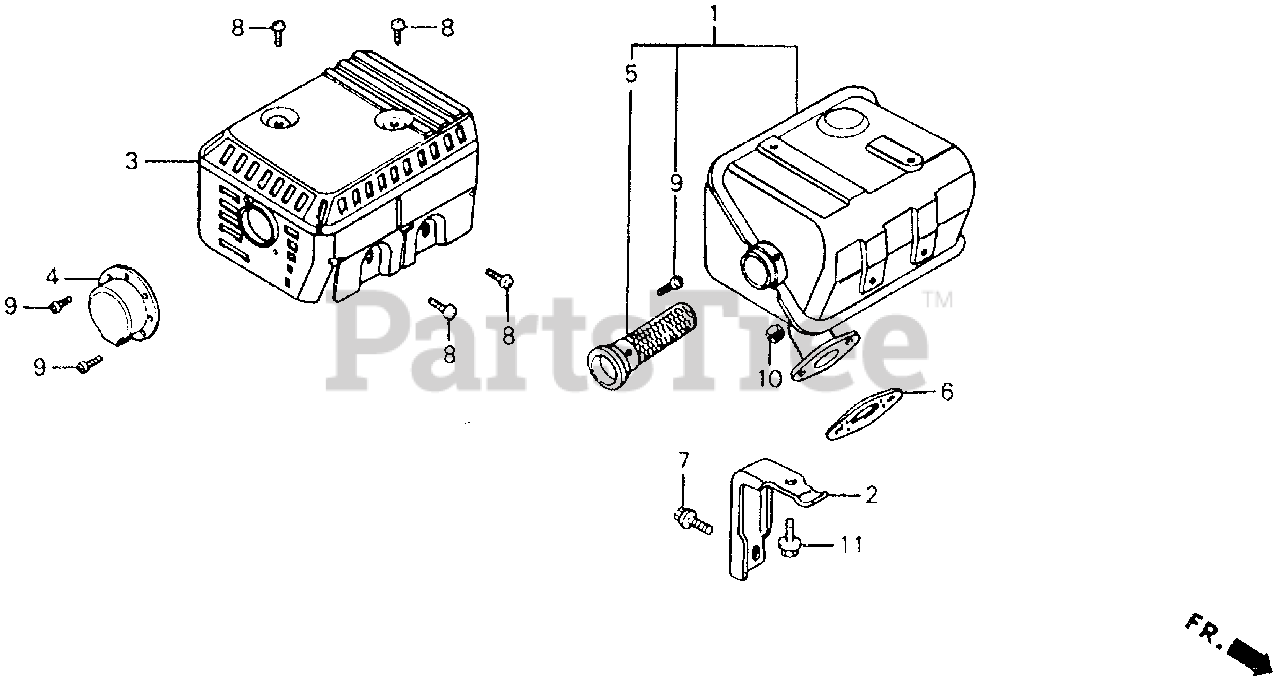

MUFFLER (SILENT) Parts Diagram

  • Title

1

Honda 183A1-ZE1-821

SEE PART DETAILS - PRI; MUFFLER (SILENT) (Honda Code 2535086).

$

$

Not available

2

Honda 18315-ZE1-000

STAY, MUFFLER (Honda Code 1540830).

$17.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZE1-820

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER (SILENT) (Honda Code 1540848).

$41.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZF1-H51

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER (Honda Code 4640850).
(Superseded to 18320-ZF1-H52)

$41.99

$

Usually ships in 3-6 days

0

4

Honda 18331-883-810

CAP, MUFFLER (Honda Code 0636563).

$10.99

$

In Stock, Qty 12

0

5

Honda 18355-ZE1-810

ARRESTER, SPARK (SILENT) (Honda Code 1540855).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 18381-ZE1-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4006565).
(Superseded to 18381-ZE1-801)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (Honda Code 1541002).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

9

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (Honda Code 1431121).

$1.49

$

In Stock, Qty 11

0

10

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

11

Honda 95700-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0487025).

$

$

Not available

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
