GX110 QXC (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) FUEL TANK Parts Diagram

Engine, Made in Japan

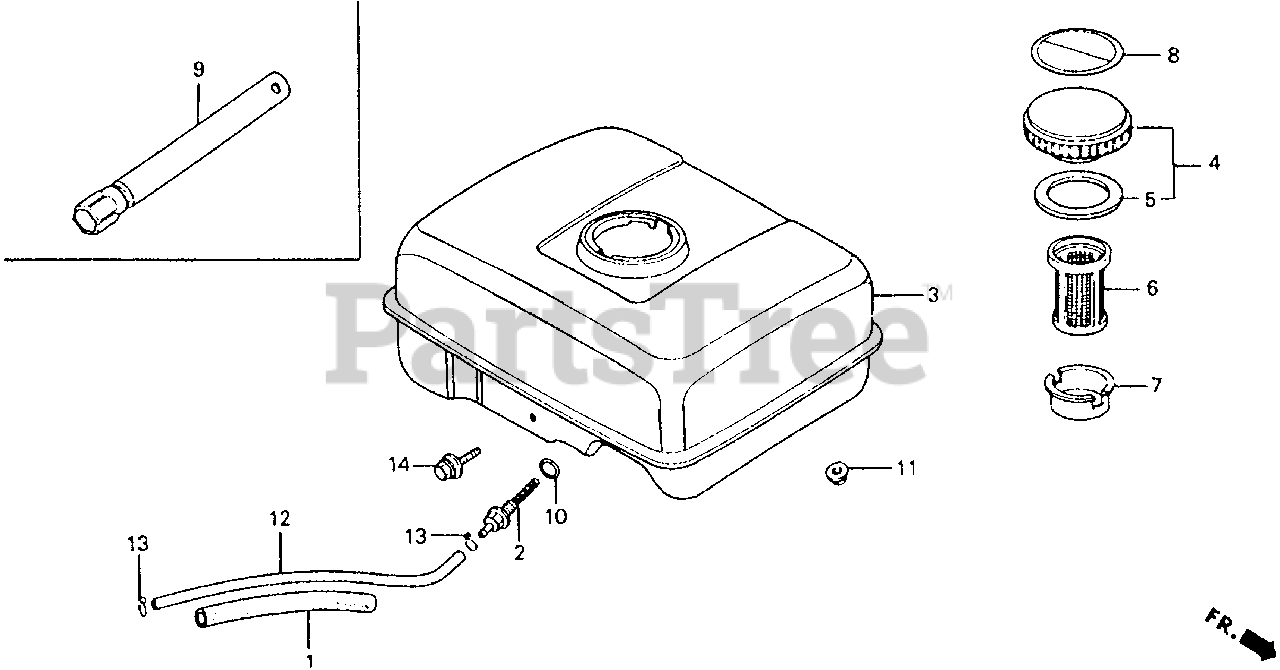

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

Note: Use up to Engine SN 2388434.

$5.49

$

In Stock, Qty 11

0

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

Note: Use from Engine SN 2388435.

$5.49

$

In Stock, Qty 11

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK (Honda Code 1427459).
(Superseded to 16955-ZE1-010)

$9.49

$

In Stock, Qty 20+

0

3

Honda 17510-ZE0-020ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 3695236).

$53.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

$

$

Currently unavailable

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

$

$

Not available

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

$

$

Not available

8

Honda 87522-ZE1-810

MARK, CAUTION (EXTERNAL) (Honda Code 1431014).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI) (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

11

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

12

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140) (Honda Code 5137104).

$57.99

$

In Stock, Qty 10

0

13

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

14

Honda 95700-06025-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25) (Honda Code 0484485).

$

$

Currently unavailable

14

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

Usually ships in 3-6 days

0
