GX110 QXC (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

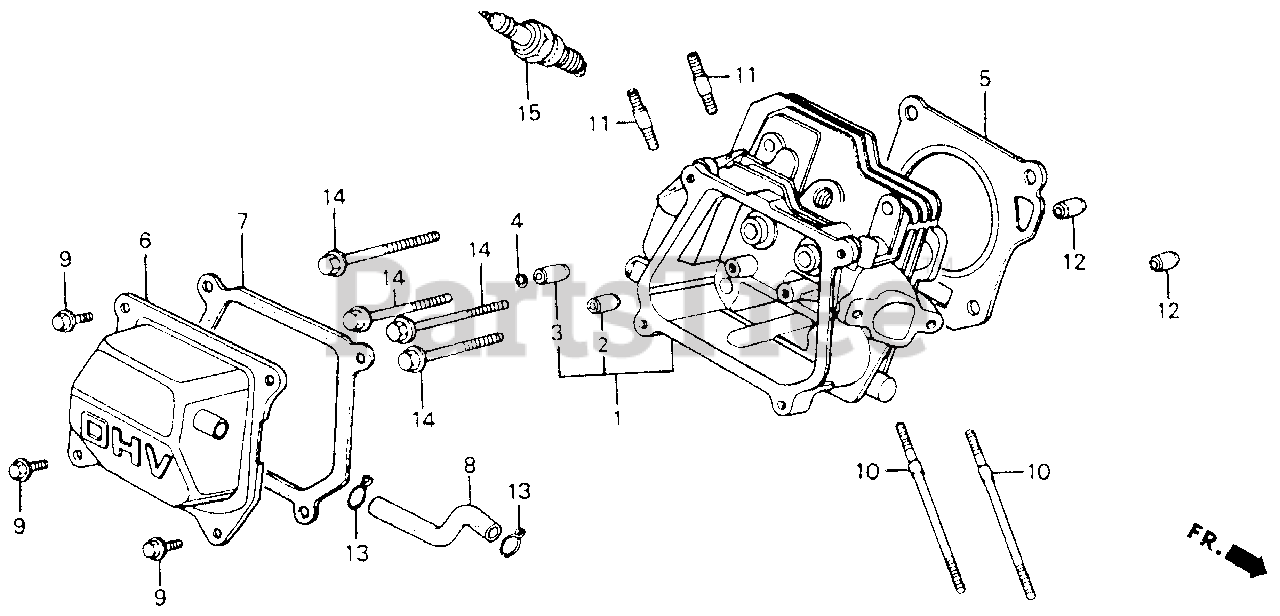

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE0-020

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 1961366).

$

$

Not available

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS) (Honda Code 1441096).

Note: (Optional).

$

$

Not available

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4165874).

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE (Honda Code 2399780).

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZE0-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4225504).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE1-840

COVER, HEAD (Honda Code 2573988).

$

$

Currently unavailable

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZE1-840

TUBE, BREATHER (Honda Code 2574028).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (Honda Code 1541002).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109) (Honda Code 4588323).

$6.99

$

In Stock, only 1 left!

0

11

Honda 90047-ZE1-000

BOLT, STUD (8X32) (Honda Code 1431097).

$4.99

$

In Stock, only 1 left!

0

12

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

13

Honda 95002-80000

CLIP, TUBE (C12) (Honda Code 0073700).

$0.99

$

In Stock, only 4 left!

0

14

Honda 95723-08055-00

BOLT, FLANGE (8X55) (Honda Code 1436609).

$2.49

$

In Stock, only 1 left!

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, Qty 8

0
