GX110 QXC (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) AIR CLEANER (CYCLONE) Parts Diagram

Engine, Made in Japan

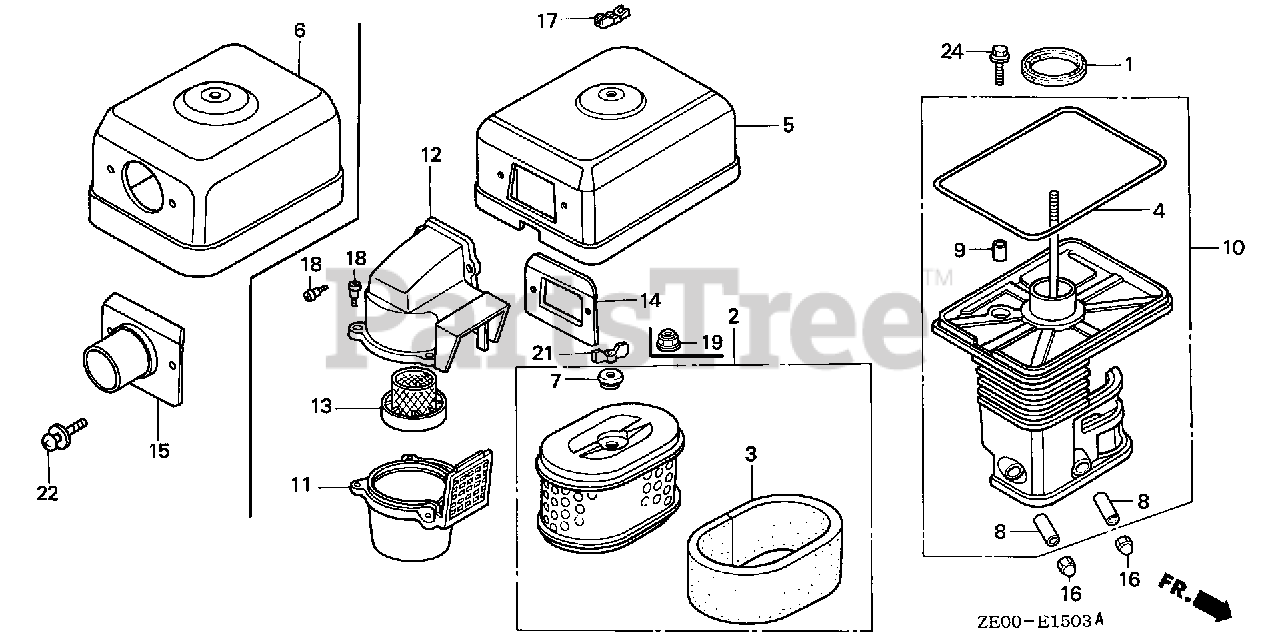

AIR CLEANER (CYCLONE) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-822

ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-Z4M-821)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-507

FILTER (OUTER)
(Superseded to 17218-ZE1-821)

$11.99

$

In Stock, only 1 left!

0

4

Honda 17219-733-010

GASKET, AIR CLEANER COVER

$6.99

$

Usually ships in 3-6 days

0

5

Honda 17230-ZE1-841

COVER, AIR CLEANER (CYCLONE)

$31.99

$

Usually ships in 3-6 days

0

7

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 15

0

8

Honda 17238-ZE0-010

COLLAR, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17239-733-000

COLLAR B, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

10

Honda 17410-ZE0-840

ELBOW, AIR CLEANER
(Superseded to 17410-ZE0-841)

$35.99

$

Usually ships in 3-6 days

0

11

Honda 17470-ZE1-841

CASE, PRE AIR CLEANER
(Superseded to 17470-ZE1-842)

$15.99

$

In Stock, only 1 left!

0

12

Honda 17475-ZE1-841

CAP, PRE AIR CLEANER

$19.99

$

In Stock, only 1 left!

0

13

Honda 17476-ZE1-841

GUIDE, PRE AIR CLEANER

$10.99

$

In Stock, only 1 left!

0

14

Honda 17478-ZE1-841

PLATE, PRE AIR CLEANER

$9.99

$

In Stock, only 1 left!

0

16

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

In Stock, Qty 9

0

17

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

$10.99

$

In Stock, only 3 left!

0

18

Honda 90300-GB0-900

BOLT, SPLASH GUARD

$3.99

$

In Stock, only 4 left!

0

21

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

24

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 6

0
