GX110 QXA (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) MUFFLER (STANDARD) Parts Diagram

Engine, Made in Japan

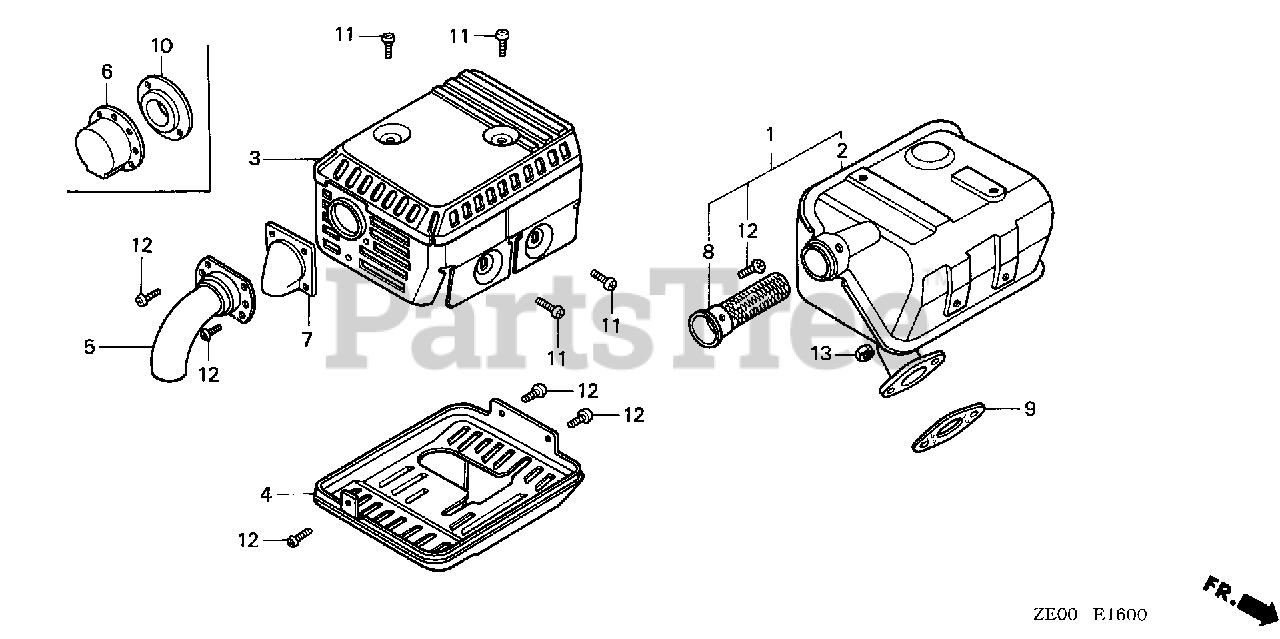

MUFFLER (STANDARD) Parts Diagram

  • Title

1

Honda 183A1-ZE1-811

MUFFLER (ARRESTER) (NOT AVAILABLE)

$

$

Not available

3

Honda 18320-ZE1-000

PROTECTOR (UPPER)
(Superseded to 18320-ZH8-W02)

$41.99

$

In Stock, only 1 left!

0

6

Honda 18340-ZE1-010

DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

8

Honda 18355-ZE1-000

ARRESTER, SPARK

Note: (Optional).

$15.99

$

In Stock, only 3 left!

0

9

Honda 18381-ZE1-800

GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 18522-ZE1-000

GUIDE, MUFFLER

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 11

0

13

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0
