GX110 QXA (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

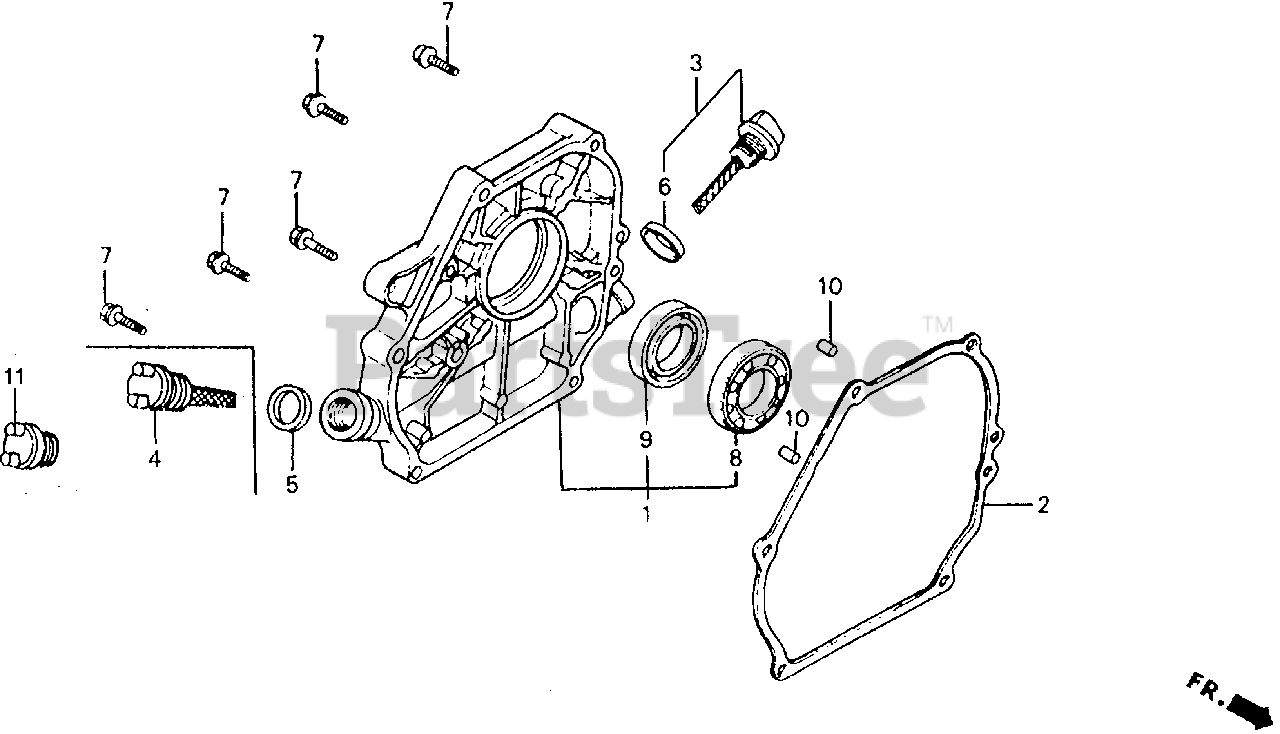

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE0-640

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (U-TYPE) (Honda Code 1441138).

$

$

Not available

2

Honda 11381-ZE0-800

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 4591418).

$9.49

$

In Stock, only 2 left!

0

2

Honda 11381-ZH7-800

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 3693488).

$9.49

$

In Stock, only 1 left!

0

3

Honda 15600-ZE1-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4500146).
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 9

0

4

Honda 15621-ZE1-000

CAP, OIL HOLE (Honda Code 1427061).

Note: Use up to Engine SN 2431392.

$6.99

$

Usually ships in 3-6 days

0

5

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 1033042).

$5.49

$

In Stock, Qty 5

0

6

Honda 15625-ZE1-000

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP (Honda Code 1427079).
(Superseded to 15625-ZE1-003)

$3.49

$

In Stock, only 2 left!

0

6

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 2 left!

0

7

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, only 3 left!

0

8

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$37.99

$

In Stock, only 1 left!

0

9

Honda 91203-ZE0-003

SEE PART DETAILS - SUP; OIL SEAL (22X41X6) (Honda Code 1431352).
(Superseded to 91203-ZE0-013)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 91203-ZE0-013

SEE PART DETAILS - PRI; OIL SEAL (22X41X6) (Honda Code 7424484).

$10.99

$

Usually ships in 3-6 days

0

10

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 10

0

11

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 3678596).

Note: Use from Engine SN 2431393.

$4.49

$

Usually ships in 3-6 days

0
