GX110 QXA (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) CAMSHAFT Parts Diagram

Engine, Made in Japan

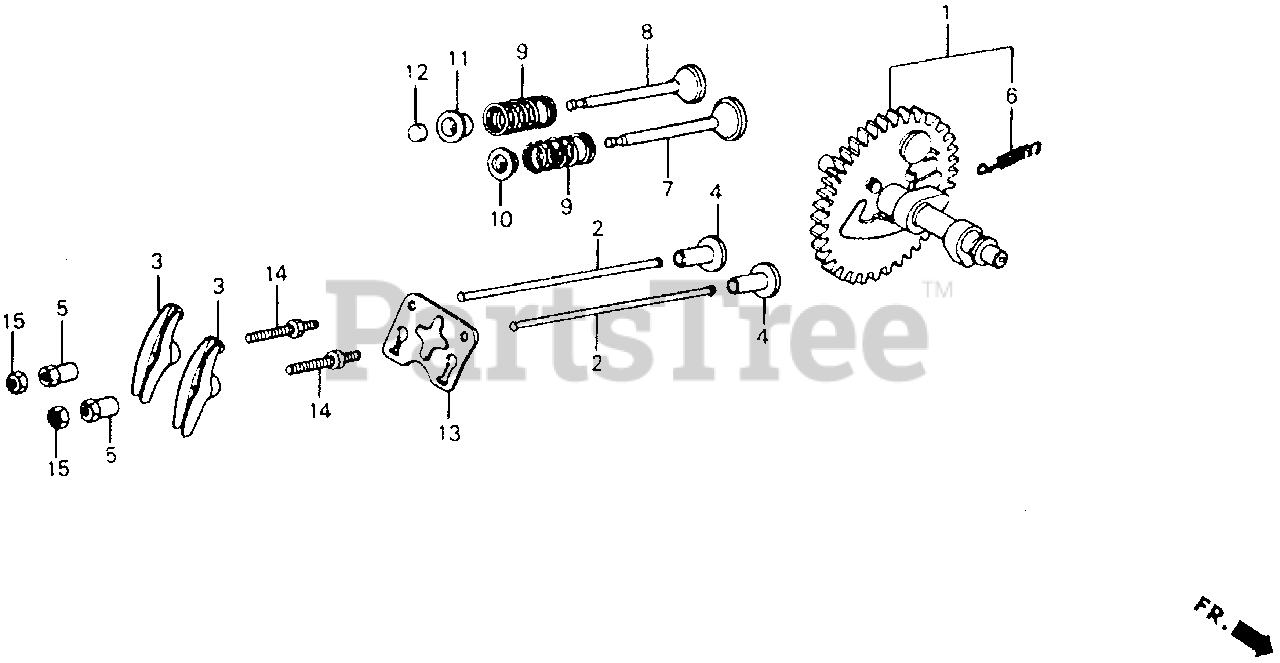

CAMSHAFT Parts Diagram

  • Title
1

Honda 14100-ZE0-812

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1929595).

$136.99

$

Usually ships in 3-6 days

0

2

Honda 14410-ZE0-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3337854).

$8.99

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$7.99

$

In Stock, only 1 left!

0

4

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE (Honda Code 1426832).
(Superseded to 14441-ZE1-010)

$14.99

$

Usually ships in 3-6 days

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-003

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM (Honda Code 1540764).
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM (Honda Code 4300901).
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZE0-010

SEE PART DETAILS - PRI; VALVE, IN. (Honda Code 2821585).

$

$

Not available

8

Honda 14721-ZE0-000

VALVE, EX. (Honda Code 1426956).
(Superseded to 14721-ZE0-810)

$

$

Not available

8

Honda 14721-ZE0-810

VALVE, EX. (STELITE) (Honda Code 1819580).

$

$

Not available

9

Honda 14751-ZE1-000

SPRING, VALVE (Honda Code 1426972).

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

11

Honda 14773-ZE1-000

RETAINER, EX. VALVE SPRING (Honda Code 1426998).

$10.99

$

In Stock, only 1 left!

0

12

Honda 14781-ZE1-000

ROTATOR, VALVE (Honda Code 1427004).

$5.99

$

In Stock, only 1 left!

0

13

Honda 14791-ZE0-010

SEE PART DETAILS - PRI; PLATE, PUSH ROD GUIDE (Honda Code 1929769).

$4.49

$

In Stock, only 2 left!

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

Usually ships in 3-6 days

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
