GX110 QA (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

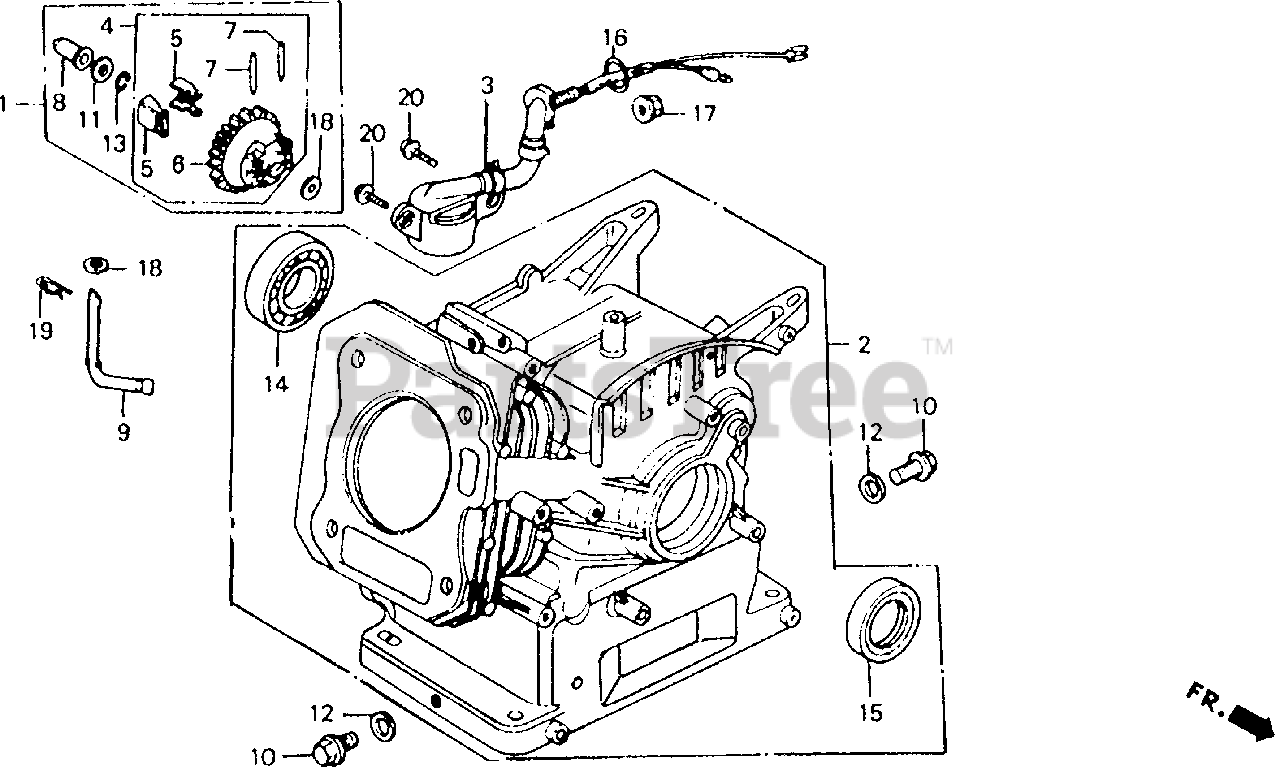

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 06165-ZE1-000

GOVERNOR KIT (Honda Code 3313657).

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

2

Honda 120A0-ZE0-000

SEE PART DETAILS - SUP; CYLINDER ASSY. (Honda Code 1426428).

Note: Use up to Engine SN 1456125.

$

$

Currently unavailable

2

Honda 120A0-ZE0-010

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 2145597).

Note: Use up to Engine SN 2277921.

$

$

Not available

2

Honda 120A0-ZE0-020

CYLINDER ASSY. (STD) (Honda Code 4038477).

Note: Use from Engine SN 2277922.

$

$

Not available

4

Honda 16510-ZE1-000

GOVERNOR ASSY. (Honda Code 2414225).

$17.99

$

In Stock, only 2 left!

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT (Honda Code 1427236).

$25.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SLIDER, GOVERNOR (Honda Code 1427251).

$3.49

$

In Stock, Qty 8

0

9

Honda 16541-ZE0-000

SHAFT, GOVERNOR ARM (Honda Code 1427269).

Note: Use up to Engine SN 2277921.

$

$

Not available

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM (Honda Code 1427277).

Note: Use from Engine SN 2277922.

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

BOLT, DRAIN PLUG (Honda Code 1431246).

$3.49

$

In Stock, only 2 left!

0

11

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

Note: Use up to Engine SN 1491735.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$38.99

$

In Stock, only 2 left!

0

15

Honda 91202-ZE6-003

SEE PART DETAILS - SUP; OIL SEAL (22X35X6) (Honda Code 3270246).
(Superseded to 91202-ZE6-013)

$10.99

$

In Stock, Qty 20+

0

15

Honda 91202-ZE6-013

SEE PART DETAILS - PRI; OIL SEAL (22X35X6) (Honda Code 7387756).

$10.99

$

In Stock, Qty 20+

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0
