GX100 VA2/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

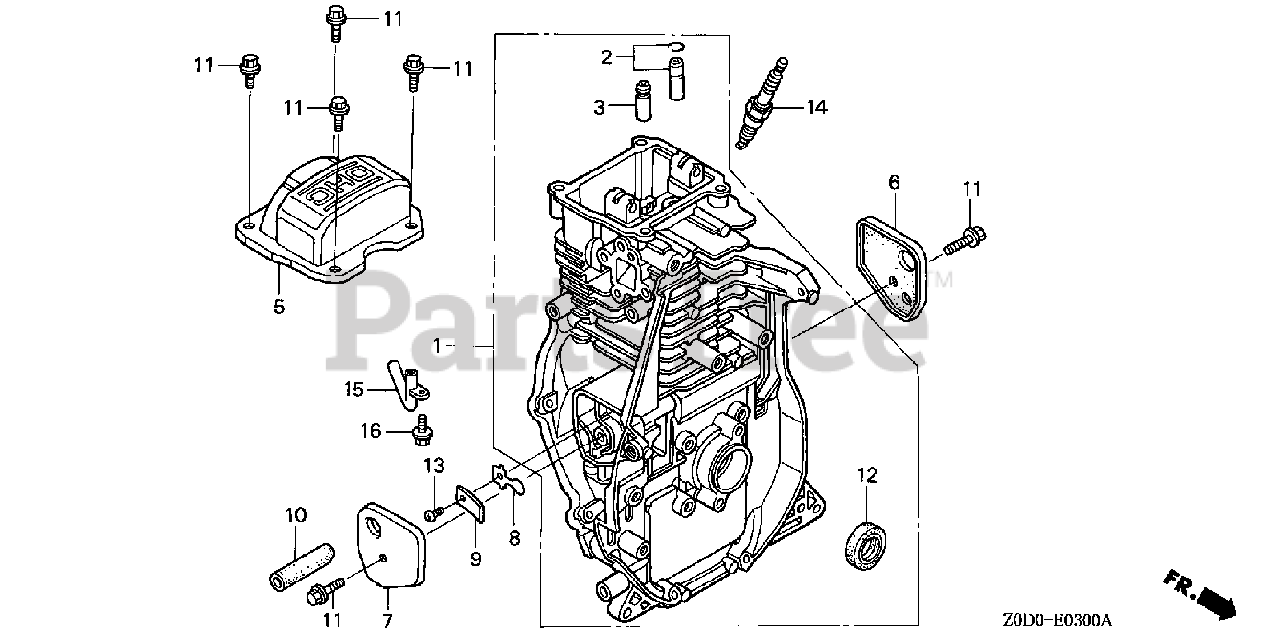

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-Z0D-405

CYLINDER ASSY.

Note: (Honda Code 6727564).

$404.99

$

Usually ships in 3-6 days

0

2

Honda 12201-Z0D-305

GUIDE ASSY., EX. VALVE (OS)

Note: (Optional). (Honda Code 6727572).

$

$

Not available

3

Honda 12204-Z0D-305

GUIDE, VALVE (OS)

Note: (Optional). (Honda Code 6727580).

$

$

Not available

5

Honda 12311-Z0D-000

COVER, HEAD

Note: (Honda Code 6763858).

$23.99

$

Usually ships in 3-6 days

0

6

Honda 12355-Z0D-000

COVER A, BREATHER

Note: (Honda Code 6727606).

$9.99

$

In Stock, only 1 left!

0

7

Honda 12365-Z0D-000

COVER B, BREATHER

Note: (Honda Code 6763874).

$9.99

$

Usually ships in 3-6 days

0

8

Honda 15571-ZM7-003

VALVE, OIL OUTLET

Note: (Honda Code 5988431).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 15572-ZM7-000

PLATE, STOPPER

Note: (Honda Code 5988449).

$2.49

$

In Stock, only 2 left!

0

10

Honda 15721-Z0D-000

TUBE, BREATHER

Note: (Honda Code 6763924).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

12

Honda 91202-KJ9-003

OIL SEAL (20X32X6)

Note: (Honda Code 3741006).

$6.99

$

In Stock, Qty 6

0

13

Honda 93500-03005-0A

SCREW, PAN (3X5)

Note: (Honda Code 0156950).

$1.49

$

Usually ships in 3-6 days

0

14

Honda 98056-55757

SPARK PLUG (U16FSR-UB) (DENSO)
(Superseded to 98056-55777)

Note: (Honda Code 5384623).

$4.49

$

In Stock, Qty 20+

0

14

Honda 98056-55777

SPARK PLUG (CR5HSB)

Note: (Honda Code 5384631).

$4.49

$

In Stock, Qty 20+

0
