GX100 UT QXU2 (GCCCT) - Honda Engine, Made in Thailand (SN: GCCCT-1000001 - GCCCT-1999999) MUFFLER Parts Diagram

Engine, Made in Thailand

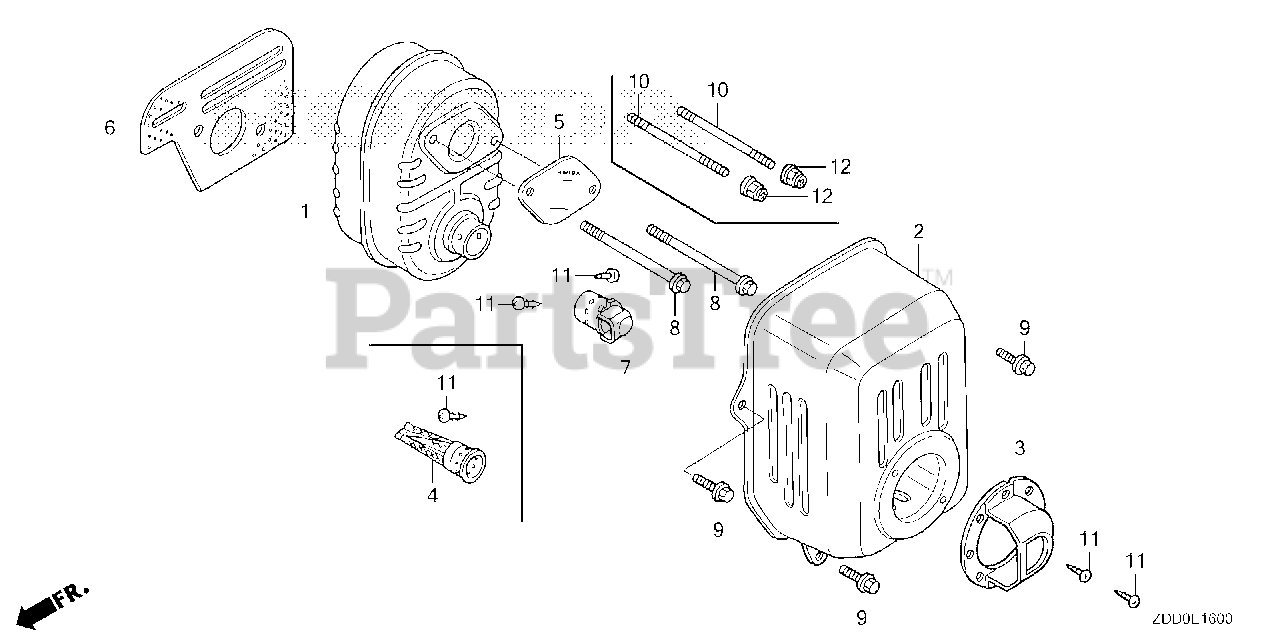

MUFFLER Parts Diagram

  • Title
1

Honda 18310-ZM0-010

SEE PART DETAILS - PRI; MUFFLER

$27.99

$

In Stock, only 1 left!

0

2

Honda 18321-ZL8-010

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$12.99

$

Usually ships in 3-6 days

0

3

Honda 18348-ZL8-000

CAP, MUFFLER (TO 1207644)

$10.99

$

Usually ships in 3-6 days

0

4

Honda 18350-ZL8-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (TO 1207644)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

5

Honda 18356-ZL8-000

PLATE, ARRESTER NUMBER (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$4.99

$

In Stock, only 3 left!

0

6

Honda 18381-Z0D-000

GASKET, MUFFLER

$10.99

$

In Stock, only 1 left!

0

7

Honda 18430-ZL8-000

DEFLECTOR, MUFFLER (TO 1207644)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200) (Honda Code 5580972).

$1.99

$

In Stock, Qty 12

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

11

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$1.49

$

In Stock, Qty 20+

0
