GX100 U VA2 (GCAGK) - Honda Engine, Made in Japan (SN: GCAGK-1000001 - GCAGK-9999999) OIL ALERT@OIL LEVEL SWITCH Parts Diagram

Engine, Made in Japan

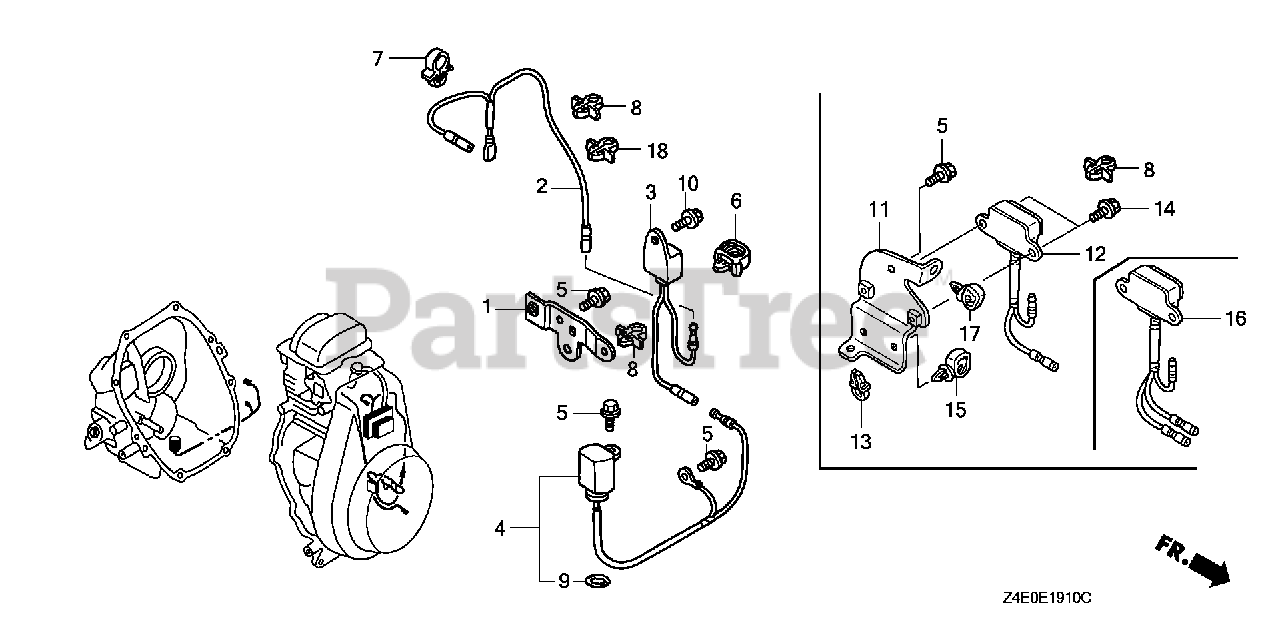

OIL ALERT@OIL LEVEL SWITCH Parts Diagram

  • Title
1

Honda 32112-Z0D-800

BRACKET, OIL ALERT UNIT

$10.99

$

Usually ships in 3-6 days

0

2

Honda 32195-Z0D-800

WIRE, STOP SWITCH

$36.99

$

Usually ships in 3-6 days

0

3

Honda 34150-ZH7-003

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use up to Engine SN 1090474.

$51.99

$

In Stock, only 1 left!

0

3

Honda 34150-ZH7-013

SEE PART DETAILS - PRI; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use up to Engine SN 1352974.

$51.99

$

In Stock, only 1 left!

0

3

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$51.99

$

In Stock, only 1 left!

0

4

Honda 35480-Z0D-003

SWITCH ASSY., OIL LEVEL

$60.99

$

Usually ships in 3-6 days

0

5

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

6

Honda 90650-SB2-003

CLIP, WIRE HARNESS (10MM) (Honda Code 1640358).

$8.99

$

Usually ships in 3-6 days

0

7

Honda 90682-959-661

CLIP B, CABLE (Honda Code 1064021).

$3.99

$

In Stock, only 2 left!

0

8

Honda 90681-959-003

CLIP, CABLE (A) (Honda Code 1824630).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, only 3 left!

0

10

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

Usually ships in 3-6 days

0
