GX100 U KRB (GCAGK) - Honda Engine, Made in Japan (SN: GCAGK-1000001 - GCAGK-9999999) RECOIL STARTER (2) Parts Diagram

Engine, Made in Japan

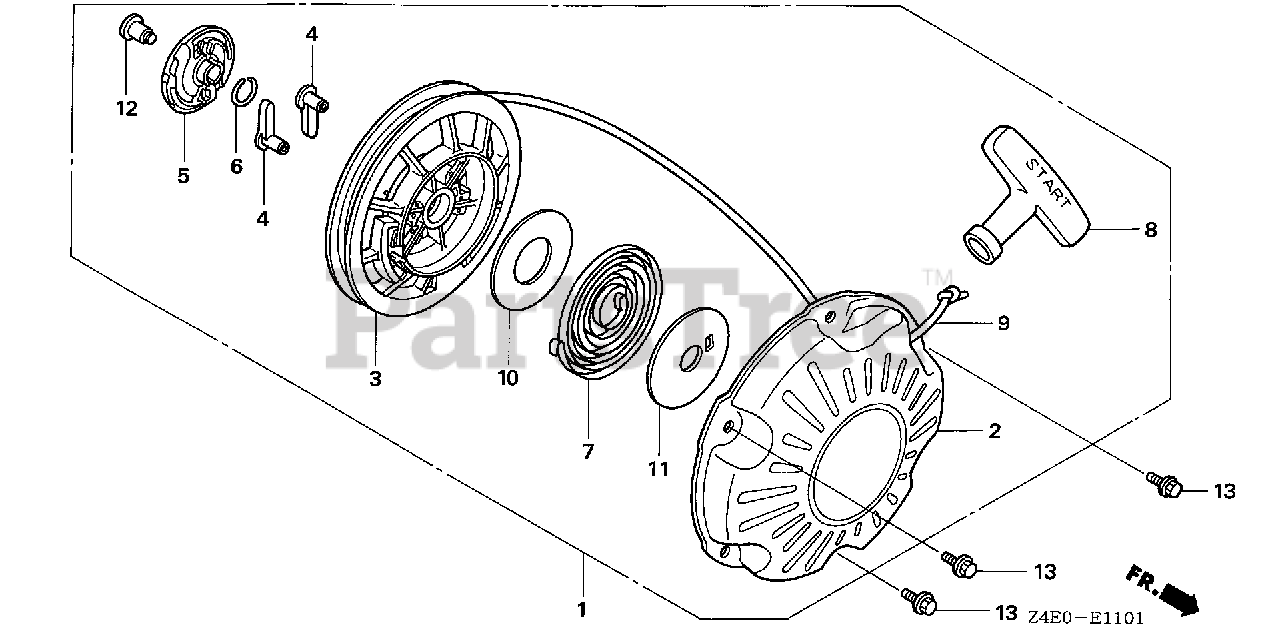

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-Z0D-V04ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use up to Engine SN 1188240.

$67.99

$

Usually ships in 3-6 days

0

1

Honda 28400-Z0D-V04ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 1188241.

$67.99

$

Usually ships in 3-6 days

0

1

Honda 28400-Z0D-V04ZC

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 1019282.

$67.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z0D-V04ZC

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 1019283 to 1188240.

$67.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z0D-V04ZC

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 1188241.

$67.99

$

In Stock, only 1 left!

0

2

Honda 28410-Z0D-V02ZA

CASE, RECOIL STARTER *NH1* (BLACK)

$105.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z0D-V02ZC

CASE, RECOIL STARTER *R280* (POWER RED)

$98.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0D-V02

REEL, RECOIL STARTER

$40.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZG0-W02

RATCHET, STARTER

$10.99

$

In Stock, Qty 8

0

5

Honda 28433-ZG0-W02

GUIDE, RATCHET

$7.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZW6-003

SPRING, FRICTION

$5.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER (Honda Code 3683919).

$19.99

$

In Stock, Qty 9

0

8

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; GRIP, STARTER

$8.99

$

In Stock, Qty 7

0

9

Honda 28462-Z0D-V03

ROPE, RECOIL STARTER

$7.49

$

Usually ships in 3-6 days

0

10

Honda 28467-Z0D-V02

PLATE, SIDE

$5.99

$

Usually ships in 3-6 days

0

11

Honda 28468-Z0D-V02

PLATE, SLIDE

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90003-ZH8-003

SCREW, SETTING (ENGINE NO.)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0
