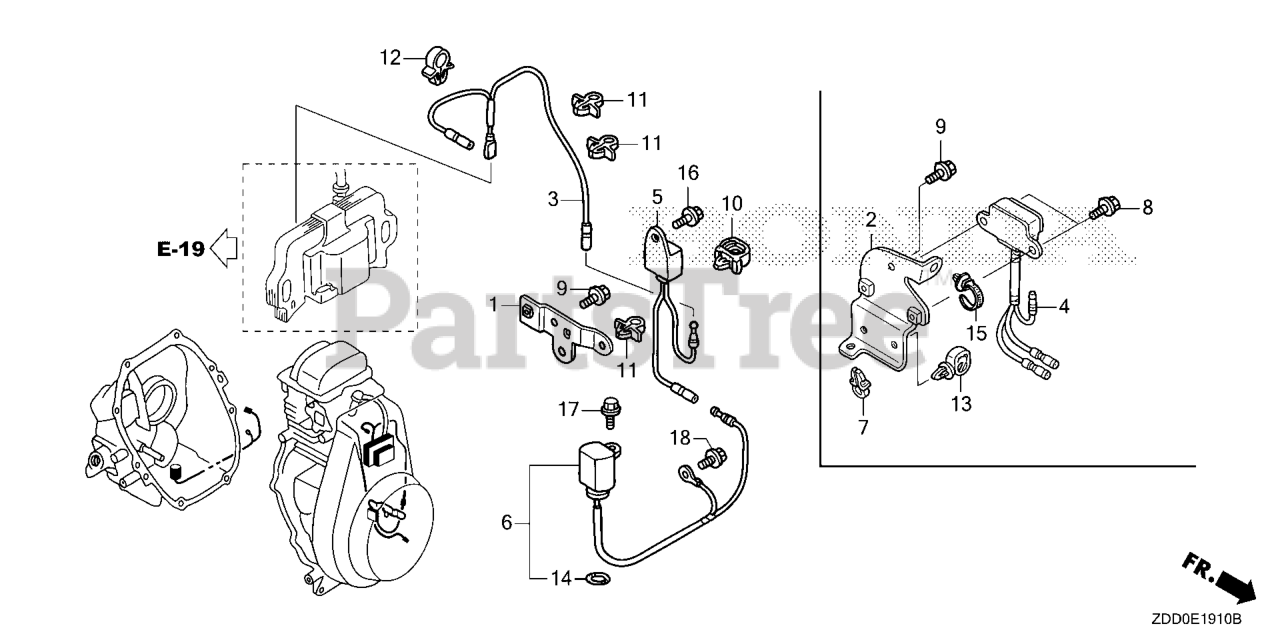

GX100 RT KRWN/A (GCCCT) - Honda Engine, Made in Thailand (SN: GCCCT-2000001 - GCCCT-9999999) OIL ALERT@OIL LEVEL SWITCH Parts Diagram

Engine, Made in Thailand

OIL ALERT@OIL LEVEL SWITCH Parts Diagram

  • Title

2

Honda 32112-Z4E-S11

BRACKET, OIL ALERT UNIT

$12.99

$

Usually ships in 3-6 days

0

3

Honda 32195-Z4E-S10

WIRE, STOP SWITCH

$40.99

$

Usually ships in 3-6 days

0

4

Honda 34150-Z4E-801

ALERT UNIT, OIL (START LED)

$58.99

$

Usually ships in 3-6 days

0

6

Honda 35480-Z4E-S11

SWITCH ASSY., OIL LEVEL

$51.99

$

In Stock, only 2 left!

0

7

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.99

$

In Stock, only 1 left!

0

8

Honda 90002-MC7-000

BOLT, FLANGE (5X8)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 12

0

11

Honda 90681-959-003

CLIP, CABLE (A) (Honda Code 1824630).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90682-959-661

CLIP B, CABLE (Honda Code 1064021).

$4.49

$

In Stock, only 2 left!

0

13

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$13.99

$

Usually ships in 3-6 days

0

14

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, Qty 5

0

15

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use up to Engine SN 2073471.

$3.49

$

In Stock, Qty 12

0

17

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

Note: Use from Engine SN 2073472.

$1.49

$

In Stock, only 4 left!

0

18

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Engine SN 2073472.

$2.49

$

In Stock, Qty 20+

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use up to Engine SN 2073471.

$3.49

$

In Stock, Qty 12

0
