GX100 QA2/B (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1300001 - GCANM-9999999) CARBURETOR (STANDARD) Parts Diagram

Engine, Made in Japan

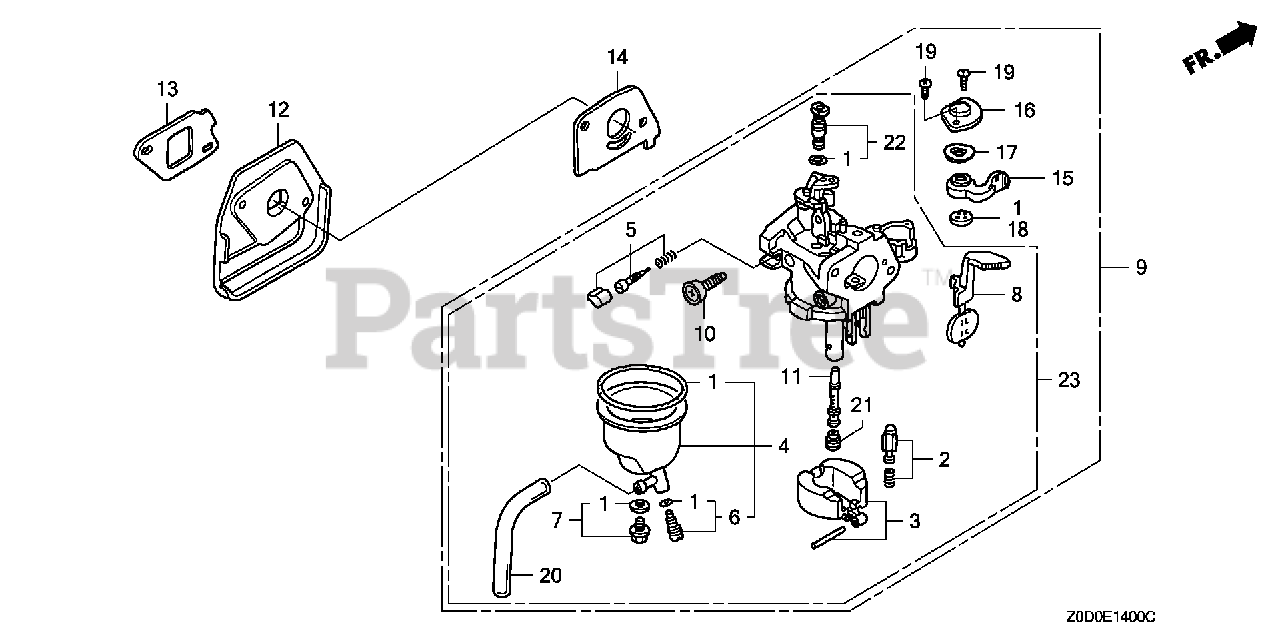

CARBURETOR (STANDARD) Parts Diagram

  • Title

1

Honda 16010-ZM7-003

GASKET SET

$19.99

$

In Stock, Qty 15

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$31.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZM7-003

CHAMBER SET, FLOAT

$66.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$22.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN

$10.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16044-Z0D-003

CHOKE SET

$32.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z0D-013

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF32F B)
(Superseded to 16100-Z0D-023)

$94.99

$

In Stock, only 1 left!

0

9

Honda 16100-Z0D-023

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF32F C)

$94.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$18.99

$

In Stock, only 1 left!

0

11

Honda 16166-Z0D-003

NOZZLE, MAIN

$23.99

$

Usually ships in 3-6 days

0

12

Honda 16211-Z0D-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-Z0D-010)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16212-Z0D-000

GASKET, INSULATOR

$1.99

$

In Stock, Qty 13

0

14

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16953-Z0D-003

LEVER, PETCOCK

$10.99

$

Usually ships in 3-6 days

0

16

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

17

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

18

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, Qty 20+

0

19

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

20

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X100)

$30.99

$

In Stock, only 1 left!

0

21

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZG0-0580

JET, MAIN (#58)

Note: (Optional).

$9.49

$

In Stock, Qty 10

0

21

Honda 99101-ZG0-0600

JET, MAIN (#60)

$9.49

$

In Stock, only 2 left!

0

22

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$15.99

$

Usually ships in 3-6 days

0
