GX100 QA2/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) FUEL TANK Parts Diagram

Engine, Made in Japan

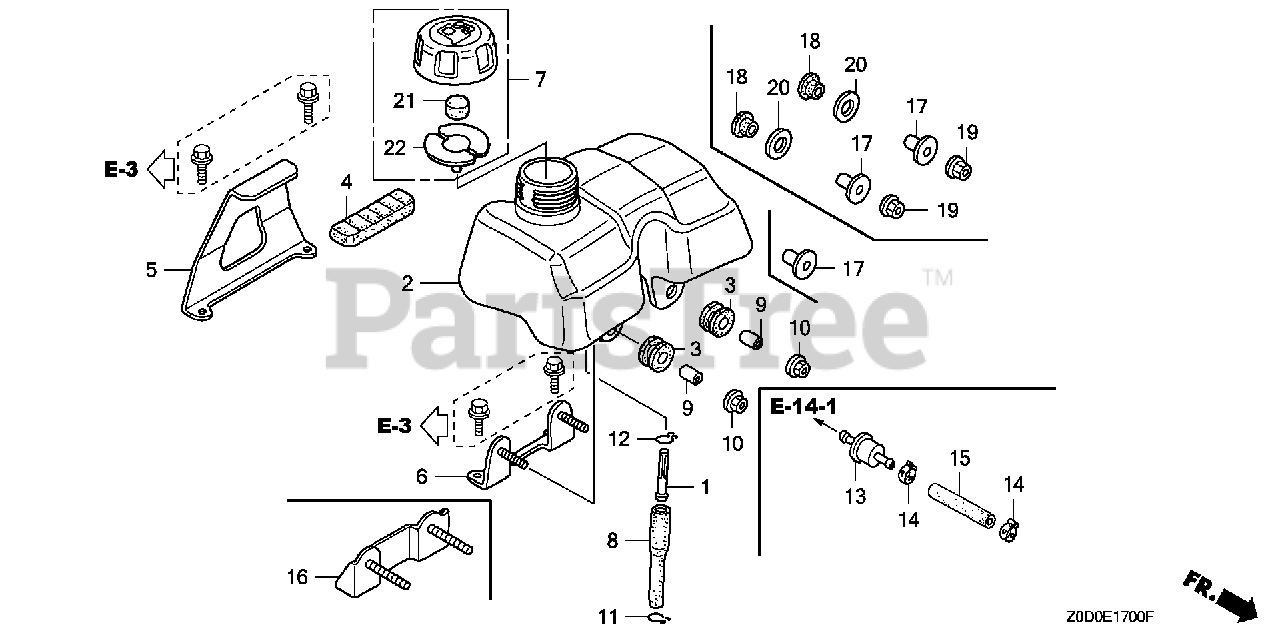

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$9.49

$

In Stock, Qty 6

0

2

Honda 17511-ZM7-000

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-ZM7-010)

$31.99

$

In Stock, only 1 left!

0

2

Honda 17511-ZM7-010

SEE PART DETAILS - PRI; TANK, FUEL

$31.99

$

In Stock, only 1 left!

0

3

Honda 17532-ZM7-000

RUBBER A, TANK MOUNTING

$2.49

$

In Stock, only 3 left!

0

4

Honda 17533-ZM7-000

RUBBER B, TANK MOUNTING

$5.49

$

In Stock, only 2 left!

0

5

Honda 17561-Z0D-000

STAY A, FUEL TANK

$6.99

$

In Stock, only 1 left!

0

6

Honda 17566-Z0D-010

SEE PART DETAILS - PRI; STAY B, FUEL TANK

$7.99

$

In Stock, only 2 left!

0

7

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

$5.99

$

In Stock, Qty 16

0

7

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$5.99

$

In Stock, Qty 16

0

8

Honda 17701-Z0D-000

TUBE, FUEL

$2.99

$

In Stock, only 1 left!

0

9

Honda 30507-441-000

COLLAR, IGNITION COIL SETTING

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90201-ZM0-000

NUT, FLANGE (6MM)

$2.99

$

In Stock, Qty 20+

0

11

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 11

0

12

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.99

$

Usually ships in 3-6 days

0

22

Honda 17624-ZL8-013

GASKET, FUEL CAP

$2.99

$

In Stock, Qty 8

0
