GX100 QA2/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) FLYWHEEL + IGNITION COIL Parts Diagram

Engine, Made in Japan

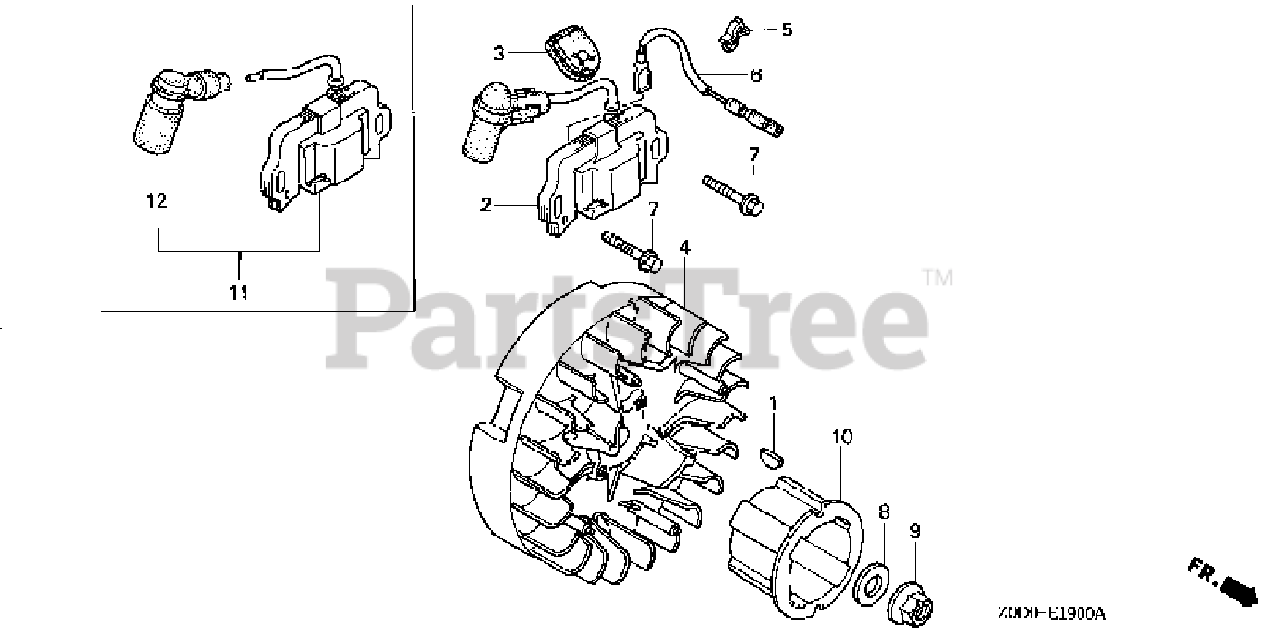

FLYWHEEL + IGNITION COIL Parts Diagram

  • Title

1

Honda 13331-ZM7-000

KEY, SPECIAL

Note: (Honda Code 5988290).

$4.49

$

Usually ships in 3-6 days

0

2

Honda 30500-Z0D-003

COIL ASSY., IGNITION

Note: (Honda Code 6764195).

$

$

Currently unavailable

3

Honda 30564-ZA5-000

GROMMET, WIRE

Note: (Honda Code 1267913).

$6.49

$

Usually ships in 3-6 days

0

4

Honda 31110-Z0D-003

FLYWHEEL

Note: (Honda Code 6764203).

$127.99

$

Usually ships in 3-6 days

0

5

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM)

Note: (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

6

Honda 32195-Z0D-000

WIRE, STOP SWITCH
(Superseded to 32195-Z0H-000)

Note: (Honda Code 6764229).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

Note: (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

8

Honda 90531-011-010

WASHER (12MM)

Note: (Honda Code 0012344).

$1.99

$

Usually ships in 3-6 days

0

9

Honda 94050-12000

NUT, FLANGE (12MM)

Note: (Honda Code 0671123).

$1.49

$

In Stock, only 3 left!

0
