GX100 KRG/B (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1300001 - GCANM-9999999) RECOIL STARTER (RAMMER) Parts Diagram

Engine, Made in Japan

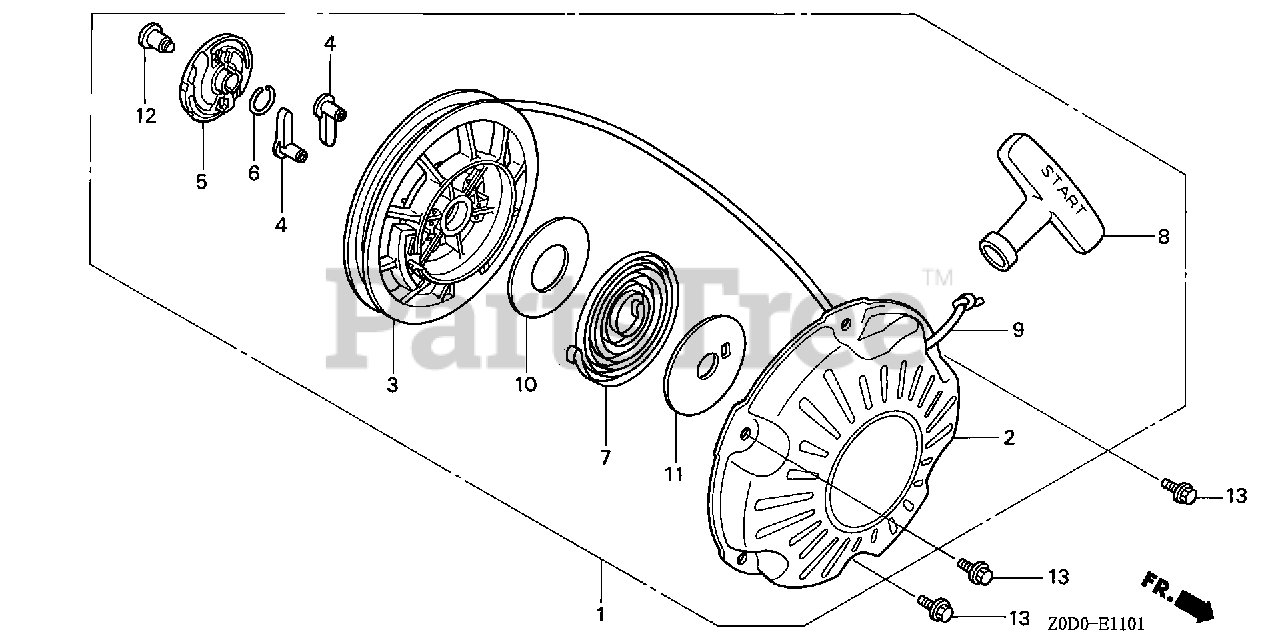

RECOIL STARTER (RAMMER) Parts Diagram

  • Title

1

Honda 28400-Z0D-V04ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

$67.99

$

In Stock, only 1 left!

0

2

Honda 28410-Z0D-V02ZA

CASE, RECOIL STARTER *NH1* (BLACK)

$100.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0D-V02

REEL, RECOIL STARTER

$38.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZG0-W02

RATCHET, STARTER

$9.99

$

In Stock, Qty 8

0

5

Honda 28433-ZG0-W02

GUIDE, RATCHET

$7.49

$

Usually ships in 3-6 days

0

6

Honda 28441-ZW6-003

SPRING, FRICTION

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$18.99

$

In Stock, Qty 5

0

8

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

$8.49

$

In Stock, Qty 8

0

8

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

$8.49

$

In Stock, Qty 8

0

9

Honda 28462-Z0D-V03

ROPE, RECOIL STARTER

$7.49

$

Usually ships in 3-6 days

0

10

Honda 28467-Z0D-V02

PLATE, SIDE

$5.99

$

Usually ships in 3-6 days

0

11

Honda 28468-Z0D-V02

PLATE, SLIDE

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90003-ZH8-003

SCREW, SETTING

$6.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 2 left!

0
