GX100 KRF2 (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1300001 - GCANM-9999999) CONTROL (RAMMER REMOTE) (1) Parts Diagram

Engine, Made in Japan

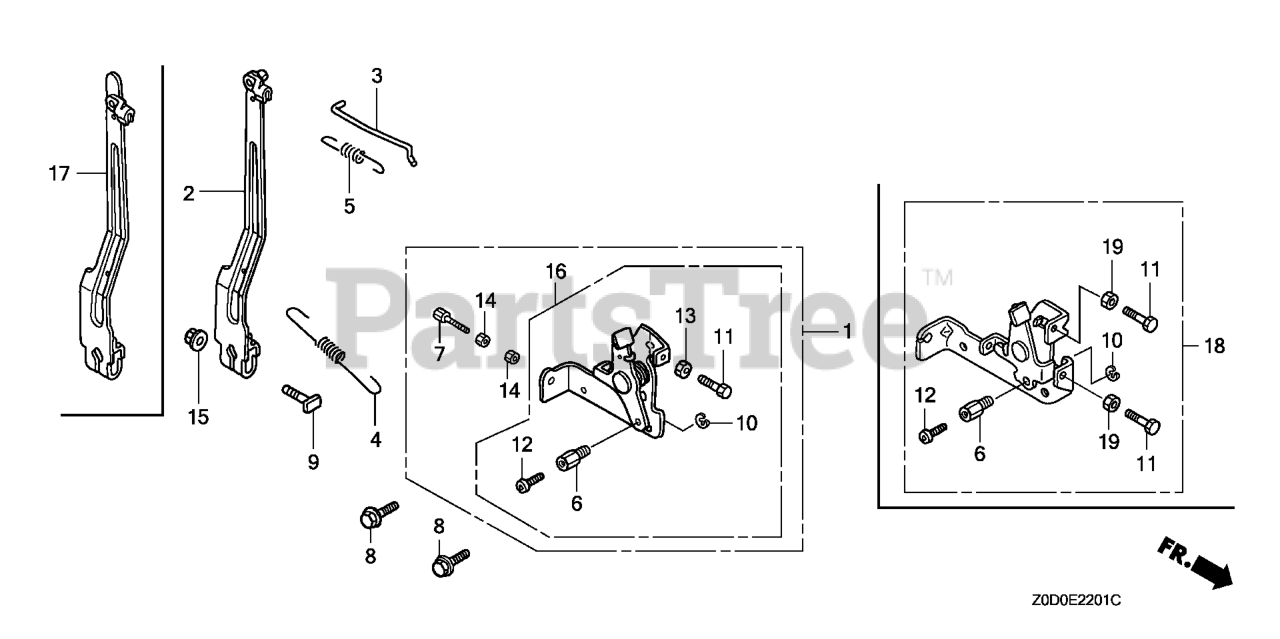

CONTROL (RAMMER REMOTE) (1) Parts Diagram

  • Title

1

Honda 16500-ZG0-V90

CONTROL ASSY.

$23.99

$

Usually ships in 3-6 days

0

3

Honda 16555-Z0D-V00

ROD, GOVERNOR

$2.49

$

In Stock, only 1 left!

0

4

Honda 16561-Z0D-V00

SPRING, GOVERNOR

$3.99

$

In Stock, only 1 left!

0

5

Honda 16562-Z0D-V00

SPRING, THROTTLE RETURN

$2.99

$

In Stock, only 1 left!

0

6

Honda 16594-883-010

SEE PART DETAILS - PRI; HOLDER, WIRE (Honda Code 2686558).

$9.49

$

In Stock, only 3 left!

0

7

Honda 54717-ZG0-S00

BOLT, CABLE ADJUSTING (6X34)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

9

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

10

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$4.49

$

In Stock, only 2 left!

0

11

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 7

0

13

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94002-06000-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 16550-Z0D-V01

ARM, GOVERNOR

$20.99

$

In Stock, only 2 left!

0
