GX100 KRB/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) RECOIL STARTER (KRA2, KRB, KRG, KRS) Parts Diagram

Engine, Made in Japan

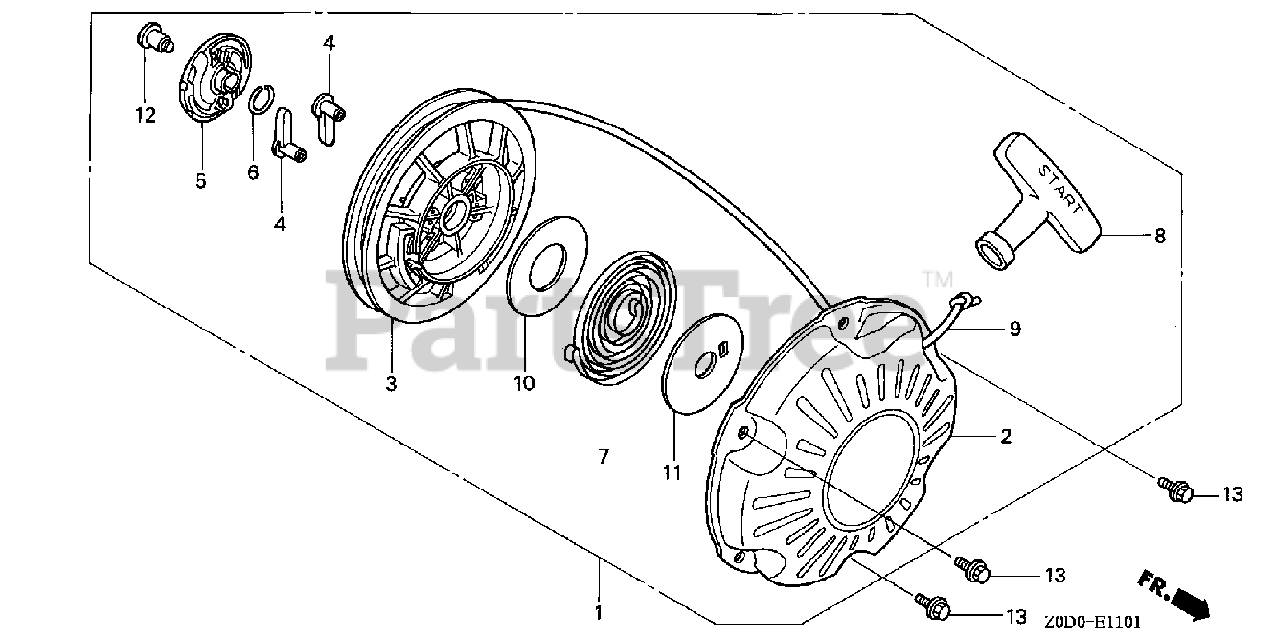

RECOIL STARTER (KRA2, KRB, KRG, KRS) Parts Diagram

  • Title

1

Honda 28400-Z0D-V02ZA

STARTER ASSY., RECOIL *NH1* (BLACK)

Note: (Honda Code 6845564).

$

$

Currently unavailable

2

Honda 28410-Z0D-V02ZA

CASE, RECOIL STARTER *NH1* (BLACK)

Note: (Honda Code 6845648).

$100.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0D-V02

REEL, RECOIL STARTER

Note: (Honda Code 6845705).

$38.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZG0-W02

RATCHET, STARTER

Note: (Honda Code 5774492).

$9.99

$

In Stock, Qty 8

0

5

Honda 28433-ZG0-W02

GUIDE, RATCHET

Note: (Honda Code 5774500).

$7.49

$

Usually ships in 3-6 days

0

6

Honda 28441-ZW6-003

SPRING, FRICTION

Note: (Honda Code 7059470).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: (Honda Code 3683919).

$18.99

$

In Stock, Qty 5

0

8

Honda 28461-ZH8-003

KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

Note: (Honda Code 3683950).

$8.49

$

In Stock, Qty 8

0

9

Honda 28462-Z0D-V02

ROPE, RECOIL STARTER

Note: (Honda Code 6845770).

$

$

Currently unavailable

10

Honda 28467-Z0D-V02

PLATE, SIDE

Note: (Honda Code 6775209).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 28468-Z0D-V02

PLATE, SLIDE

Note: (Honda Code 6845820).

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90003-ZH8-003

SCREW, SETTING

Note: (Honda Code 3684222).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$3.49

$

In Stock, only 2 left!

0
