GX100 KRB/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) CARBURETOR (KRA2, KRB, KRS) Parts Diagram

Engine, Made in Japan

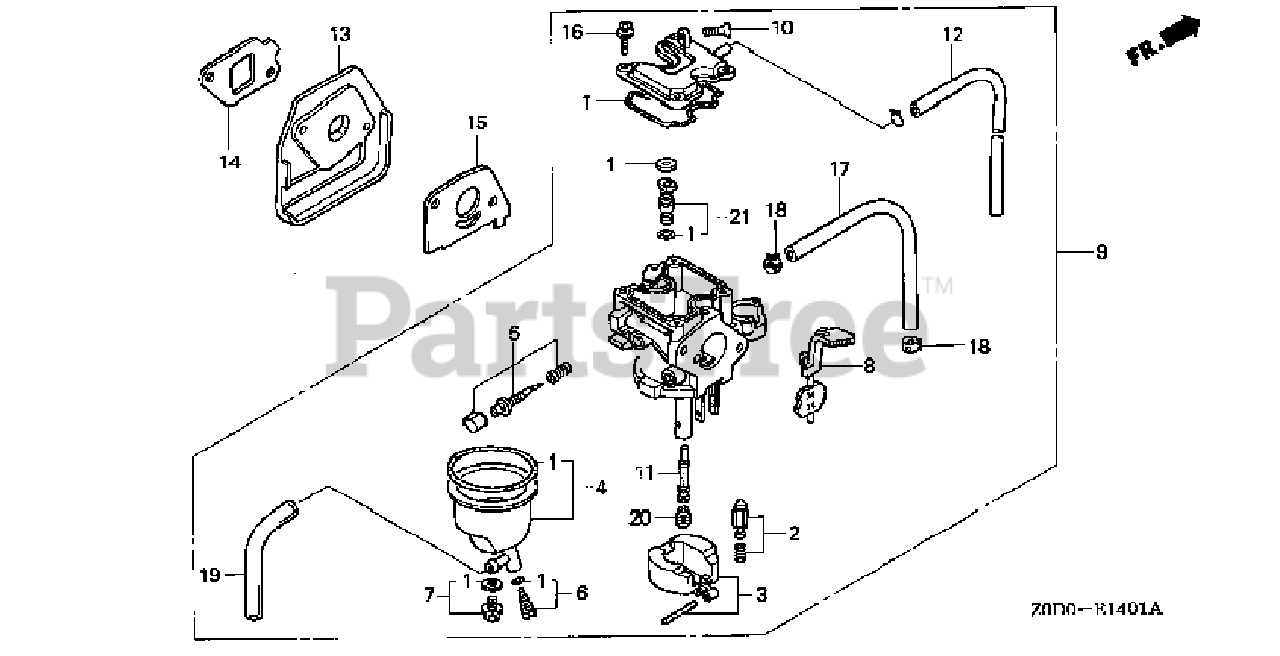

CARBURETOR (KRA2, KRB, KRS) Parts Diagram

  • Title

1

Honda 16010-Z0D-V21

GASKET SET

Note: (Honda Code 6843320).

$14.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

Note: (Honda Code 1807692).

$

$

Not available

4

Honda 16015-ZM7-003

CHAMBER SET, FLOAT

Note: (Honda Code 6005599).

$63.99

$

Usually ships in 3-6 days

0

5

Honda 16016-Z0D-V21

SCREW SET

Note: (Honda Code 6843361).

$9.49

$

Usually ships in 3-6 days

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN

Note: (Honda Code 4006458).

$10.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZG0-811

SCREW SET
(Superseded to 16028-ZW6-611)

Note: (Honda Code 1807700).

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16044-Z0D-V21

LEVER SET, CHOKE

Note: (Honda Code 6843445).

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z0D-V21

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF33D A)

Note: (Honda Code 6775100).

$

$

Currently unavailable

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-Z0D-003

NOZZLE, MAIN

Note: (Honda Code 6763957).

$22.99

$

Usually ships in 3-6 days

0

12

Honda 16199-Z0D-V21

TUBE, AIR VENT

Note: (Honda Code 6843684).

$7.49

$

Usually ships in 3-6 days

0

13

Honda 16211-Z0D-000

INSULATOR, CARBURETOR
(Superseded to 16211-Z0D-010)

Note: (Honda Code 6763965).

$10.99

$

Usually ships in 3-6 days

0

14

Honda 16212-Z0D-V20

GASKET, INSULATOR

Note: (Honda Code 6843734).

$2.49

$

In Stock, Qty 5

0

15

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: (Honda Code 4035077).

$2.99

$

In Stock, Qty 20+

0

16

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

Note: (Honda Code 0485953).

$0.99

$

Usually ships in 3-6 days

0

17

Honda 95001-45003-50M

BULK HOSE, FUEL (4.5X3000) (4.5X270)

Note: (Honda Code 4260337).

$82.99

$

In Stock, only 1 left!

0

18

Honda 95002-40850-08

CLIP, TUBE (D8.5)

Note: (Honda Code 0665240).

$3.49

$

In Stock, Qty 8

0

19

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X100)

Note: (Honda Code 4911343).

$28.99

$

In Stock, only 1 left!

0

20

Honda 99101-ZG0-0600

JET, MAIN (#60)

Note: (Honda Code 5775002).

$8.99

$

In Stock, only 2 left!

0

21

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Honda Code 1441609).

$23.99

$

In Stock, only 2 left!

0
