GV400 K1 ADJD (GV400) - Honda Engine, Made in Japan (SN: GV400-2000001 - GV400-2094026) STARTER MOTOR Parts Diagram

Engine, Made in Japan

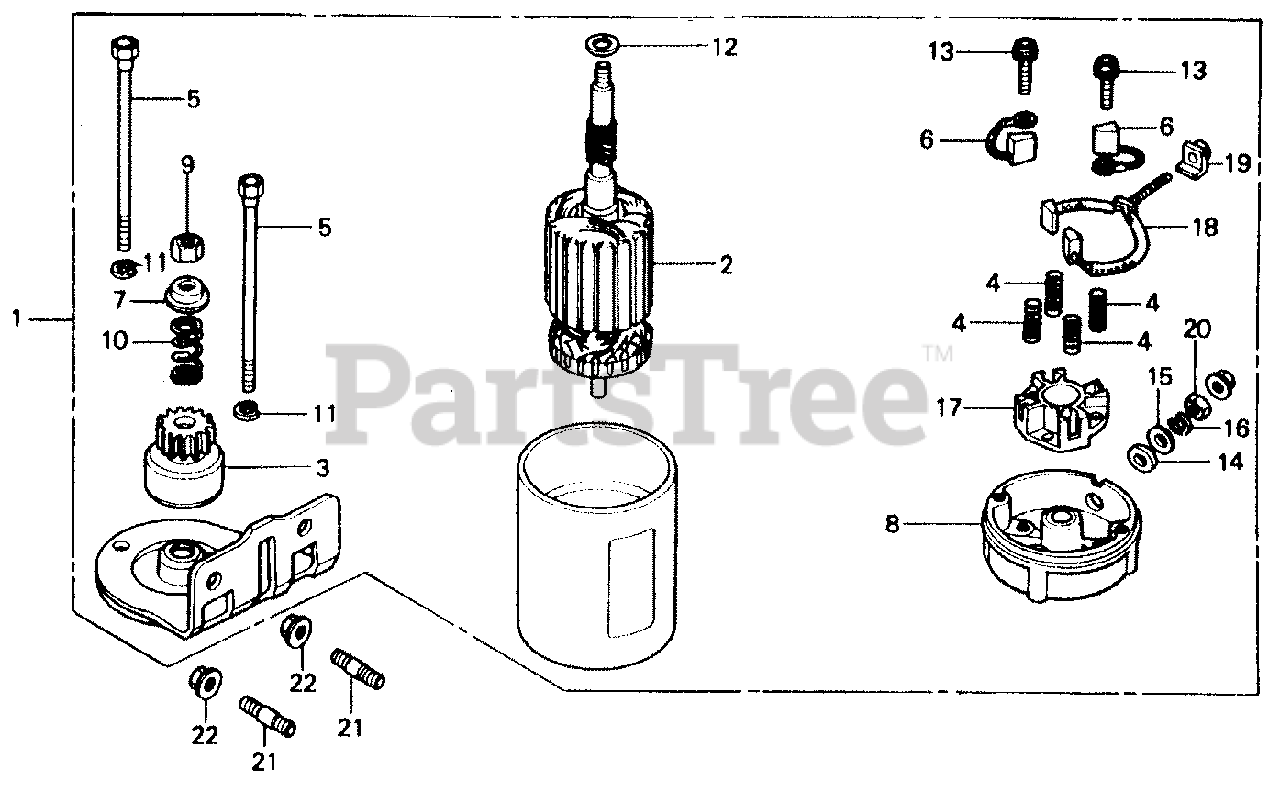

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-891-641

MOTOR ASSY., STARTER (N/A - SEE PIB# 91-0020) (NOT AVAILABLE) (Honda Code 1000181).

$

$

Currently unavailable

2

Honda 31206-891-641

SEE PART DETAILS - SUP; ARMATURE (Honda Code 1000199).

$

$

Currently unavailable

3

Honda 31207-891-641

SEE PART DETAILS - PRI; GEAR, PINION (Honda Code 1000207).

$

$

Currently unavailable

4

Honda KT-10900

SEE PART DETAILS - PRI; BRUSH, SPRING (Honda Code 0818617).

$

$

Currently unavailable

5

Honda 31214-891-641

SEE PART DETAILS - SUP; BOLT, THROUGH (Honda Code 1000223).

$

$

Currently unavailable

6

Honda KT-10900

SEE PART DETAILS - PRI; BRUSH, SPRING (Honda Code 0818617).

$

$

Currently unavailable

7

Honda 31216-891-641

SPACER (NOT AVAILABLE) (Honda Code 1000249).

$

$

Currently unavailable

8

Honda 31219-891-641

SEE PART DETAILS - SUP; COVER, RR. (Honda Code 1000256).

$

$

Currently unavailable

9

Honda 31221-891-641

NUT, STOP (NOT AVAILABLE) (Honda Code 1000264).

$

$

Currently unavailable

10

Honda 31222-891-641

SPRING, ANTI-DRIFT (NOT AVAILABLE) (Honda Code 1000272).

$

$

Currently unavailable

11

Honda WA-5-8CA

SEE PART DETAILS - PRI; WASHER, LOCK (Honda Code 0818484).

$

$

Currently unavailable

12

Honda WA-04310

SEE PART DETAILS - PRI; WASHER (Honda Code 0818500).

$

$

Currently unavailable

13

Honda 31226-891-641

BOLT-WASHER (NOT AVAILABLE) (Honda Code 1000306).

$

$

Currently unavailable

14

Honda 31227-891-641

WASHER, INSULATION (NOT AVAILABLE) (Honda Code 1000314).

$

$

Currently unavailable

15

Honda 31228-891-641

WASHER B (NOT AVAILABLE) (Honda Code 1000322).

$

$

Currently unavailable

16

Honda 31229-891-641

WASHER B, LOCK (NOT AVAILABLE) (Honda Code 1000330).

$

$

Currently unavailable

17

Honda BH-551008

SEE PART DETAILS - PRI; HOLDER, BRUSH (Honda Code 0818526).

$6.49

$

Usually ships in 3-6 days

0

18

Honda KT-10900

SEE PART DETAILS - PRI; BRUSH, SPRING (Honda Code 0818617).

$

$

Currently unavailable

19

Honda BG-551010

SEE PART DETAILS - PRI; BUSHING (Honda Code 0818542).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 31241-891-641

SEE PART DETAILS - SUP; NUT (Honda Code 1000371).

$

$

Currently unavailable

21

Honda 90045-891-000

BOLT, STUD (8X30) (Honda Code 0801019).

$

$

Not available

22

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
