GV400 K1 ADJD (GV400) - Honda Engine, Made in Japan (SN: GV400-2000001 - GV400-2094026) IGNITION COIL (2) + POINTS (2) Parts Diagram

Engine, Made in Japan

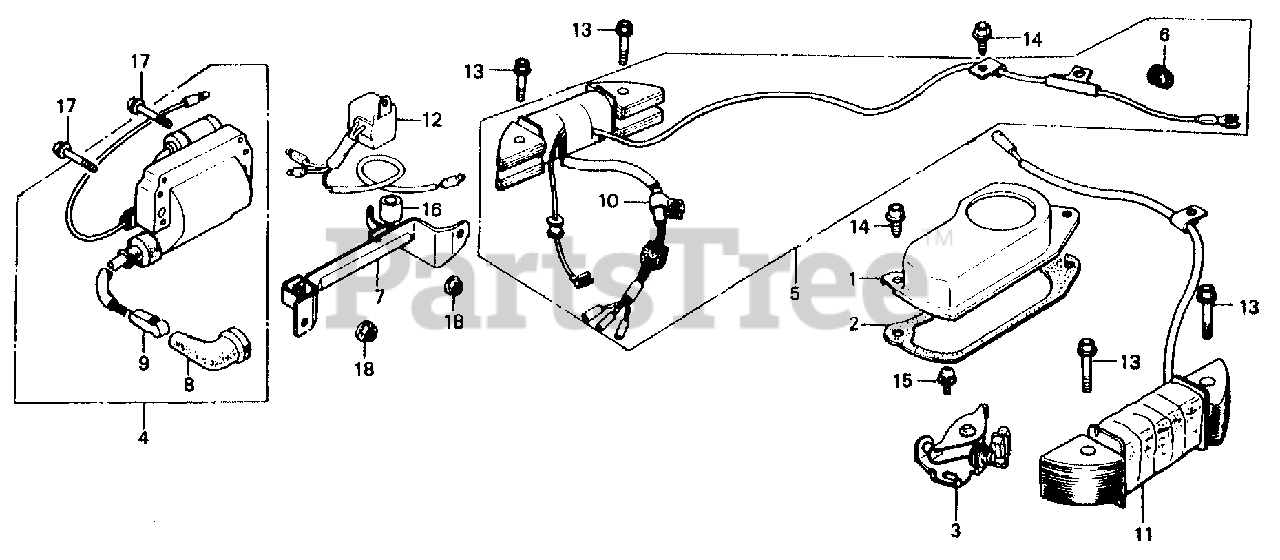

IGNITION COIL (2) + POINTS (2) Parts Diagram

  • Title

1

Honda 30211-890-000

COVER, BREATHER (Honda Code 0755934).

$

$

Not available

2

Honda 30215-889-306

SEE PART DETAILS - PRI; GASKET, COVER (Honda Code 4543161).

$

$

Not available

3

Honda 30280-890-000

POINTS ASSY. (Honda Code 0755959).

$

$

Not available

4

Honda 30500-891-691

SEE PART DETAILS - SUP; COIL ASSY., A.C. IGNITION (Honda Code 0800789).

$

$

Currently unavailable

4

Honda 30500-891-692

SEE PART DETAILS - PRI; COIL ASSY., A.C. IGNITION (NOT AVAILABLE) (Honda Code 0938381).

$

$

Not available

5

Honda 30540-891-691

COIL ASSY., PRIMARY (Honda Code 0800797).

Note: Use up to Engine SN 2015436.

$

$

Not available

5

Honda 30540-891-692

COIL ASSY., PRIMARY (Honda Code 1522416).

Note: (Optional). Use from Engine SN 2015437.

$

$

Not available

6

Honda 30569-888-000

GROMMET, PRIMARY WIRE (Honda Code 0671446).

$

$

Currently unavailable

7

Honda 30586-891-691

STAY, IGNITION COIL & CONTROL MODULE (Honda Code 0800847).

$

$

Currently unavailable

8

Honda 30701-888-013

SEE PART DETAILS - SUP; CAP, IGNITION (SUMITOMO) (Honda Code 1024439).

$

$

Currently unavailable

8

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO) (Honda Code 4483301).

$

$

Not available

9

Honda 30702-888-003

TERMINAL, PLUG (Honda Code 0747782).

$9.49

$

Usually ships in 3-6 days

0

10

Honda 30702-890-000

CLAMP, IGNITION WIRE (Honda Code 0756007).

$6.99

$

Usually ships in 3-6 days

0

11

Honda 31511-891-691

COIL ASSY., LAMP (Honda Code 0800904).

$

$

Currently unavailable

12

Honda 31700-891-641

RECTIFIER, SILICON (Honda Code 0800920).

$

$

Not available

13

Honda 90012-888-000

BOLT, FLANGE (6X40) (Honda Code 0671529).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90012-896-750

SEE PART DETAILS - PRI; BOLT, FLANGE (5X14) (Honda Code 1257187).

Note: (Optional). Use from Engine SN 2004851.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90012-896-750

SEE PART DETAILS - PRI; BOLT, FLANGE (5X14) (Honda Code 1257187).

Note: Use up to Engine SN 2004850.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 91407-891-000

TUBE, WIRE (Honda Code 0801068).

$

$

Not available

17

Honda 93893-06025-10

SCREW-WASHER (6X25) (Honda Code 1001254).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0
