GV400 K1 ADAB (GV400) - Honda Engine, Made in Japan (SN: GV400-2000001 - GV400-2094026) CAMSHAFT + VALVE Parts Diagram

Engine, Made in Japan

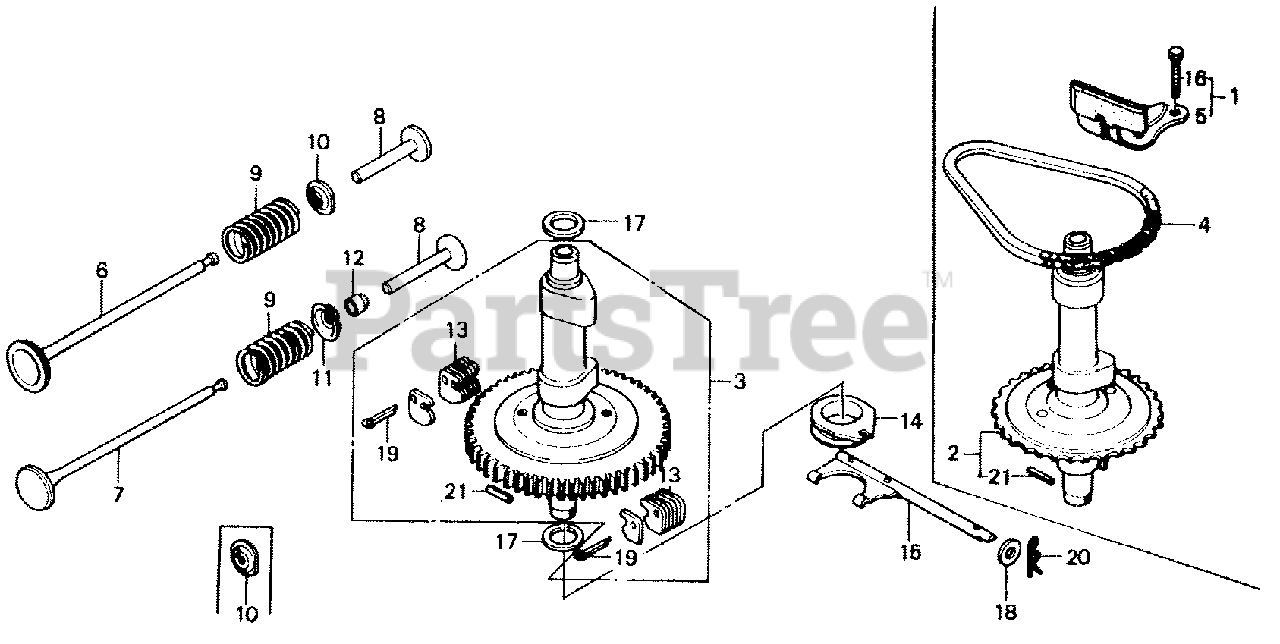

CAMSHAFT + VALVE Parts Diagram

  • Title

3

Honda 14110-891-030

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 0999581).

$

$

Not available

6

Honda 14711-890-000

VALVE, IN. (Honda Code 0754937).

$41.99

$

In Stock, only 1 left!

0

7

Honda 14721-890-000

VALVE, EX. (Honda Code 0754952).

$41.99

$

Usually ships in 3-6 days

0

8

Honda 14732-889-000

LIFTER, VALVE (45.89MM) (Honda Code 0754960).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 14737-889-000

LIFTER, VALVE (46.04MM) (Honda Code 0754978).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 14742-889-000

LIFTER, VALVE (46.19MM) (Honda Code 0754986).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 14747-889-000

LIFTER, VALVE (46.34MM) (Honda Code 0754994).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

9

Honda 14751-890-000

SPRING, VALVE (Honda Code 0755009).

$4.49

$

Usually ships in 3-6 days

0

10

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

$13.99

$

Usually ships in 3-6 days

0

13

Honda 16511-883-300

WEIGHT, GOVERNOR (Honda Code 0636316).

$2.49

$

Usually ships in 3-6 days

0

14

Honda 16531-883-010

SLIDER, GOVERNOR (Honda Code 0649228).

$

$

Not available

15

Honda 16540-891-000

SHAFT, GOVERNOR (Honda Code 0800391).

$24.99

$

Usually ships in 3-6 days

0

17

Honda 90452-883-000

WASHER, THRUST (18MM) (Honda Code 0636928).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM) (Honda Code 0059071).

Note: Use up to Engine SN 2004540.

$

$

Currently unavailable

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 5

0

19

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

20

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

21

Honda 94305-25162

PIN, SPRING (2.5X16) (Honda Code 0671644).

$1.99

$

Usually ships in 3-6 days

0
