GV400 ADJD (GV400) - Honda Engine, Made in Japan (SN: GV400-1000001 - GV400-1006101) GV400 OIL PAN + OIL PUMP Parts Diagram

Engine, Made in Japan

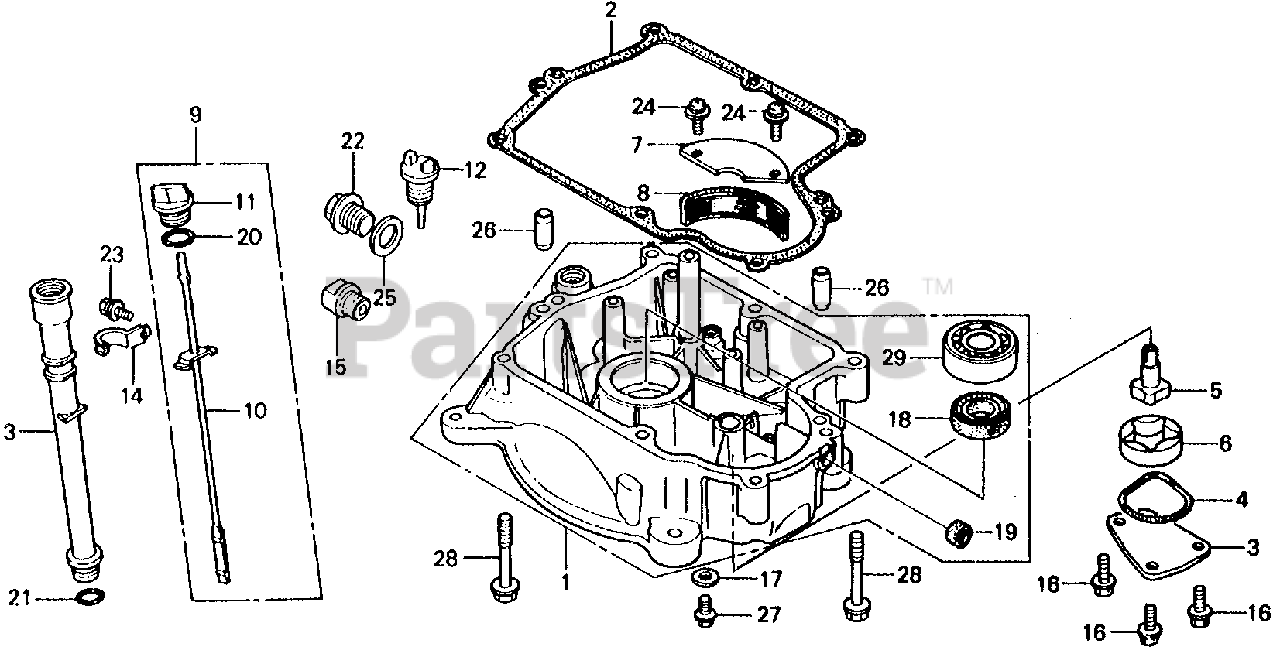

GV400 OIL PAN + OIL PUMP Parts Diagram

  • Title

1

Honda 11300-891-315

PAN ASSY., OIL (Honda Code 0800060).

$

$

Not available

2

Honda 11381-891-307

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 4561882).

$12.99

$

Usually ships in 3-6 days

0

3

Honda 15130-891-000

COVER, OIL PUMP (NOT AVAILABLE) (Honda Code 0800185).

$

$

Currently unavailable

4

Honda 15131-891-003

O-RING (39X2.9) (Honda Code 0800193).

$4.99

$

Usually ships in 3-6 days

0

5

Honda 15330-891-000

ROTOR (INNER) (Honda Code 0800201).

$22.99

$

Usually ships in 3-6 days

0

6

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER) (Honda Code 0800219).

$18.99

$

Usually ships in 3-6 days

0

7

Honda 15334-891-000

PLATE, OIL FILTER (Honda Code 0800227).

$

$

Not available

8

Honda 15421-891-000

SCREEN, OIL FILTER (Honda Code 0800235).

$

$

Currently unavailable

9

Honda 15600-891-680

GAUGE ASSY., OIL LEVEL (Honda Code 0810085).

$

$

Not available

10

Honda 15610-891-680

DIPSTICK, OIL (Honda Code 0810093).

$

$

Not available

11

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

$13.99

$

Usually ships in 3-6 days

0

13

Honda 15630-891-680

EXTENSION, OIL FILLER (Honda Code 0810531).

$55.99

$

Usually ships in 3-6 days

0

14

Honda 15632-891-680

CLAMP, EXTENSION (Honda Code 0810523).

$6.99

$

Usually ships in 3-6 days

0

15

Honda 15641-891-000

ADAPTER, OIL DRAIN EXTENSION (Honda Code 0800292).

$

$

Not available

16

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

17

Honda 90488-700-000

WASHER A (8MM) (Honda Code 0130534).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

19

Honda 91231-891-003

OIL SEAL (6X11X4) (Honda Code 0801043).

$2.99

$

In Stock, only 1 left!

0

20

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

In Stock, Qty 11

0

21

Honda 91303-891-680

O-RING (16.8X2.4) (Honda Code 0810101).

$

$

Not available

22

Honda 92800-20000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635).

$7.49

$

Usually ships in 3-6 days

0

23

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10) (Honda Code 2488443).

$2.49

$

In Stock, Qty 5

0

23

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10) (Honda Code 0636944).
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

24

Honda 93892-05012-00

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0691808).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, only 4 left!

0

26

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

27

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0

28

Honda 95700-08045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 0583633).
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 14

0

28

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$2.99

$

In Stock, Qty 14

0

29

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
