GV400 ADJB (GV400) - Honda Engine, Made in Japan (SN: GV400-1000001 - GV400-1006101) CONTROL LEVER + GOVERNOR ARM Parts Diagram

Engine, Made in Japan

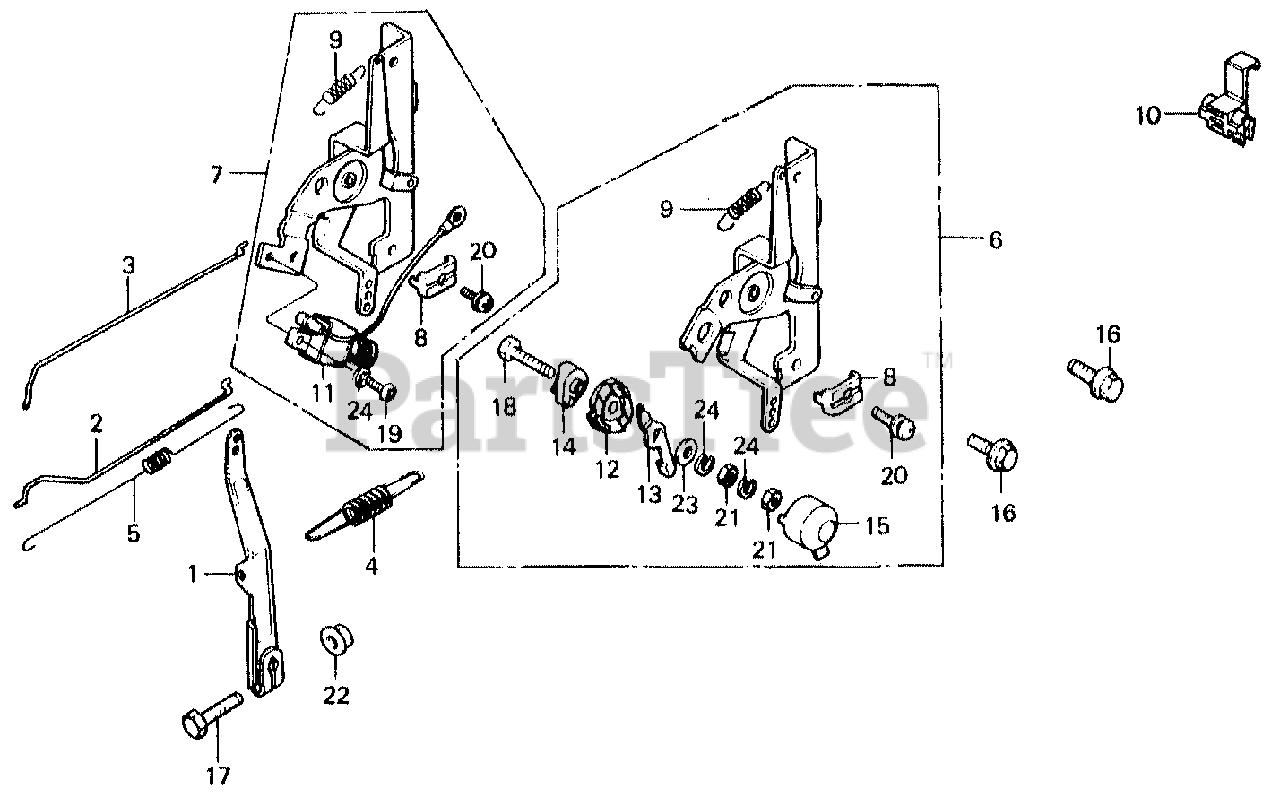

CONTROL LEVER + GOVERNOR ARM Parts Diagram

  • Title

1

Honda 16551-891-000

ARM, GOVERNOR (Honda Code 0800409).

$

$

Currently unavailable

2

Honda 16555-891-000

ROD, GOVERNOR (Honda Code 0800417).

$3.99

$

In Stock, only 2 left!

0

3

Honda 16556-891-010

SEE PART DETAILS - PRI; ROD, CHOKE (Honda Code 0929489).

$

$

Not available

4

Honda 16561-891-010

SEE PART DETAILS - PRI; SPRING, GOVERNOR (Honda Code 0917898).

$

$

Not available

5

Honda 16562-891-000

SPRING, THROTTLE RETURN (Honda Code 0800441).

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16570-891-030

SEE PART DETAILS - PRI; CONTROL ASSY. (Honda Code 0958488).

$

$

Not available

8

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16592-883-310

SEE PART DETAILS - PRI; SPRING, CABLE RETURN (Honda Code 0743203).

$3.49

$

In Stock, only 2 left!

0

10

Honda 32111-891-670

CONNECTOR, WIRE (Honda Code 0941211).

$

$

Not available

12

Honda 36111-891-000

BASE, SWITCH (Honda Code 0800938).

$

$

Not available

13

Honda 36112-891-000

CONTACT, SWITCH (Honda Code 0800946).

$

$

Not available

14

Honda 36113-891-000

WASHER, INSULATOR (Honda Code 0800953).

$

$

Not available

16

Honda 90061-161-000

BOLT, FLANGE (6X16) (Honda Code 0810069).

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

18

Honda 92000-04020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (4X20) (Honda Code 1729912).

$

$

Not available

20

Honda 93893-05016-00

SCREW-WASHER (5X16) (Honda Code 0821512).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94001-04000-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0209684).

$1.49

$

In Stock, only 1 left!

0

22

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

23

Honda 94101-04000

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0059048).

$1.49

$

In Stock, only 1 left!

0

24

Honda 94111-04000

WASHER, SPRING (4MM) (Honda Code 0058958).

$1.49

$

Usually ships in 3-6 days

0
