GV400 ADAB (GV400) - Honda Engine, Made in Japan (SN: GV400-1000001 - GV400-1006101) OIL PAN + OIL PUMP (GV400) Parts Diagram

Engine, Made in Japan

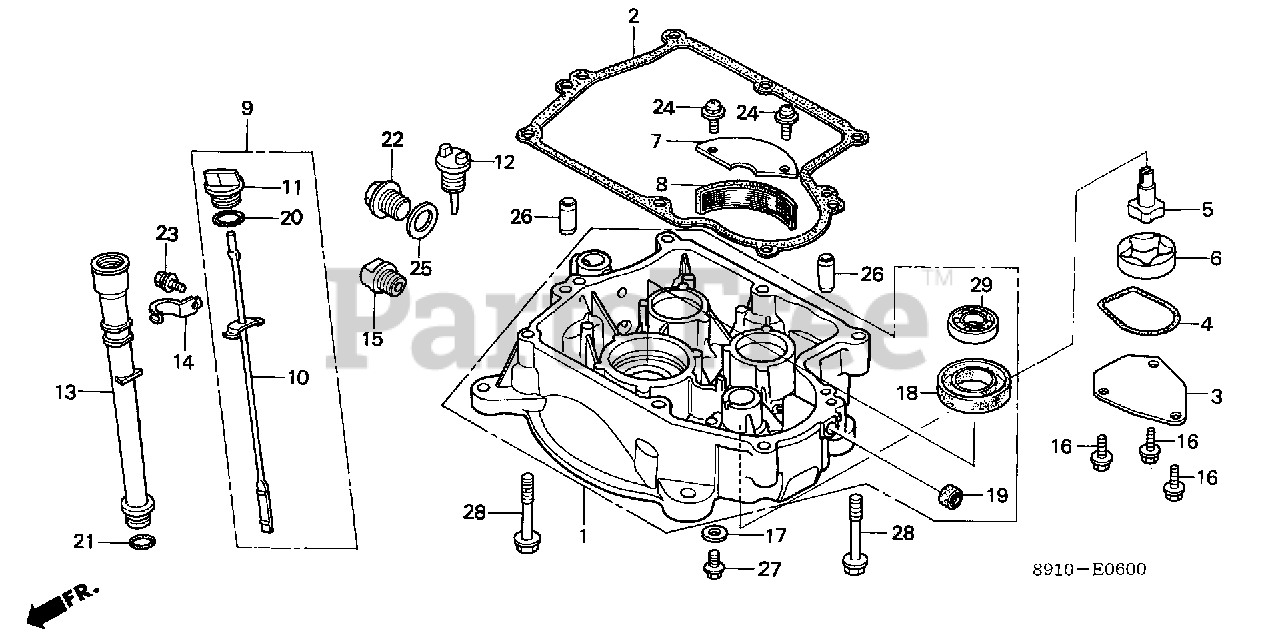

OIL PAN + OIL PUMP (GV400) Parts Diagram

  • Title

1

Honda 11300-891-315

PAN ASSY., OIL

$

$

Not available

2

Honda 11381-891-307

GASKET, OIL PAN

$13.99

$

Usually ships in 3-6 days

0

3

Honda 15130-891-000

COVER, OIL PUMP (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 15131-891-003

O-RING (39X2.9)

$5.49

$

Usually ships in 3-6 days

0

5

Honda 15330-891-000

ROTOR (INNER)

$24.99

$

Usually ships in 3-6 days

0

6

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$18.99

$

Usually ships in 3-6 days

0

7

Honda 15334-891-000

PLATE, OIL FILTER

$

$

Not available

8

Honda 15421-891-000

SCREEN, OIL FILTER

$

$

Currently unavailable

12

Honda 15620-891-000

CAP, OIL

$8.49

$

Usually ships in 3-6 days

0

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

17

Honda 90488-700-000

WASHER A (8MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

19

Honda 91231-891-003

OIL SEAL (6X11X4) (ARAI)

$3.49

$

In Stock, only 1 left!

0

22

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

24

Honda 93892-05012-00

SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

27

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

28

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 8

0

28

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, Qty 8

0

29

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0
