GV35 N2 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1025027) RECOIL STARTER Parts Diagram

Engine, Made in Japan

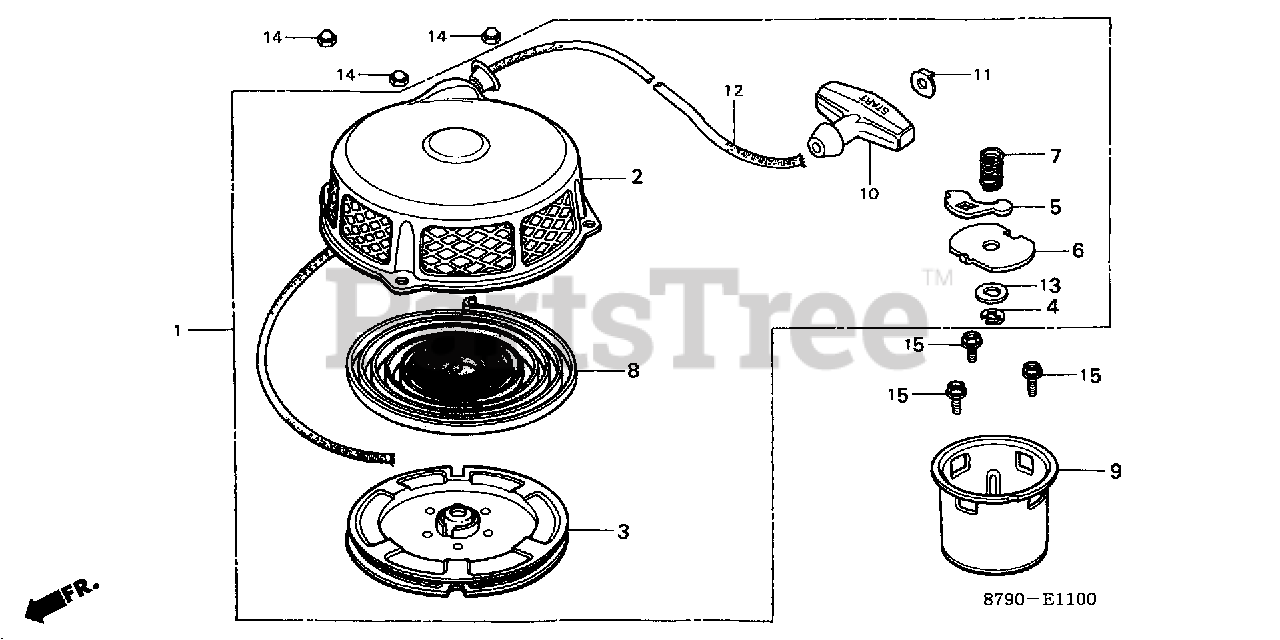

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-879-004H

STARTER ASSY., RECOIL

Note: Use up to Engine SN 1005727.

$

$

Currently unavailable

1

Honda 28400-879-014H

STARTER ASSY., RECOIL (NOT AVAILABLE)

Note: Use from Engine SN 1005728.

$

$

Currently unavailable

2

Honda 28410-879-004H

CASE, RECOIL STARTER

$

$

Currently unavailable

3

Honda 28420-878-810

PULLEY, RECOIL STARTER (NOT AVAILABLE)

$

$

Not available

4

Honda 28423-878-810

E-RING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 28441-878-810

RATCHET, STARTER (NOT AVAILABLE)

$4.49

$

Usually ships in 0 days

0

6

Honda 28445-878-810

PLATE, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 28446-878-810

SPRING, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 28447-878-810

SPRING, STARTER RETURN

$

$

Not available

9

Honda 28454-878-000

PULLEY, STARTER

Note: Use up to Engine SN 1005727.

$

$

Currently unavailable

9

Honda 28454-878-010

PULLEY, STARTER (NOT AVAILABLE)

Note: Use from Engine SN 1005728.

$

$

Currently unavailable

10

Honda 28461-878-810

GRIP, STARTER

$

$

Not available

11

Honda 28465-878-810

STOPPER, ROPE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 28471-878-810

ROPE, STARTER (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 90482-878-810

WASHER

Note: Use up to Engine SN 1005727.

$

$

Currently unavailable

13

Honda 90482-878-811

WASHER (NOT AVAILABLE)

Note: Use from Engine SN 1005728.

$2.99

$

Usually ships in 3-6 days

0

14

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
