GV35 N2 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1025027) FUEL TANK (N1,N2) + FUEL VALVE Parts Diagram

Engine, Made in Japan

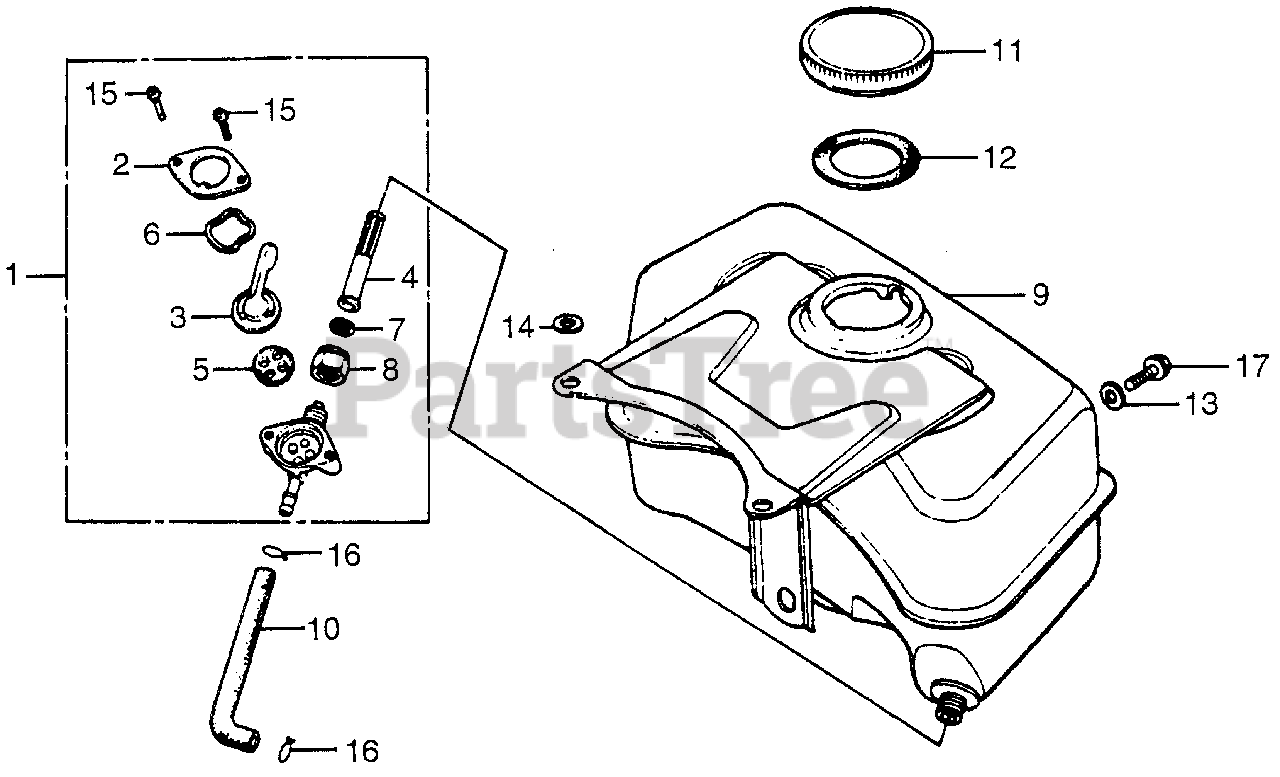

FUEL TANK (N1,N2) + FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-878-005

PETCOCK ASSY. (NOT AVAILABLE) (Honda Code 0441626).

$

$

Currently unavailable

2

Honda 16952-081-005

COVER, PETCOCK (NOT AVAILABLE) (Honda Code 0209759).

$

$

Currently unavailable

3

Honda 16953-081-005

LEVER, VALVE (NOT AVAILABLE) (Honda Code 0209767).

$

$

Currently unavailable

4

Honda 16954-081-015

SEE PART DETAILS - PRI; SCREEN, STRAINER (Honda Code 0441634).

$

$

Not available

5

Honda 16955-268-020

GASKET, VALVE (Honda Code 0042234).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 16964-720-005

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (Honda Code 1066786).
(Superseded to 16956-ZE1-811)

$3.99

$

In Stock, only 1 left!

0

7

Honda 16958-081-005

GASKET, FUEL STRAINER CUP (Honda Code 0442145).

$

$

Not available

8

Honda 16962-081-005

NUT, TURN BUCKLE (NOT AVAILABLE) (Honda Code 0209791).

$

$

Currently unavailable

9

Honda 17510-879-020Y

SEE PART DETAILS - PRI; TANK, FUEL (Honda Code 0636993).

$

$

Not available

10

Honda 17581-879-670

SEE PART DETAILS - PRI; TUBE, FUEL (Honda Code 0484675).

$

$

Not available

11

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 0835496).

$

$

Not available

12

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2831444).
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

13

Honda 90485-286-000

WASHER (6MM) (Honda Code 0155077).

Note: Use from Engine SN 1000428 to 1008819.

$2.49

$

In Stock, only 1 left!

0

13

Honda 90563-355-000

SEE PART DETAILS - PRI; WASHER, WHEEL (6MM) (Honda Code 0326306).

Note: Use from Engine SN 1008820.

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90485-286-000

WASHER (6MM) (Honda Code 0155077).

Note: Use from Engine SN 1018928.

$2.49

$

In Stock, only 1 left!

0

15

Honda 93500-03006-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0166652).

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0
