GV35 N2 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1025027) FUEL TANK (N1,N2) Parts Diagram

Engine, Made in Japan

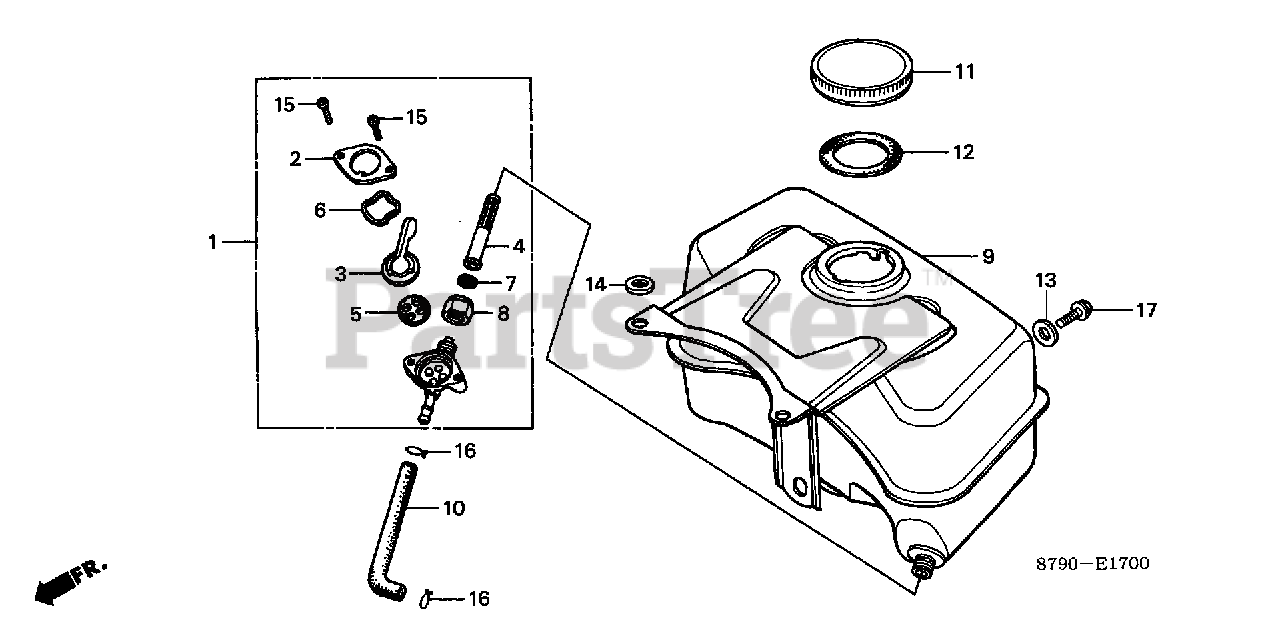

FUEL TANK (N1,N2) Parts Diagram

  • Title

1

Honda 16950-878-005

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16952-081-005

COVER, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16953-081-005

LEVER, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16954-081-015

SCREEN, STRAINER

$

$

Not available

5

Honda 16955-268-020

GASKET, PETCOCK VALVE

$6.49

$

Usually ships in 3-6 days

0

6

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, only 1 left!

0

6

Honda 16964-720-005

SEE PART DETAILS - SUP; SPRING, PETCOCK LEVER
(Superseded to 16956-ZE1-811)

$3.99

$

In Stock, only 1 left!

0

7

Honda 16958-081-005

GASKET, FUEL STRAINER CUP

$

$

Not available

8

Honda 16962-081-005

NUT, TURN BUCKLE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 17510-879-020Y

TANK, FUEL

$

$

Not available

10

Honda 17581-879-670

TUBE, FUEL

$

$

Not available

11

Honda 17620-044-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-102-730)

$

$

Not available

11

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, SUB-TANK

$

$

Not available

12

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

13

Honda 90485-286-000

WASHER (6MM)

Note: Use from Engine SN 1000428 to 1008819.

$2.49

$

In Stock, only 1 left!

0

13

Honda 90563-355-000

WASHER, WHEEL (6MM)

Note: Use from Engine SN 1008820.

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90485-286-000

WASHER (6MM)

Note: Use from Engine SN 1018928.

$2.49

$

In Stock, only 1 left!

0

15

Honda 93500-03006-0A

SCREW, PAN (3X6)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
