GV35 A1 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1026807) FUEL TANK (A1,A2) Parts Diagram

Engine, Made in Japan

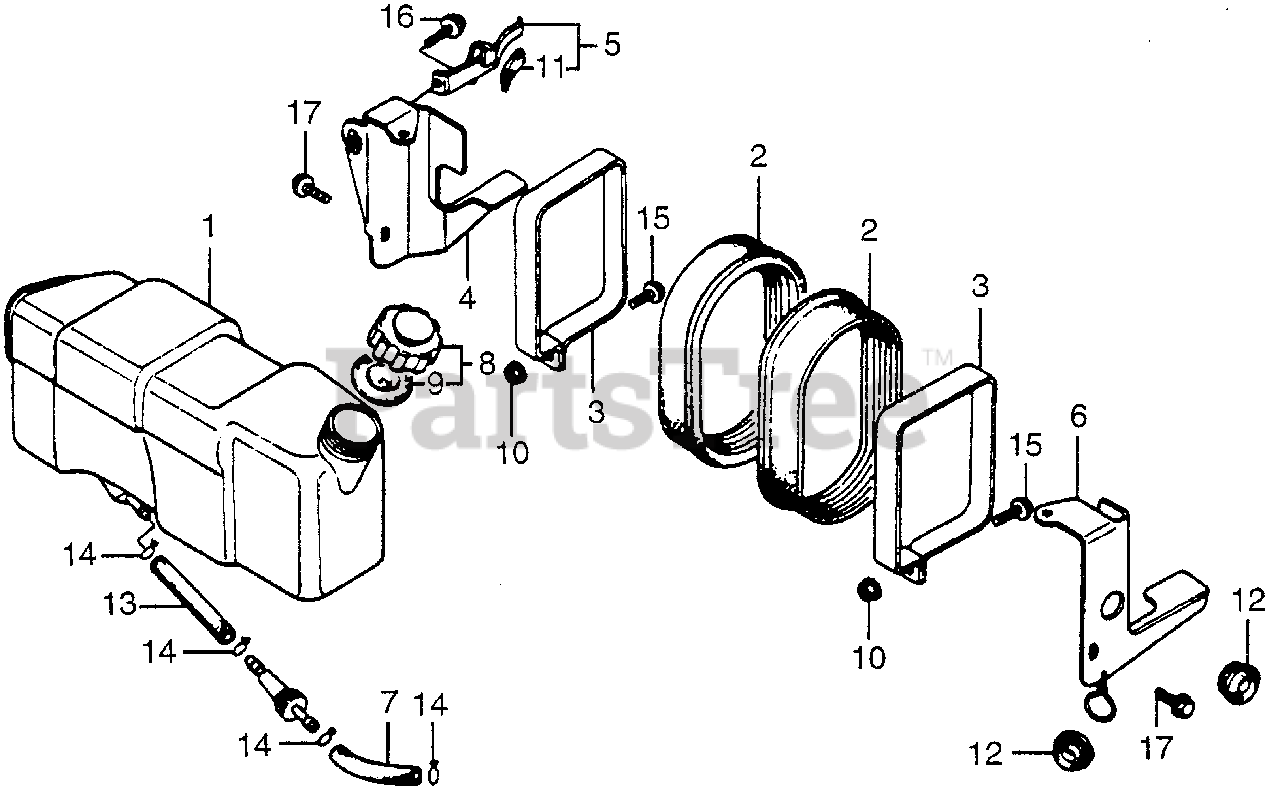

FUEL TANK (A1,A2) Parts Diagram

  • Title

1

Honda 17500-879-670ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK) (Honda Code 7349384).

$

$

Not available

2

Honda 17515-879-670

RUBBER, TANK SEAT (Honda Code 0484634).

$

$

Not available

3

Honda 17518-879-670

BAND, FUEL TANK (Honda Code 0484642).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17521-879-670

STAY A, TANK (Honda Code 0484659).

$

$

Not available

5

Honda 17523-879-305

PLATE ASSY., TANK SET (Honda Code 0647537).

Note: Use from Engine SN 1015919.

$

$

Not available

6

Honda 17525-879-670

STAY B, TANK (Honda Code 0484667).

$

$

Not available

7

Honda 17581-879-670

SEE PART DETAILS - PRI; TUBE, FUEL (Honda Code 0484675).

$

$

Not available

8

Honda 17620-879-670

CAP ASSY., FUEL (NOT AVAILABLE) (Honda Code 0484683).

$

$

Currently unavailable

9

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 1420645).

$

$

Not available

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

11

Honda 63126-579-010

RUBBER, HOOD (Honda Code 0547166).

Note: Use from Engine SN 1015919.

$

$

Currently unavailable

12

Honda 70376-632-000

GROMMET, BREATHER PIPE (NOT AVAILABLE) (Honda Code 0549105).

$

$

Currently unavailable

13

Honda 95001-55008-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (5.5X8000) (5.5X55) (Honda Code 4260352).

$124.99

$

Usually ships in 3-6 days

0

14

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

Note: Use from Engine SN 1015919.

$2.49

$

In Stock, Qty 9

0

17

Honda 95700-06018-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18) (Honda Code 0252270).

$

$

Currently unavailable

17

Honda 95701-06018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18) (Honda Code 2552487).

$2.49

$

Usually ships in 3-6 days

0
