GV35 A1 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1026807) FUEL TANK (A1,A2) Parts Diagram

Engine, Made in Japan

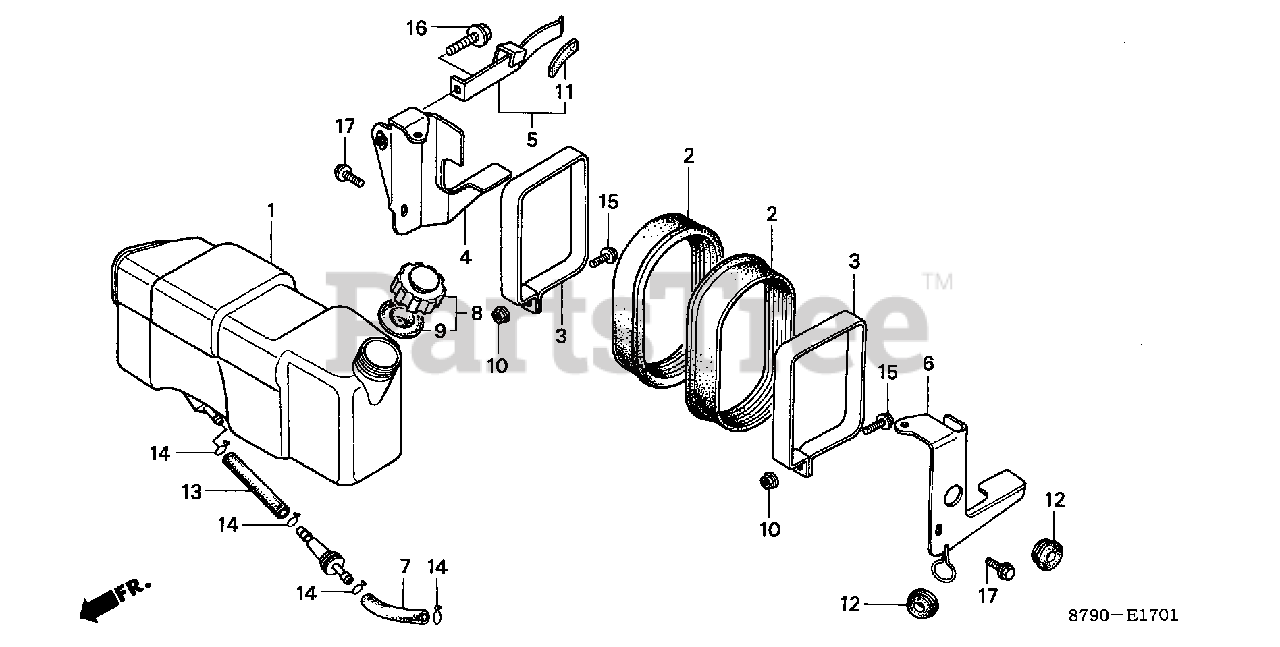

FUEL TANK (A1,A2) Parts Diagram

  • Title

1

Honda 17500-879-670ZA

SEE PART DETAILS - PRI; TANK, FUEL

$

$

Not available

2

Honda 17515-879-670

RUBBER, TANK SEAT

$

$

Not available

3

Honda 17518-879-670

BAND, FUEL TANK

$27.99

$

Usually ships in 3-6 days

0

4

Honda 17521-879-670

STAY A, TANK

$

$

Not available

5

Honda 17523-879-305

PLATE ASSY., TANK SET

Note: Use from Engine SN 1015919.

$

$

Not available

6

Honda 17525-879-670

STAY B, TANK

$

$

Not available

7

Honda 17581-879-670

TUBE, FUEL

$

$

Not available

8

Honda 17620-879-670

CAP ASSY., FUEL (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$

$

Not available

10

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 63126-579-010

CUSHION, HOOD (NOT AVAILABLE)

Note: Use from Engine SN 1015919.

$

$

Currently unavailable

12

Honda 70376-632-000

GROMMET, BREATHER PIPE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X55)

$70.99

$

In Stock, only 1 left!

0

14

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0

15

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-06014-08

BOLT, FLANGE (6X14)

Note: Use from Engine SN 1015919.

$2.49

$

In Stock, Qty 9

0

17

Honda 95701-06018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0
