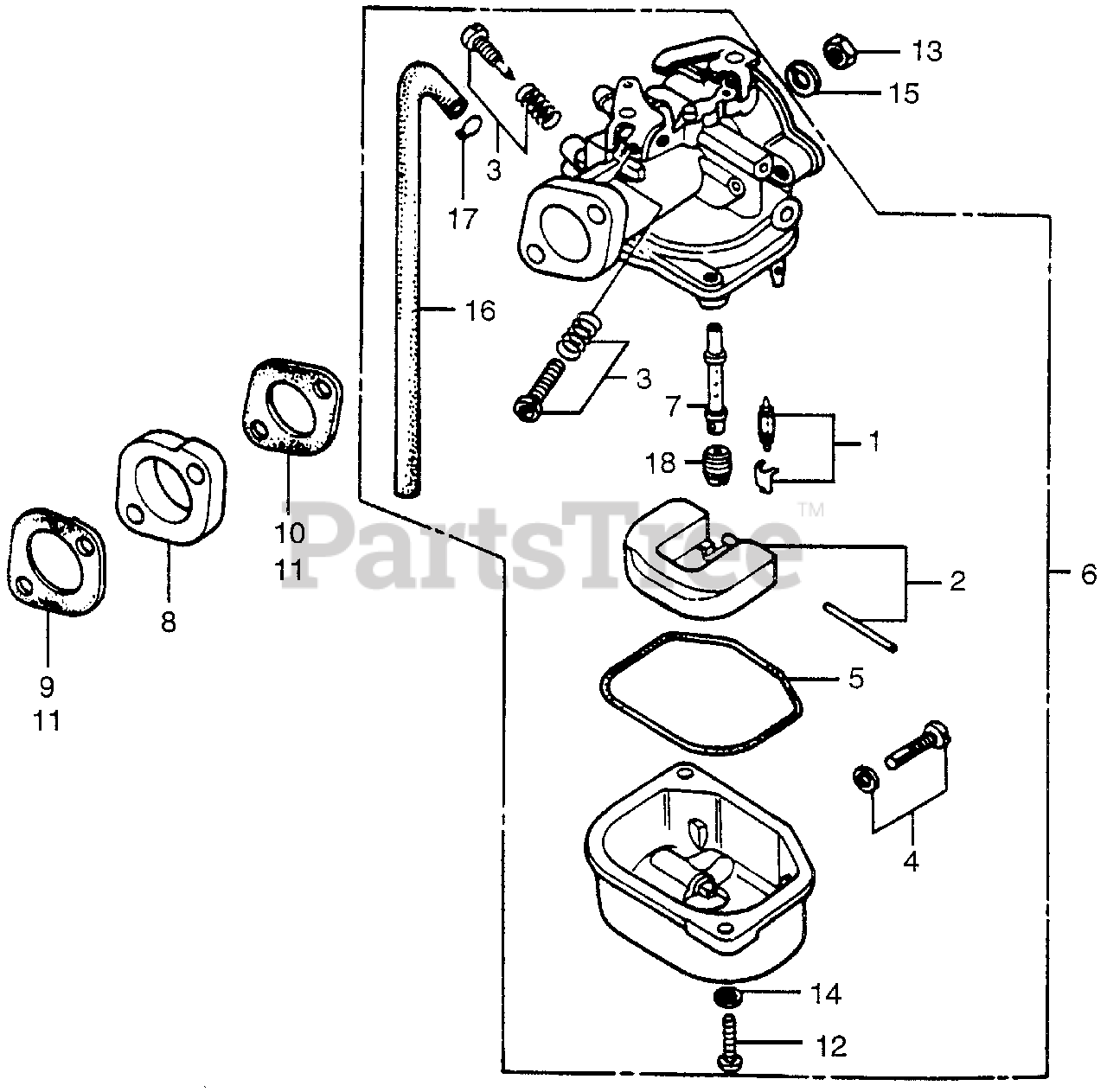

GV35 A1 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1026807) CARBURETOR Parts Diagram

Engine, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 16011-721-004

VALVE SET, FLOAT (NOT AVAILABLE) (Honda Code 0441378).

$

$

Not available

2

Honda 16013-721-014

SEE PART DETAILS - PRI; FLOAT SET (Honda Code 0661595).

$

$

Not available

3

Honda 16016-721-004

SCREW SET (Honda Code 0441394).

$

$

Not available

4

Honda 16024-879-004

SCREW SET, DRAIN (Honda Code 0452243).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16075-878-004

O-RING (NOT AVAILABLE) (Honda Code 0441402).

$

$

Currently unavailable

6

Honda 16100-879-335

SEE PART DETAILS - PRI; CARBURETOR ASSY. (NOT AVAILABLE) (Honda Code 1098763).

$

$

Currently unavailable

7

Honda 16166-879-004

NOZZLE, MAIN (NOT AVAILABLE) (Honda Code 0452268).

$

$

Currently unavailable

8

Honda 16211-878-000

INSULATOR, CARBURETOR (NOT AVAILABLE) (Honda Code 0441444).

Note: Use up to Engine SN 1006727.

$

$

Currently unavailable

8

Honda 16211-879-000

INSULATOR, CARBURETOR (Honda Code 0488791).

Note: Use from Engine SN 1006728.

$

$

Not available

11

Honda 16222-879-000

GASKET, CARBURETOR INSULATOR (Honda Code 0488809).

Note: Use from Engine SN 1006728.

$

$

Currently unavailable

12

Honda 93500-04012-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0169466).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 0590455).

$1.99

$

In Stock, Qty 6

0

14

Honda 94111-04000

WASHER, SPRING (4MM) (Honda Code 0058958).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95001-35003-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (3.5X3000) (3.5X120) (Honda Code 4260329).

Note: Use from Engine SN 1005728.

$31.99

$

In Stock, only 1 left!

0

17

Honda 95002-02070

CLIP, TUBE (B7) (Honda Code 0250639).

Note: Use from Engine SN 1005728.

$2.49

$

In Stock, Qty 5

0

18

Honda 99105-663-0680

JET, AIR (#68) (Honda Code 0488833).

Note: Use from Engine SN 1000528.

$

$

Currently unavailable

18

Honda 99105-663-0700

JET, AIR (#70) (NOT AVAILABLE) (Honda Code 0442095).

Note: Use up to Engine SN 1000527.

$

$

Currently unavailable
