GV200 N50 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) FLYWHEEL + C.D.I. UNIT Parts Diagram

Engine, Made in Japan

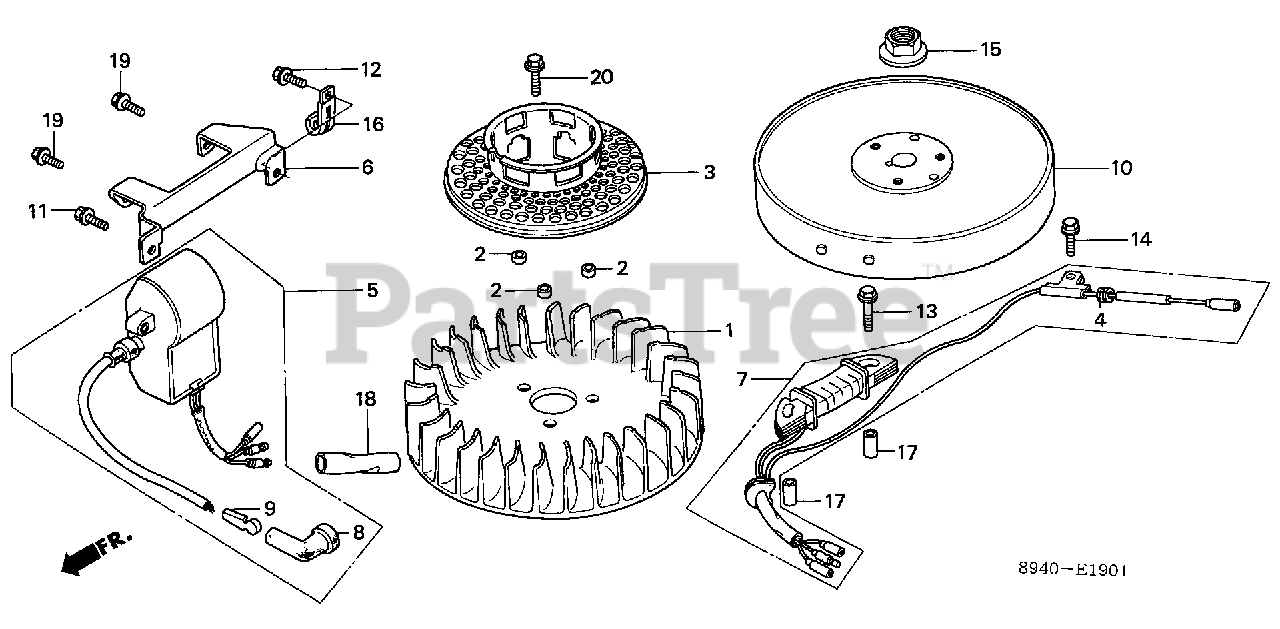

FLYWHEEL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 19511-883-020

SEE PART DETAILS - PRI; FAN, COOLING

$17.99

$

Usually ships in 3-6 days

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-020

SEE PART DETAILS - SUP; PULLEY, STARTER

Note: Use up to Engine SN 1025504.

$

$

Currently unavailable

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$

$

Not available

4

Honda 30569-888-000

GROMMET, PRIMARY WIRE

$

$

Currently unavailable

5

Honda 30580-952-754

SEE PART DETAILS - PRI; MODULE, IGNITION CONTROL (CDI)

$

$

Not available

6

Honda 30586-894-000

STAY, IGNITION CONTROL MODULE

$7.99

$

Usually ships in 3-6 days

0

7

Honda 30590-894-682

COIL ASSY., EXCITER

$

$

Not available

8

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

$

$

Not available

8

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

Note: Use from Engine SN 1040180.

$

$

Not available

9

Honda 30702-888-003

TERMINAL, PLUG

$9.49

$

Usually ships in 3-6 days

0

10

Honda 31100-883-751

FLYWHEEL (C.D.I.)

$

$

Not available

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

12

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, only 3 left!

0

14

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

16

Honda 91405-671-000

CLIP, CABLE

$12.99

$

Usually ships in 3-6 days

0

17

Honda 94301-08140

PIN A, DOWEL (8X14) (YAMADA)

$2.99

$

In Stock, Qty 10

0

18

Honda 95003-50005-20

TUBE, VINYL (16X19X50)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
