GV200 N40 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) CYLINDER HEAD + CYLINDER BARREL Parts Diagram

Engine, Made in Japan

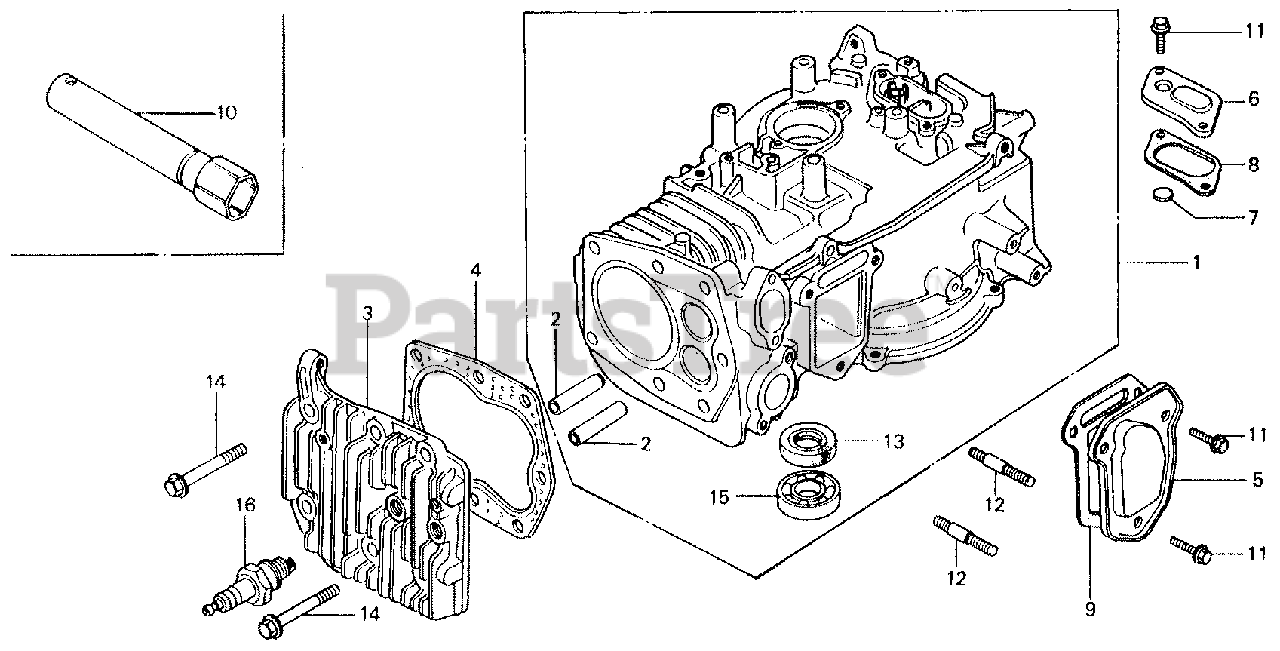

CYLINDER HEAD + CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-894-305

CYLINDER ASSY. (Honda Code 0820993).

$

$

Not available

2

Honda 12133-883-306

GUIDE, VALVE (OS) (Honda Code 4230561).

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

2

Honda 12134-883-305

GUIDE, VALVE (OS) (Honda Code 0635508).
(Superseded to 12133-883-306)

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

3

Honda 12221-894-305

CYLINDER HEAD (Honda Code 0821009).

$

$

Not available

4

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4328340).
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4428496).
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4917209).

$30.99

$

Usually ships in 3-6 days

0

5

Honda 12361-894-000

COVER, TAPPET (Honda Code 0821017).

$16.99

$

Usually ships in 3-6 days

0

6

Honda 12370-888-000

CAP, BREATHER CHAMBER (Honda Code 0671727).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 12372-879-000

VALVE, BREATHER (Honda Code 0452151).

$2.49

$

In Stock, only 2 left!

0

8

Honda 12373-888-000

GASKET, BREATHER CAP (Honda Code 0671735).

$2.99

$

In Stock, only 1 left!

0

9

Honda 12375-883-000

GASKET, TAPPET COVER (Honda Code 0635557).

$4.49

$

In Stock, only 2 left!

0

10

Honda 89216-888-000

WRENCH, SPARK PLUG (Honda Code 0747907).

$

$

Not available

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

In Stock, Qty 8

0

13

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 8

0

14

Honda 95700-08045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 0583633).
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 4 left!

0

14

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$2.99

$

In Stock, only 4 left!

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0

16

Honda 98073-56944

SPARK PLUG (BPMR6A-10) (NGK) (Honda Code 0743195).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 98073-56954

SPARK PLUG (W20MPR-U10) (DENSO) (Honda Code 1255264).

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0
