GV200 N40 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) CYLINDER HEAD + CYLINDER Parts Diagram

Engine, Made in Japan

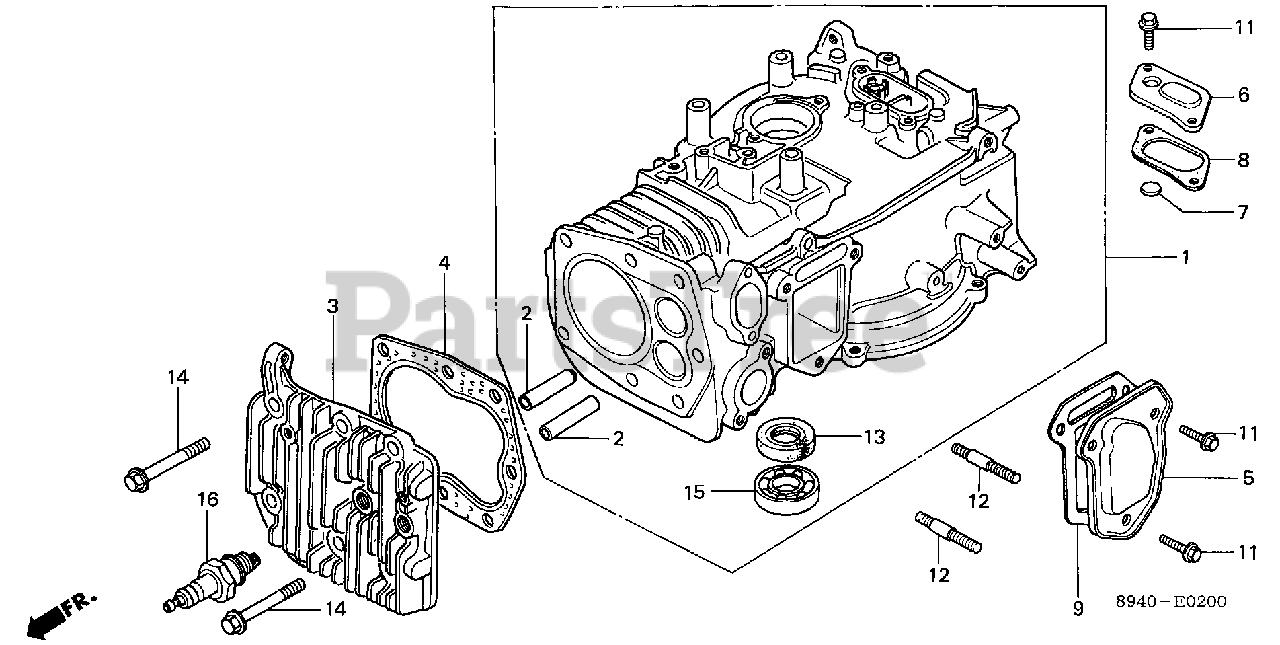

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title
1

Honda 12000-894-305

CYLINDER ASSY.

$

$

Not available

2

Honda 12133-883-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$18.99

$

Usually ships in 3-6 days

0

2

Honda 12134-883-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS)
(Superseded to 12133-883-306)

$18.99

$

Usually ships in 3-6 days

0

3

Honda 12221-894-305

CYLINDER HEAD

$

$

Not available

4

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$31.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$31.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$31.99

$

Usually ships in 3-6 days

0

5

Honda 12361-894-000

COVER, TAPPET

$18.99

$

Usually ships in 3-6 days

0

6

Honda 12370-888-000

CAP, BREATHER CHAMBER

$14.99

$

Usually ships in 3-6 days

0

7

Honda 12372-879-000

VALVE, BREATHER

$2.99

$

In Stock, only 2 left!

0

8

Honda 12373-888-000

GASKET, BREATHER CAP

$3.49

$

In Stock, only 1 left!

0

9

Honda 12375-883-000

GASKET, TAPPET COVER

$4.49

$

In Stock, only 2 left!

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

13

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

13

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

14

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 8

0

14

Honda 95701-08045-08

BOLT, FLANGE (8X45) (DENSO)

$2.99

$

In Stock, Qty 8

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0

16

Honda 98073-56944

SPARK PLUG (BPMR6A-10) (NGK)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 98073-56954

SPARK PLUG (W20MPR-U10)

$3.99

$

Usually ships in 3-6 days

0
