GV200 N1B (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) VALVE + CAMSHAFT Parts Diagram

Engine, Made in Japan

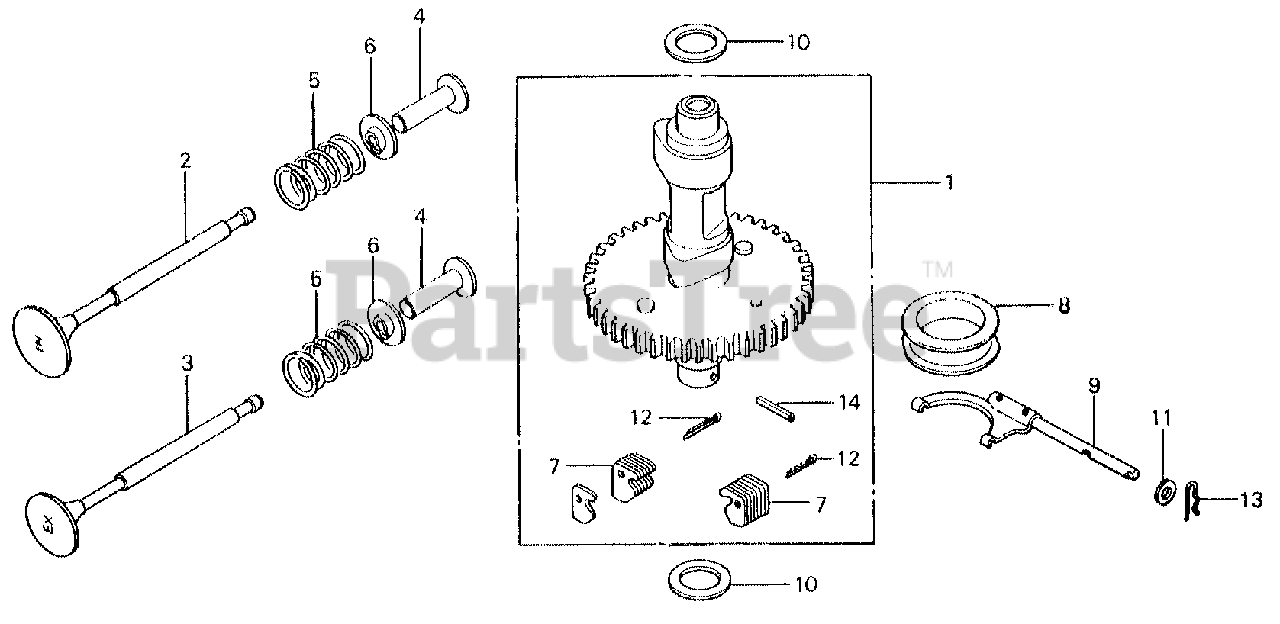

VALVE + CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-894-010

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1024306).

$

$

Not available

2

Honda 14711-883-000

VALVE, IN. (Honda Code 0635698).

$33.99

$

Usually ships in 3-6 days

0

3

Honda 14721-883-000

VALVE, EX. (Honda Code 0635706).

$37.99

$

Usually ships in 3-6 days

0

4

Honda 14736-883-010

SEE PART DETAILS - PRI; LIFTER, VALVE (39.6MM) (Honda Code 0676254).

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

4

Honda 14746-883-010

SEE PART DETAILS - PRI; LIFTER, VALVE (39.9MM) (Honda Code 0676247).

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

5

Honda 14751-883-000

SPRING, VALVE (Honda Code 0636217).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 16511-883-300

WEIGHT, GOVERNOR (Honda Code 0636316).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-883-010

SLIDER, GOVERNOR (Honda Code 0649228).

$

$

Not available

9

Honda 16540-894-000

SHAFT, GOVERNOR (Honda Code 0821306).

$14.99

$

Usually ships in 0 days

0

10

Honda 90452-883-000

WASHER, THRUST (18MM) (Honda Code 0636928).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM) (Honda Code 0059071).

Note: Use up to Engine SN 1046909.

$

$

Currently unavailable

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

12

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

13

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

14

Honda 94305-25162

PIN, SPRING (2.5X16) (Honda Code 0671644).

$1.99

$

Usually ships in 3-6 days

0
