GV200 N1A (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) FLYWHEEL + POINTS Parts Diagram

Engine, Made in Japan

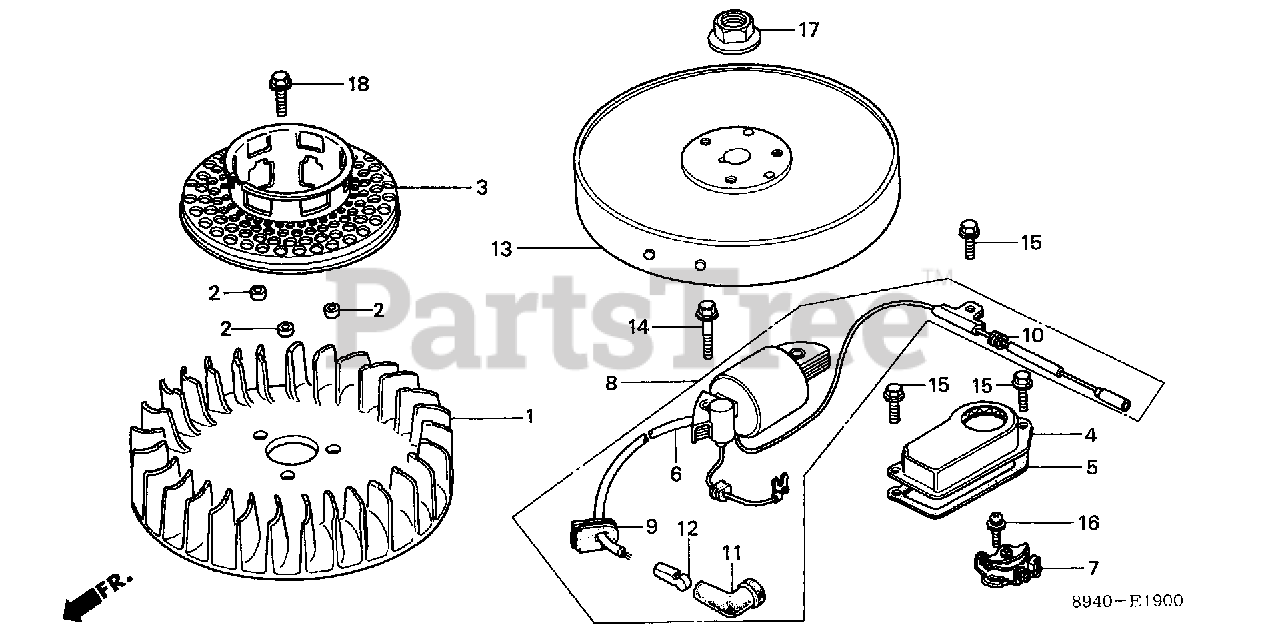

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-883-020

SEE PART DETAILS - PRI; FAN, COOLING

$17.99

$

Usually ships in 3-6 days

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-020

SEE PART DETAILS - SUP; PULLEY, STARTER

Note: Use up to Engine SN 1025504.

$

$

Currently unavailable

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$

$

Not available

4

Honda 30211-883-000

COVER, POINTS

$

$

Not available

5

Honda 30215-883-306

GASKET, POINT COVER

$

$

Not available

6

Honda 30251-883-003

CONDENSER

Note: Use from Engine SN 1026689.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY.

$33.99

$

Usually ships in 3-6 days

0

8

Honda 30560-894-003

COIL ASSY., IGNITION

Note: Use up to Engine SN 1021707.

$

$

Currently unavailable

8

Honda 30560-894-013

COIL ASSY., IGNITION (NOT AVAILABLE)

Note: Use from Engine SN 1021708.

$

$

Not available

9

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30569-888-000

GROMMET, PRIMARY WIRE

$

$

Currently unavailable

11

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

$

$

Not available

11

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

Note: Use from Engine SN 1040180.

$

$

Not available

12

Honda 30702-888-003

TERMINAL, PLUG

$9.49

$

Usually ships in 3-6 days

0

13

Honda 31100-883-040

FLYWHEEL

$104.99

$

Usually ships in 3-6 days

0

14

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

15

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
