GV200 N1A (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) CAMSHAFT Parts Diagram

Engine, Made in Japan

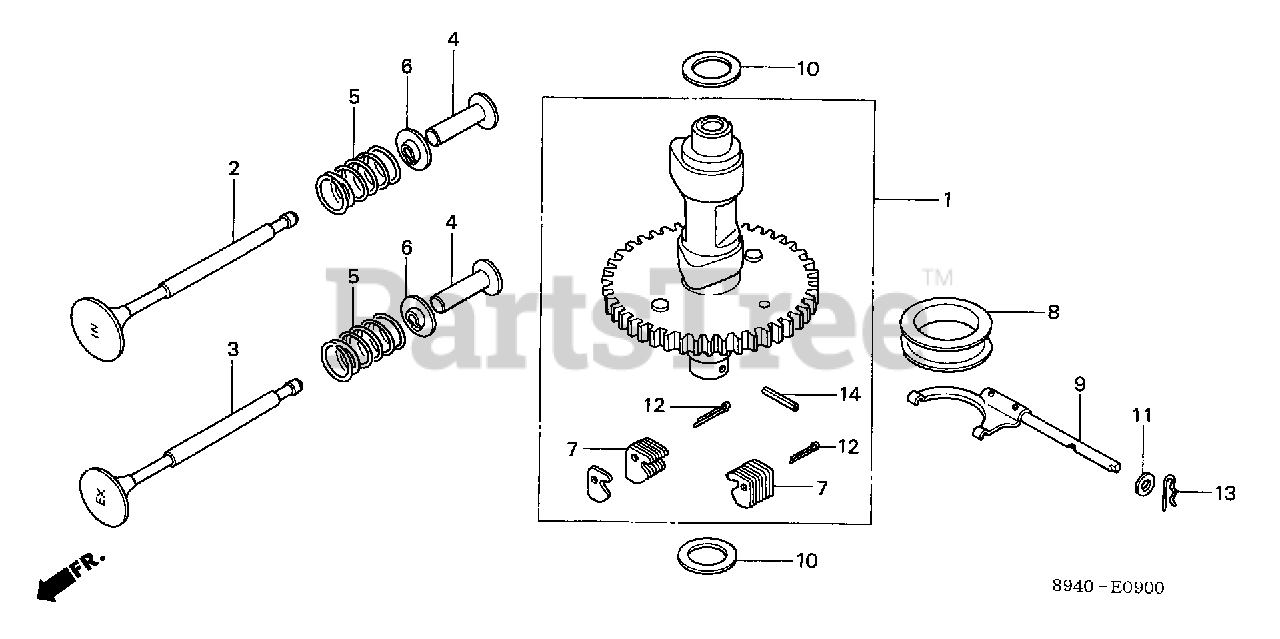

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-894-000

SEE PART DETAILS - SUP; CAMSHAFT ASSY.
(Superseded to 14110-894-010)

Note: Use up to Engine SN 1026844.

$

$

Not available

1

Honda 14110-894-010

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$

$

Not available

2

Honda 14711-883-000

VALVE, IN.

$35.99

$

Usually ships in 3-6 days

0

3

Honda 14721-883-000

VALVE, EX.

$40.99

$

Usually ships in 3-6 days

0

4

Honda 14736-883-010

LIFTER, VALVE (39.6MM)

$21.99

$

Usually ships in 3-6 days

0

4

Honda 14746-883-010

LIFTER, VALVE (39.9MM)

$21.99

$

Usually ships in 3-6 days

0

5

Honda 14751-883-000

SPRING, VALVE

$6.49

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

RETAINER, VALVE SPRING

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-883-010

SLIDER, GOVERNOR

$

$

Not available

9

Honda 16540-894-000

SHAFT, GOVERNOR

$15.99

$

Usually ships in 0 days

0

10

Honda 90452-883-000

WASHER, THRUST (18MM)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

Note: Use up to Engine SN 1046909.

$

$

Currently unavailable

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

13

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

14

Honda 94305-25162

PIN, SPRING (2.5X16)

$1.99

$

Usually ships in 3-6 days

0
