GV200 N10 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) RECOIL STARTER Parts Diagram

Engine, Made in Japan

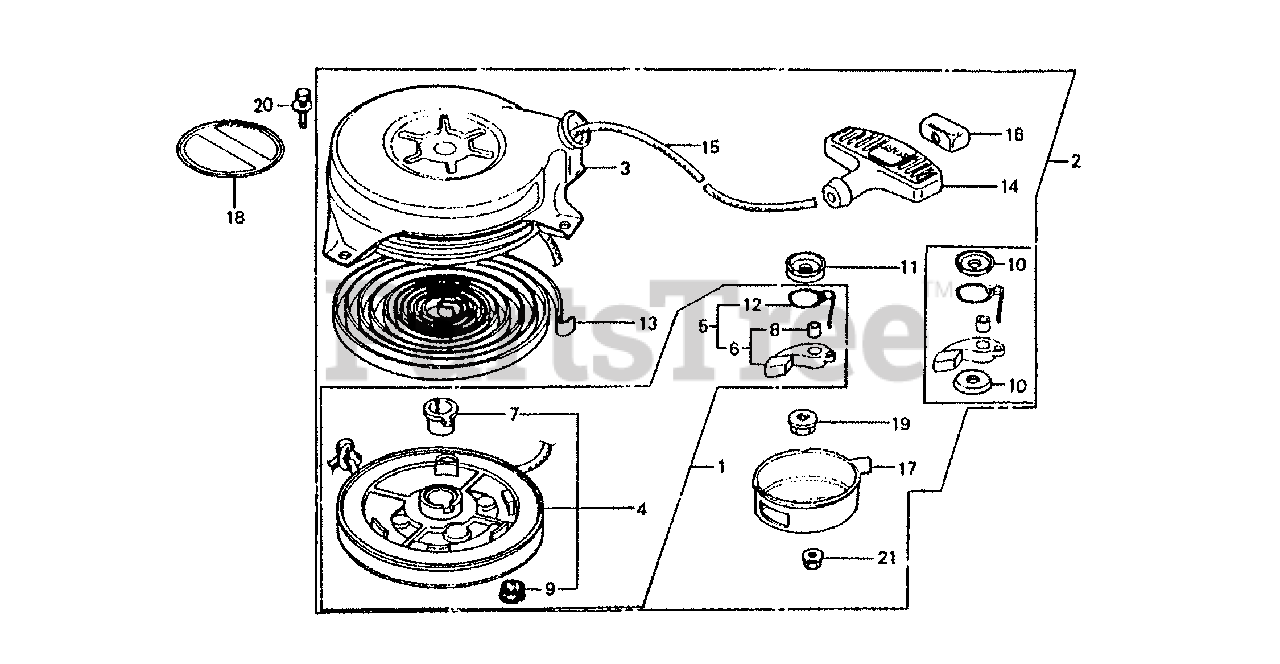

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28040-883-000

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1007525).

Note: Use up to Engine SN 1025504.

$

$

Not available

2

Honda 28400-883-040ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH67* (SPARKLE WHITE) (Honda Code 1044775).

$

$

Not available

2

Honda 28400-883-040ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED) (Honda Code 3488467).

Note: Use up to Engine SN 1025504.

$

$

Currently unavailable

3

Honda 28410-883-030H

SEE PART DETAILS - PRI; CASE, STARTER *R8* (BRIGHT RED) (Honda Code 1007558).

Note: Use up to Engine SN 1025504.

$

$

Not available

3

Honda 28410-883-030ZA

SEE PART DETAILS - PRI; CASE, STARTER *NH67* (SPARKLE WHITE) (Honda Code 1049063).

$

$

Not available

3

Honda 28410-883-030ZB

CASE, STARTER *R8* (BRIGHT RED) (Honda Code 3488475).

$96.99

$

Usually ships in 3-6 days

0

4

Honda 28040-883-000

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1007525).

Note: Use up to Engine SN 1025504.

$

$

Not available

4

Honda 28420-883-010

SEE PART DETAILS - SUP; REEL, STARTER (Honda Code 0724724).

Note: Use up to Engine SN 1025504.

$

$

Currently unavailable

4

Honda 28420-889-010

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1002179).

Note: Use from Engine SN 1025505.

$40.99

$

In Stock, only 1 left!

0

5

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT (Honda Code 0965657).

Note: Use up to Engine SN 1025505.

$18.99

$

In Stock, only 1 left!

0

6

Honda 28422-883-020

SEE PART DETAILS - PRI; RATCHET (Honda Code 1002187).

$9.49

$

Usually ships in 3-6 days

0

7

Honda 28424-883-000

SEE PART DETAILS - PRI; BOSS, REEL (Honda Code 1000124).

$6.99

$

Usually ships in 3-6 days

0

8

Honda 28425-883-300

BUSH, RATCHET (Honda Code 0636647).

Note: Use up to Engine SN 1025504.

$

$

Not available

8

Honda 28425-889-300

BUSH, RATCHET (Honda Code 0755801).

Note: Use from Engine SN 1025505.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 28427-883-300

BUSH, REEL STARTER (Honda Code 0743260).

$

$

Not available

10

Honda 28431-883-000

PLATE, FRICTION (Honda Code 0636654).

Note: Use up to Engine SN 1025504.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 28432-883-000

PLATE, FRICTION (Honda Code 1002195).

Note: Use from Engine SN 1025505.

$6.49

$

Usually ships in 3-6 days

0

12

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION (Honda Code 1002203).

$10.99

$

In Stock, only 1 left!

0

13

Honda 28442-883-000

SPRING, RETURN (Honda Code 0636670).

$23.99

$

Usually ships in 3-6 days

0

14

Honda 28461-883-000

GRIP, STARTER (Honda Code 0636688).

$12.99

$

In Stock, only 1 left!

0

15

Honda 28462-883-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55") (Honda Code 0636696).

$

$

Currently unavailable

16

Honda 28463-883-000

SUPPORT, GRIP (Honda Code 0636704).

$

$

Not available

17

Honda 28474-883-010

SEE PART DETAILS - PRI; COVER, REEL STARTER (Honda Code 1000140).
(Superseded to 28474-YA0-N40)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 87521-894-000

EMBLEM (HP) (Honda Code 0821389).

$

$

Not available

19

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

20

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.99

$

In Stock, Qty 20+

0

21

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0
