GV200 N10 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) OIL PAN Parts Diagram

Engine, Made in Japan

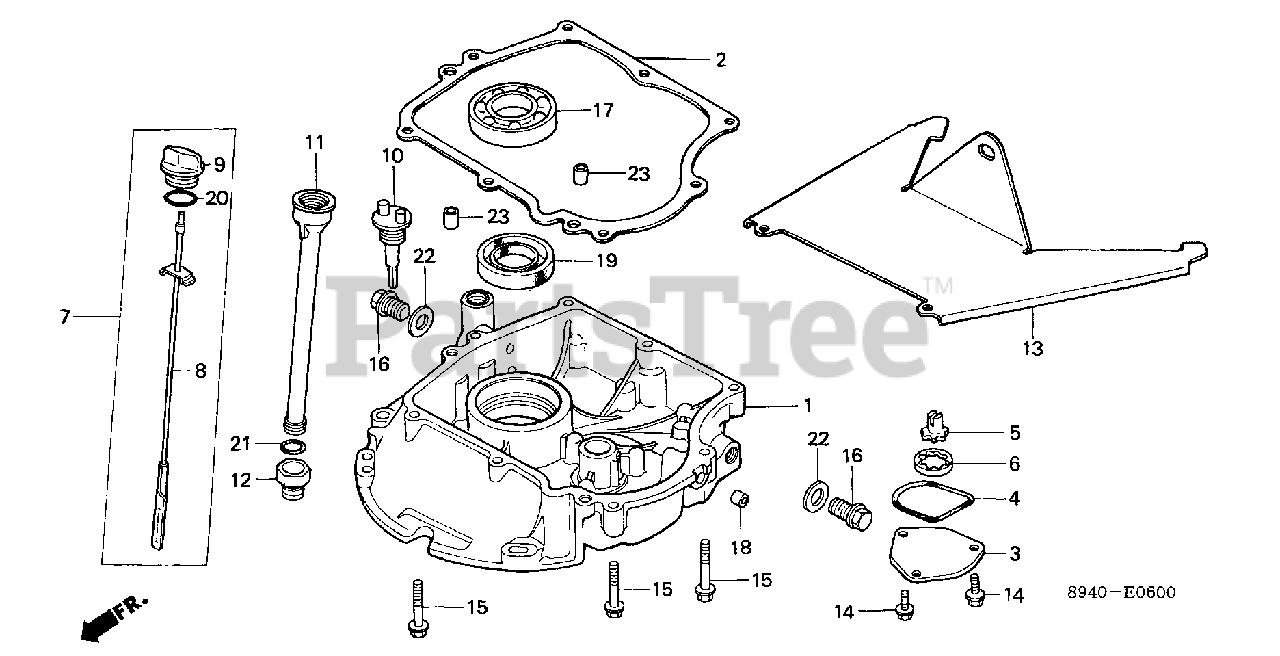

OIL PAN Parts Diagram

  • Title

1

Honda 11310-894-305

PAN, OIL

$

$

Not available

2

Honda 11381-894-306

GASKET, OIL PAN

$16.99

$

Usually ships in 3-6 days

0

3

Honda 15130-888-010

COVER, OIL PUMP

$11.99

$

Usually ships in 3-6 days

0

4

Honda 15131-888-010

O-RING, COVER

$4.99

$

Usually ships in 3-6 days

0

5

Honda 15330-888-000

ROTOR (INNER)

$

$

Currently unavailable

6

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER)

$

$

Not available

7

Honda 15600-ZE3-900

SEE PART DETAILS - PRI; GAUGE ASSY., LEVEL

$23.99

$

Usually ships in 3-6 days

0

7

Honda 15600-894-680

SEE PART DETAILS - SUP; GAUGE ASSY., OIL LEVEL

$23.99

$

Usually ships in 3-6 days

0

8

Honda 15610-894-680

DIPSTICK, OIL

$

$

Not available

9

Honda 15611-921-000

CAP, OIL

$14.99

$

Usually ships in 3-6 days

0

10

Honda 15620-888-010

CAP, OIL FILLER

$

$

Not available

11

Honda 15630-894-680

PIPE, OIL FILLER

$46.99

$

Usually ships in 3-6 days

0

12

Honda 15631-894-680

BOLT, JOINT

$

$

Currently unavailable

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

15

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

16

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

16

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$5.49

$

In Stock, Qty 11

0

17

Honda 91001-894-004

BEARING, RADIAL BALL

$23.99

$

Usually ships in 3-6 days

0

18

Honda 91231-891-003

OIL SEAL (6X11X4)

$3.49

$

In Stock, only 1 left!

0

19

Honda 91252-894-004

OIL SEAL (25.4X40X7)

$13.99

$

In Stock, only 1 left!

0

20

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 10

0

21

Honda 91301-MY9-003

SEE PART DETAILS - PRI; O-RING (15X2.5)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94301-08140

PIN A, DOWEL (8X14) (YAMADA)

$2.99

$

In Stock, Qty 8

0
