GV200 N10 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) FUEL TANK + FUEL VALVE Parts Diagram

Engine, Made in Japan

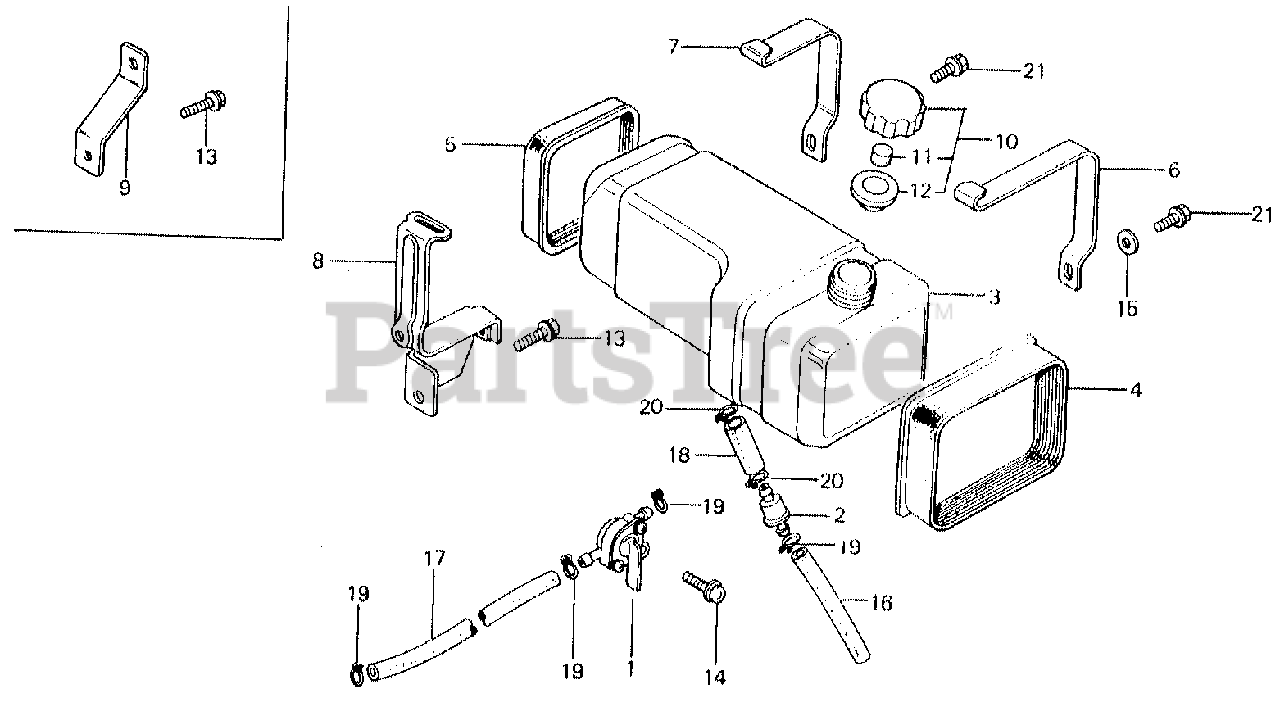

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-894-005

PETCOCK ASSY. (Honda Code 0821645).

$

$

Currently unavailable

2

Honda 16910-GB2-005

FILTER, FUEL (Honda Code 1420629).

Note: Use from Engine SN 1095066.

$17.99

$

In Stock, only 2 left!

0

2

Honda 16952-952-003

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 0743468).

Note: Use up to Engine SN 1095065.

$17.99

$

Usually ships in 3-6 days

0

3

Honda 17510-894-010

SEE PART DETAILS - PRI; TANK, FUEL (Honda Code 0878173).

$

$

Not available

4

Honda 17515-894-000

RUBBER A, FUEL TANK MOUNTING (Honda Code 0821660).

$

$

Currently unavailable

5

Honda 17516-894-000

RUBBER B, FUEL TANK MOUNTING (Honda Code 0821678).

$

$

Currently unavailable

6

Honda 17518-894-000

BAND A, TANK MOUNTING (Honda Code 0821686).

$

$

Not available

7

Honda 17519-894-000

BAND B, TANK MOUNTING (Honda Code 0821694).

$

$

Not available

8

Honda 17525-894-000

STAY B, TANK (Honda Code 0821702).

$33.99

$

Usually ships in 3-6 days

0

10

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP, FUEL TANK (Honda Code 1285402).

$

$

Not available

11

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

12

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 1420645).

$

$

Not available

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

14

Honda 93891-05012-08

SCREW-WASHER (5X12) (Honda Code 0485938).

$1.49

$

In Stock, only 2 left!

0

15

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

Note: Use from Engine SN 1024485.

$1.49

$

In Stock, Qty 16

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X100) (Honda Code 5137104).

Note: Use from Engine SN 1095066.

$54.99

$

In Stock, only 1 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X115) (Honda Code 5137104).

Note: Use up to Engine SN 1095065.

$54.99

$

In Stock, only 1 left!

0

17

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X195) (Honda Code 5137104).

$54.99

$

In Stock, only 1 left!

0

18

Honda 17512-894-000

TUBE, FUEL (Honda Code 1437151).

Note: Use from Engine SN 1095066.

$

$

Currently unavailable

18

Honda 95001-55008-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (5.5X8000) (5.5X40) (Honda Code 4260352).

Note: Use up to Engine SN 1095065.

$124.99

$

Usually ships in 3-6 days

0

19

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

20

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

In Stock, Qty 16

0

21

Honda 95700-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0487025).

$

$

Not available

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
