GV200 N10 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) FLYWHEEL + C.D.I. UNIT Parts Diagram

Engine, Made in Japan

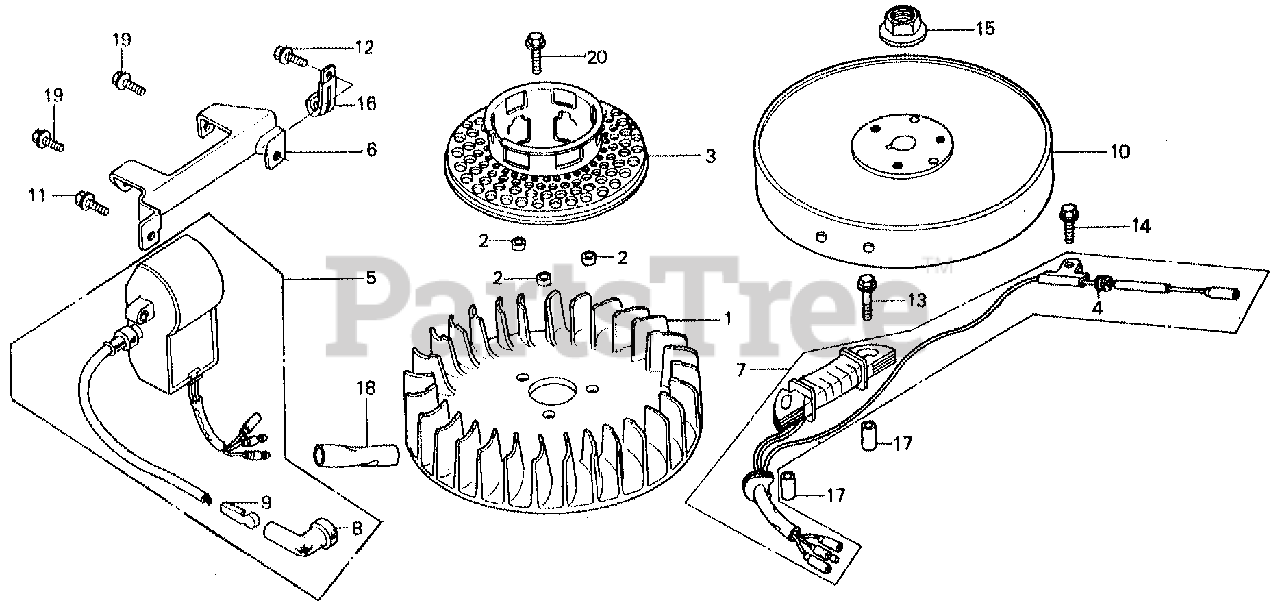

FLYWHEEL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 19511-883-010

SEE PART DETAILS - SUP; FAN, COOLING (Honda Code 0635854).

$

$

Currently unavailable

2

Honda 19512-883-000

COLLAR, FAN (Honda Code 0636589).

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 1010487).

$

$

Not available

4

Honda 30569-888-000

GROMMET, PRIMARY WIRE (Honda Code 0671446).

$

$

Currently unavailable

5

Honda 30580-952-752

SEE PART DETAILS - SUP; MODULE, IGNITION CONTROL (CDI) (Honda Code 0813444).

Note: Use up to Engine SN 1004188.

$

$

Currently unavailable

5

Honda 30580-952-753

SEE PART DETAILS - SUP; MODULE, IGNITION CONTROL (CDI) (Honda Code 0871947).

Note: Use from Engine SN 1004189.

$

$

Currently unavailable

5

Honda 30580-952-754

SEE PART DETAILS - PRI; MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE) (Honda Code 0927301).

$

$

Not available

6

Honda 30586-894-000

STAY, IGNITION CONTROL MODULE (Honda Code 0821165).

$7.99

$

Usually ships in 3-6 days

0

7

Honda 30590-894-682

SEE PART DETAILS - PRI; COIL ASSY., EXCITER (Honda Code 0943159).

$

$

Not available

8

Honda 30701-888-013

SEE PART DETAILS - SUP; CAP, IGNITION (SUMITOMO) (Honda Code 1024439).

$

$

Currently unavailable

8

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO) (Honda Code 4483301).

$

$

Not available

8

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO) (Honda Code 4483301).

Note: Use from Engine SN 1040180.

$

$

Not available

9

Honda 30702-888-003

TERMINAL, PLUG (Honda Code 0747782).

$9.49

$

Usually ships in 3-6 days

0

10

Honda 31100-883-751

FLYWHEEL (C.D.I.) (Honda Code 0747790).

$

$

Not available

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

12

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, only 3 left!

0

14

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 91405-671-000

CLIP, CABLE (Honda Code 0612549).

$12.99

$

Usually ships in 3-6 days

0

17

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 10

0

18

Honda 95003-50005-20

TUBE, VINYL (16X19X50) (Honda Code 0747816).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

Note: Use from Engine SN 1025310.

$1.99

$

In Stock, Qty 5

0

20

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0
