GV150 K1 A1D (GV150) - Honda Engine, Made in Japan (SN: GV150-3000001 - GV150-3294909) RECOIL STARTER Parts Diagram

Engine, Made in Japan

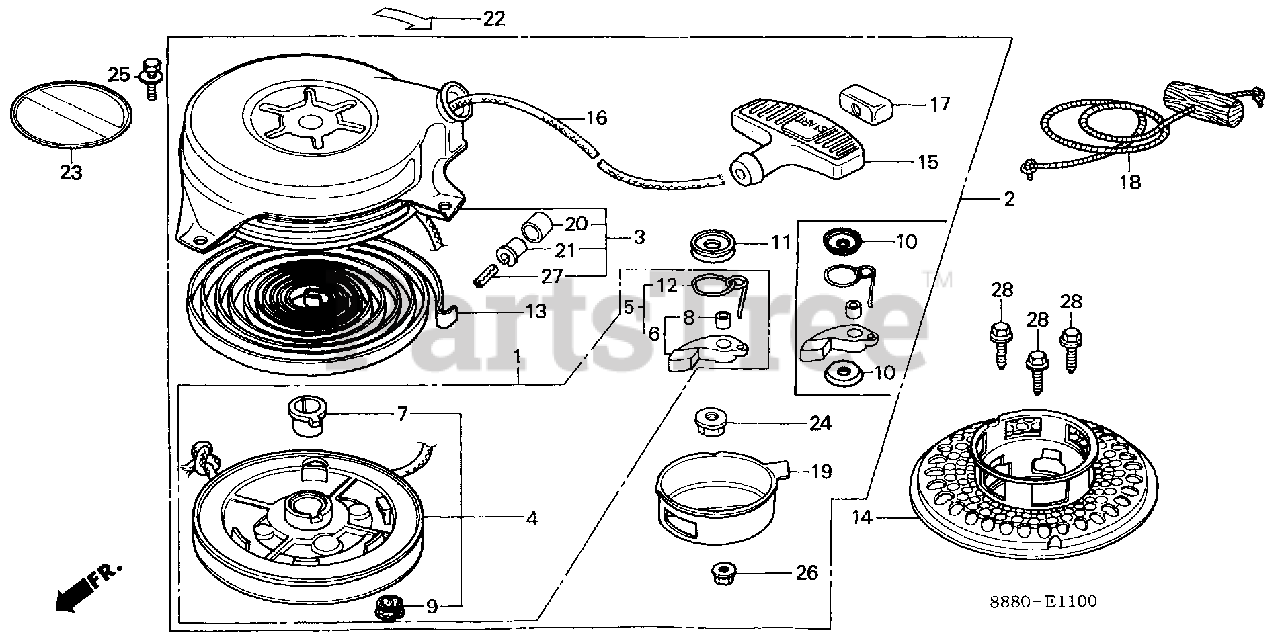

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28040-883-000

REEL KIT, STARTER

Note: Use up to Engine SN 3039753.

$

$

Not available

2

Honda 28400-888-030ZA

STARTER ASSY., RECOIL *NH67* (SPARKLE WHITE)

Note: Use up to Engine SN 3039753.

$

$

Currently unavailable

2

Honda 28400-888-040ZA

STARTER ASSY., RECOIL *NH67* (SPARKLE WHITE) (NOT AVAILABLE)

Note: Use from Engine SN 3039754.

$

$

Currently unavailable

3

Honda 28410-888-030ZA

CASE, STARTER *NH67* (SPARKLE WHITE)

$

$

Not available

4

Honda 28040-883-000

REEL KIT, STARTER

Note: Use up to Engine SN 3039753.

$

$

Not available

4

Honda 28420-889-010

REEL, STARTER

Note: Use from Engine SN 3039754.

$36.99

$

Usually ships in 3-6 days

0

5

Honda 28421-883-315

RATCHET KIT

Note: Use up to Engine SN 3039753.

$16.99

$

In Stock, only 1 left!

0

6

Honda 28422-883-020

RATCHET

$

$

Not available

7

Honda 28424-883-000

BOSS, REEL

$5.99

$

Usually ships in 3-6 days

0

8

Honda 28425-883-300

BUSH, RATCHET

Note: Use up to Engine SN 3039753.

$

$

Not available

8

Honda 28425-889-300

BUSH, RATCHET

Note: Use from Engine SN 3039754.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28427-883-300

BUSH, REEL STARTER

$5.99

$

Usually ships in 3-6 days

0

10

Honda 28431-883-000

PLATE, FRICTION

Note: Use up to Engine SN 3039753.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 28432-883-000

PLATE, FRICTION

Note: Use from Engine SN 3039754.

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28441-883-020

SPRING, FRICTION

$9.99

$

In Stock, only 1 left!

0

13

Honda 28442-883-000

SPRING, RETURN

$21.99

$

Usually ships in 3-6 days

0

14

Honda 28451-887-030

PULLEY, STARTER

$30.99

$

Usually ships in 3-6 days

0

15

Honda 28461-883-000

GRIP, STARTER

$11.99

$

In Stock, only 1 left!

0

16

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER

$12.99

$

In Stock, only 1 left!

0

17

Honda 28463-883-000

SUPPORT, GRIP

$3.99

$

Usually ships in 3-6 days

0

18

Honda 28470-816-000

ROPE, STARTER

$9.99

$

In Stock, only 1 left!

0

19

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, STARTER REEL
(Superseded to 28474-YA0-N40)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 28476-888-300

ROLLER, GUIDE

$

$

Currently unavailable

21

Honda 28477-888-300

BUSH, ROLLER

$

$

Not available

23

Honda 87521-888-010

EMBLEM

$

$

Not available

24

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 2 left!

0

26

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

27

Honda 94305-30182

PIN, SPRING (3X18)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
