GV150 K1 A1D (GV150) - Honda Engine, Made in Japan (SN: GV150-3000001 - GV150-3294909) RECOIL STARTER Parts Diagram

Engine, Made in Japan

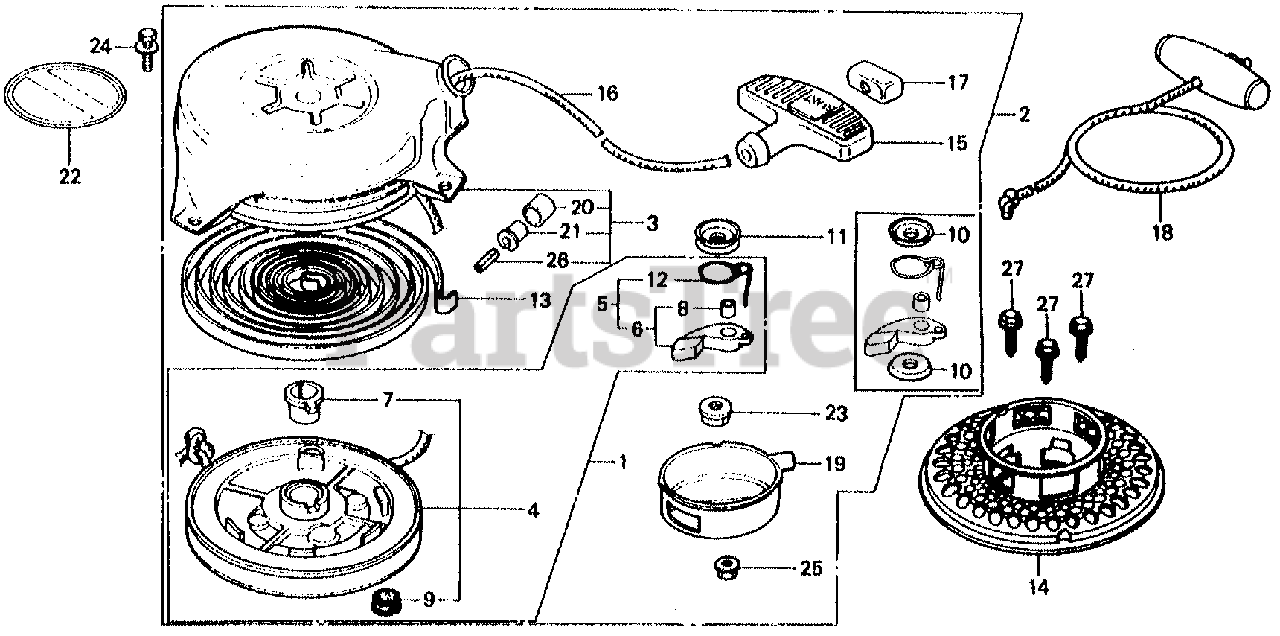

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28040-883-000

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1007525).

Note: Use up to Engine SN 3039753.

$

$

Not available

2

Honda 28400-888-040ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH67* (SPARKLE WHITE) (Honda Code 1044783).

$

$

Currently unavailable

3

Honda 28410-888-030ZA

SEE PART DETAILS - PRI; CASE, STARTER *NH67* (Honda Code 1044809). (SPARKLE WHITE)

$

$

Not available

4

Honda 28040-883-000

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1007525).

Note: Use up to Engine SN 3039753.

$

$

Not available

4

Honda 28420-883-010

SEE PART DETAILS - SUP; REEL, STARTER (Honda Code 0724724).

Note: Use up to Engine SN 3039753.

$

$

Currently unavailable

4

Honda 28420-889-010

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1002179).

Note: Use from Engine SN 3039754.

$36.99

$

In Stock, only 1 left!

0

5

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT (Honda Code 0965657).

Note: Use up to Engine SN 3039753.

$16.99

$

In Stock, only 1 left!

0

6

Honda 28422-883-020

SEE PART DETAILS - PRI; RATCHET (Honda Code 1002187).

$

$

Not available

7

Honda 28424-883-000

SEE PART DETAILS - PRI; BOSS, REEL (Honda Code 1000124).

$5.99

$

Usually ships in 3-6 days

0

8

Honda 28425-883-300

BUSH, RATCHET (Honda Code 0636647).

Note: Use up to Engine SN 3039753.

$

$

Not available

8

Honda 28425-889-300

BUSH, RATCHET (Honda Code 0755801).

Note: Use from Engine SN 3039754.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28427-883-300

BUSH, REEL STARTER (Honda Code 0743260).

$5.99

$

Usually ships in 3-6 days

0

10

Honda 28431-883-000

PLATE, FRICTION (Honda Code 0636654).

Note: Use up to Engine SN 3039753.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 28432-883-000

PLATE, FRICTION (Honda Code 1002195).

Note: Use from Engine SN 3039754.

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION (Honda Code 1002203).

$9.99

$

In Stock, only 1 left!

0

13

Honda 28442-883-000

SPRING, RETURN (Honda Code 0636670).

$21.99

$

In Stock, only 1 left!

0

14

Honda 28451-887-030

SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 1007566).

$30.99

$

Usually ships in 3-6 days

0

15

Honda 28461-883-000

GRIP, STARTER (Honda Code 0636688).

$11.99

$

In Stock, only 1 left!

0

16

Honda 28462-888-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55") (Honda Code 0671404).
(Superseded to 28462-ZH8-003)

$12.99

$

In Stock, only 2 left!

0

17

Honda 28463-883-000

SUPPORT, GRIP (Honda Code 0636704).

$3.99

$

Usually ships in 3-6 days

0

18

Honda 28470-816-000

ROPE, STARTER (#5X55") (Honda Code 0285569).

Note: (Optional).

$9.99

$

In Stock, only 1 left!

0

19

Honda 28474-883-010

SEE PART DETAILS - PRI; COVER, REEL STARTER (Honda Code 1000140).
(Superseded to 28474-YA0-N40)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 28476-888-300

ROLLER, GUIDE (Honda Code 0747832).

$

$

Currently unavailable

21

Honda 28477-888-300

BUSH, ROLLER (Honda Code 0747840).

$

$

Not available

22

Honda 87521-888-010

SEE PART DETAILS - PRI; EMBLEM (Honda Code 0792663).

$

$

Not available

23

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

24

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

Usually ships in 3-6 days

0

25

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

26

Honda 94305-30182

PIN, SPRING (3X18) (Honda Code 0747857).

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0
