GV150 K1 A1D (GV150) - Honda Engine, Made in Japan (SN: GV150-3000001 - GV150-3294909) FUEL TANK + FUEL VALVE Parts Diagram

Engine, Made in Japan

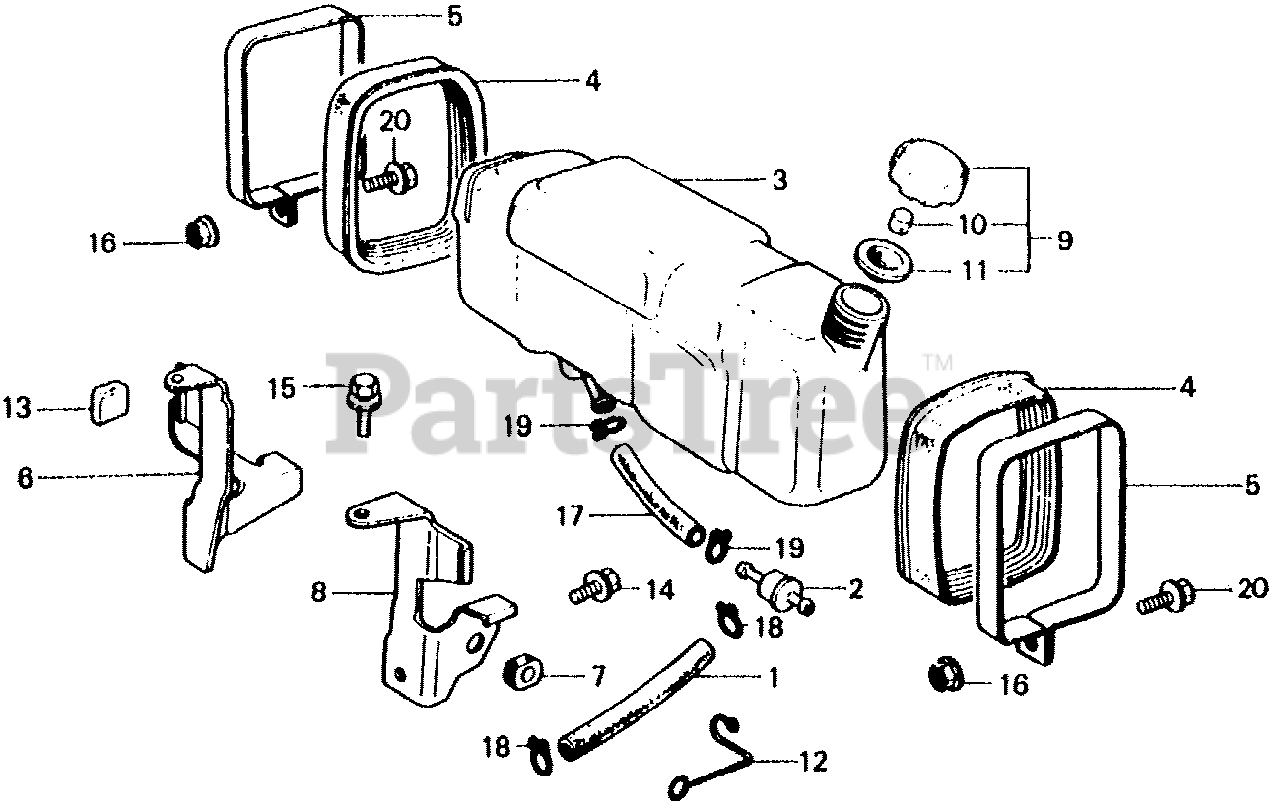

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X120) (Honda Code 5137104).

Note: Use up to Engine SN 3176994.

$54.99

$

In Stock, only 4 left!

0

1

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X115)

Note: Use from Engine SN 3176995.

$54.99

$

In Stock, only 4 left!

0

2

Honda 16952-952-003

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 0743468).

Note: Use up to Engine SN 3176994.

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16910-GB2-005

FILTER, FUEL (Honda Code 1420629).

Note: Use from Engine SN 3176995.

$16.99

$

In Stock, only 2 left!

0

3

Honda 17500-879-670ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK) (Honda Code 7349384).

$

$

Not available

4

Honda 17515-879-670

RUBBER, TANK SEAT (Honda Code 0484634).

$

$

Not available

5

Honda 17518-879-670

BAND, FUEL TANK (Honda Code 0484642).

$24.99

$

Usually ships in 3-6 days

0

6

Honda 17521-888-670

STAY A, TANK (Honda Code 0672170).

$30.99

$

Usually ships in 3-6 days

0

7

Honda 17523-888-670

GROMMET, FUEL TUBE (Honda Code 0672188).

$

$

Not available

8

Honda 17525-888-671

STAY B, TANK (Honda Code 0672196).

$30.99

$

Usually ships in 3-6 days

0

9

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP, FUEL TANK (Honda Code 1285402).

$

$

Not available

10

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

11

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 1420645).

$

$

Not available

12

Honda 30564-883-630

CLAMP, IGNITION WIRE (Honda Code 0671420).

$

$

Not available

13

Honda 36058-657-003

RUBBER, CUSHION (Honda Code 0595223).

$

$

Currently unavailable

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

15

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10) (Honda Code 2488443).

$2.49

$

In Stock, Qty 5

0

15

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10) (Honda Code 0636944).
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95001-55008-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (5.5X8000) (5.5X110) (Honda Code 4260352).

Note: Use up to Engine SN 3176994.

$124.99

$

Usually ships in 3-6 days

0

17

Honda 17512-888-000

TUBE, FUEL (Honda Code 1437318).

Note: Use from Engine SN 3176995.

$9.99

$

Usually ships in 0 days

0

18

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

19

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

In Stock, Qty 20+

0

20

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

20

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0
